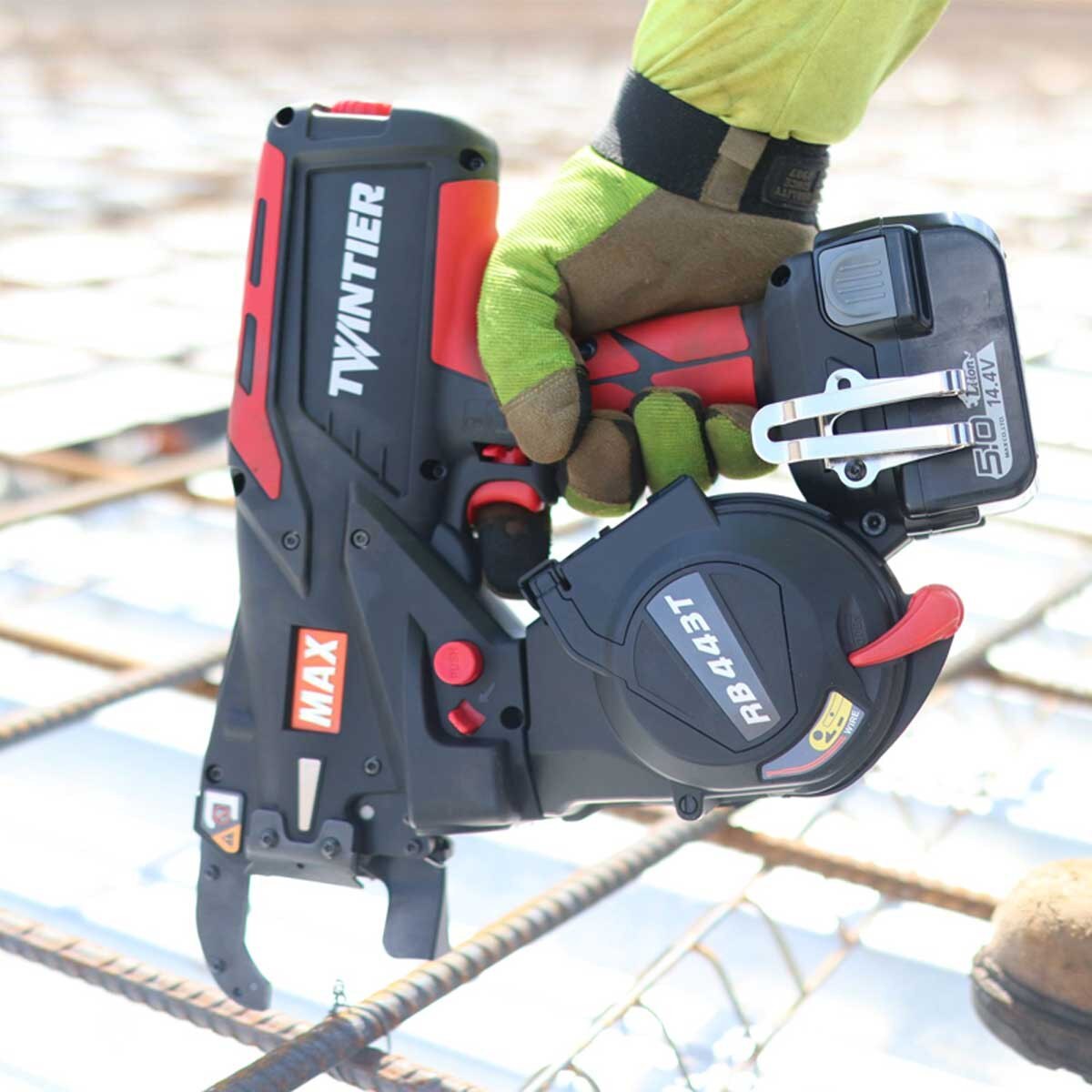

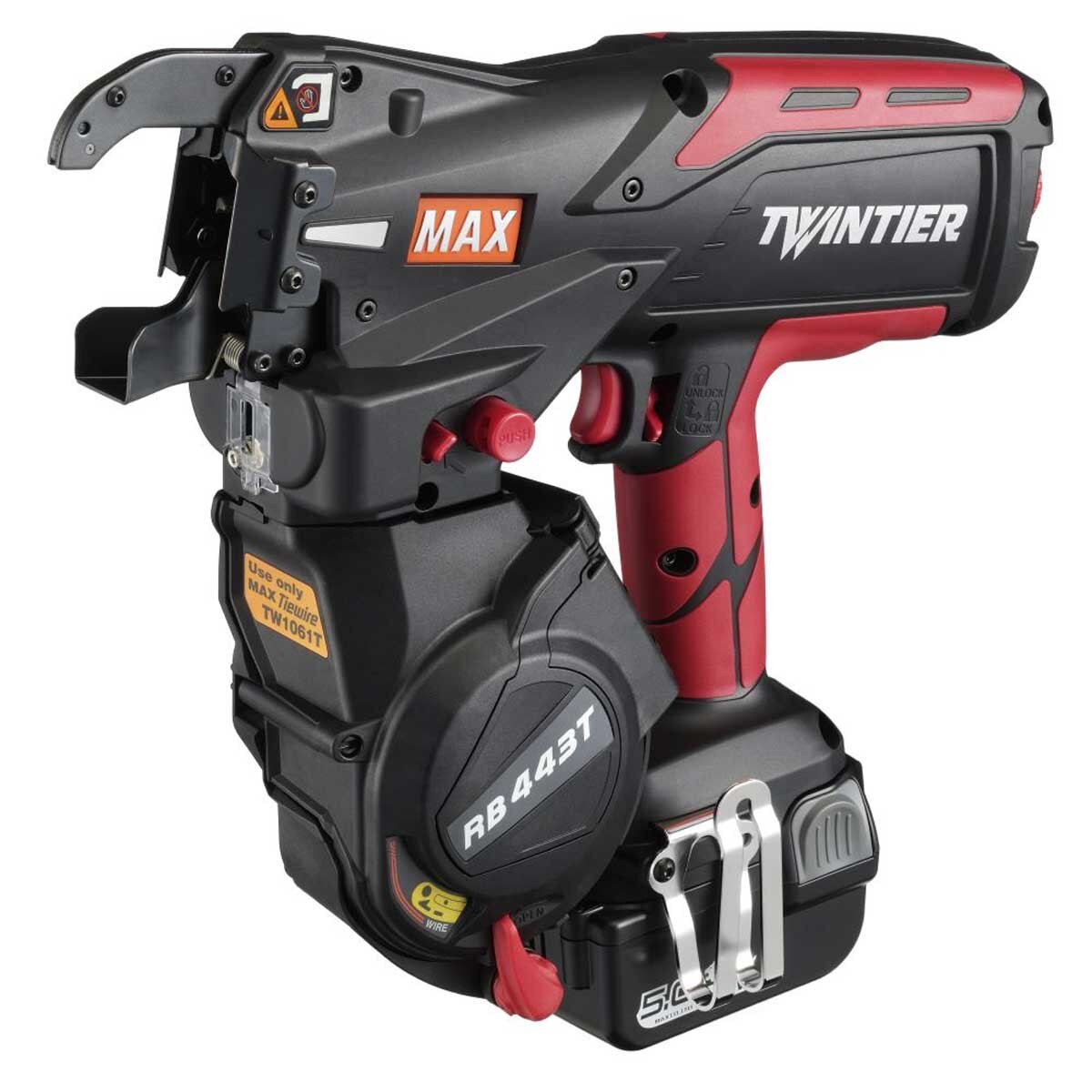

MAX RB443T TwinTier Rebar Tying Tool up to #7 x #7 with 19ga wire

MAX RB443T TwinTier® Rebar Tying Tool up to #7 x #7 with 19ga wire

The TWINTIER® RB443T is the fastest solution on the market for tying wire mesh x wire mesh to #7 on #7 rebar combinations. TWINTIER® technology allows the RB443T to tie 5,000 ties per charge, while delivering just the right amount of wire for greater productivity and cost savings. Compared to hand tying this tool can reduce the risk of musculoskeletal injuries.

• Precast Plants
• Road and Bridge
• Tilt-Up
• Foundations
• Electrical Conduit
• Swimming Pools

• FASTEST TYING SPEED *NEW*
  The TwinTier’s Dual Wire Feeding Mechanism doubles the tying speed. The enhanced tying mechanism for the RB443T allows the tool to complete a tie in approximately less than ½ second, increasing productivity.


• COST SAVING
  Compared to conventional rebar tying solutions the TwinTier’s Wire Pull Back Mechanism dispenses the precise amount of wire needed to form a tie, reducing wire usage and cutting production cost.


• SHORT TIE HEIGHT
  The TwinTier’s “Wire Bending Mechanism” produces a shorter tie height which requires less concrete to cover a wire tie.


• QUICK AND EASY WIRE LOADING *NEW*
  Easily load the dual wire with the new wire loading assist mechanism.


• EASY HANDLING
  A slim arm fits easily into tight spaces and marker helps see where you are tying.


• BUILT TO LAST
  An enclosed magazine protects tie wire and internal mechanisms from debris, providing greater durability.



• WEIGHT: 5.6 lbs
• DIMENSIONS: 11 1/2"(H) x 4 3/4"(W) x 13"(L)
• MINIMUM TIES PER COIL: 145
• MAXIMUM TIES PER COIL: 265
• APPLICABLE WIRE PRODUCT/GA: TW1061T / 19Ga, TW1061T-PC / 19Ga, TW1061T-EG / 19Ga, TW1061T-S / 19Ga
• TIES PER CHARGE: 5000
• TIE SPEED: less than 1/2 sec
• BATTERY CHARGE TIME: Approx. 80 minutes full charge (approx. 60 minutes 80%)
• BATTERY: JPL91450A
• CHARGER: JC925A

• Parts List
• RB443T Brochure
