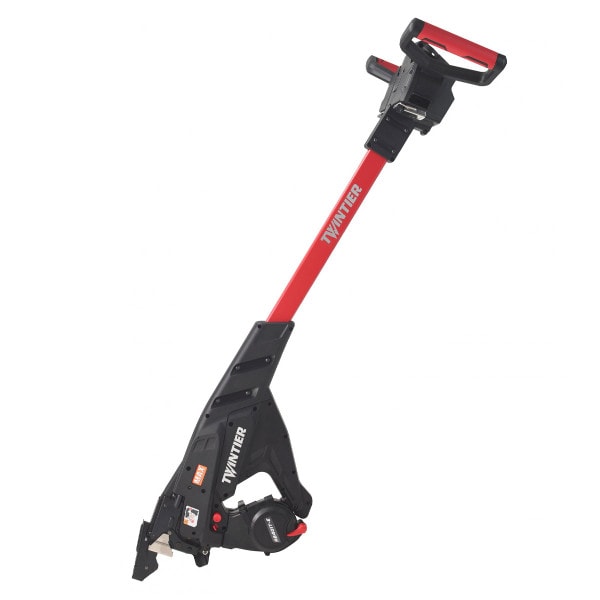

MAX RB401T-E TwinTier Stand Up Rebar Tying Tool up to #6 x # 6 with 19ga wire
Details
MAX RB401T-E TwinTier® Stand Up Rebar Tying Tool up to #6 x # 6 with 19ga wire
Applications
- Road and Bridge
- Foundations
- Tilt-Up
- Precast Plants
- Water retaining Structures
- Commercial Buildings
- Water Treatment Tanks
FEATURES
- The RB401T-E is an ergonomic solution for backbreaking slab work.
- Triggerless technology (Pat. Pending) allows the tool to instantly tie when the contact switch is engaged.
- The TwinTier’s Dual Wire Feeding Mechanism doubles the tying speed, completing a tie in approximately ½ second, increasing productivity.
- Compared to conventional rebar tying solutions the TwinTier’s Wire Pull Back Mechanism dispenses the precise amount of wire needed to form a tie, reducing wire usage and cutting production cost.
- The TwinTier’s “Wire Bending Mechanism” (Patent Pending) produces a shorter tie height which requires less concrete to cover a wire tie.
- Users can adjust the tool’s handles to 2 positions, to find the most comfortable fit for their height.
SPECIFICATIONS
- WEIGHT: 10.2 lbs
- DIMENSIONS: 12-3/4"(H) x 16"(W) x 43-3/8"(L)
- MINIMUM TIES PER COIL: 155
- MAXIMUM TIES PER COIL: 260
- APPLICABLE WIRE PRODUCT/GA: TW1061T / 19Ga, TW1061T-PC / 19Ga, TW1061T-EG / 19Ga, TW1061T-S / 19Ga, TW1061TUSA / 19Ga
- APPLICABLE REBAR SIZE: #3 x #3 - #6 x #6
- TIES PER CHARGE: 4600
- TIE SPEED: Approx. 1/2 sec
- BATTERY CHARGE TIME: Approx. 80 minutes full charge (approx. 60 minutes 80%)
- BATTERY: JPL91450A
- CHARGER: JC925A
