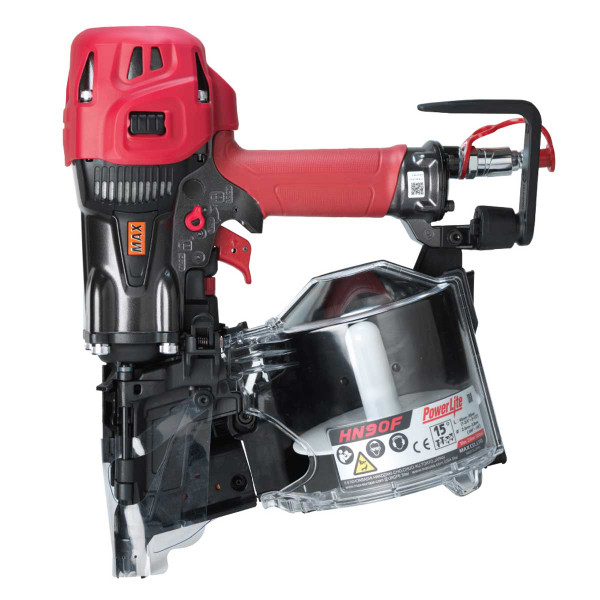

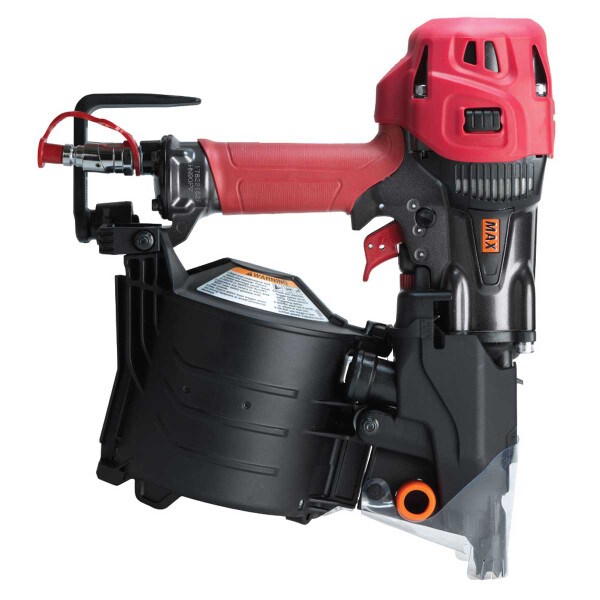

MAX HN90F PowerLite Coil Framing Nailer, 1-3/4” to 3-1/2"

MAX HN90F PowerLite® High Pressure Framing Coil Nailer up to 3-1/2"

The Powerlite® HN90F can be used for framing, sheathing, decking, furring, siding, subflooring, as well as crate and box assembly. MAX has been making durable and reliable industrial tools for 80 years. MAX products are engineered to perform on our professional contractors jobsites. Backed by the power of a 500 PSI Powerlite® compressor the HN90F can easily drive nails through the toughest wood such as LSL or LVL engineered wood. At only 5.7 lbs. HN90F is approximately 40% lighter than most competitive tools without sacrificing driving power, which can reduce user fatigue. MAX products are developed in Japan and manufactured in our ISO9001 and ISO14001 certified factories. Designed with a lightweight body and engineered for heavy duty applications, PowerLite® tools are built to shoot through steel, concrete and engineered woods.

• Framing
• Sheathing
• Decking
• Subflooring
• Furring

• LIGHTWEIGHT FOR EASY OPERATION
  Lightweight- only 5.7 lbs. Approx. 40% lighter than most competitor's tools without sacrificing power or placing unnecessary strain on the body.

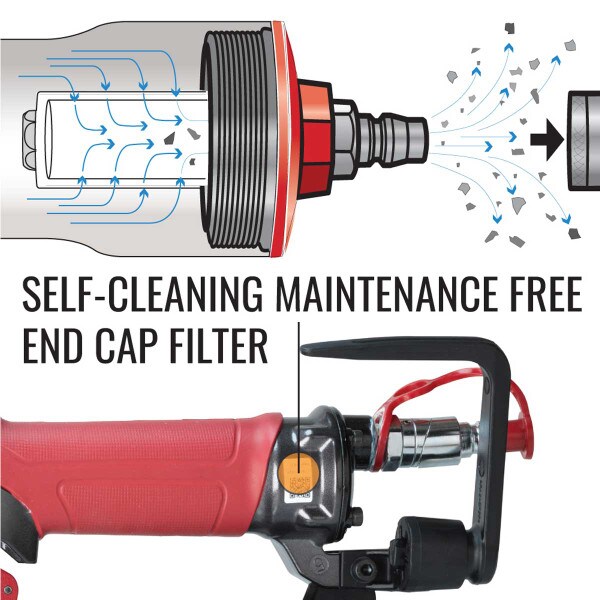

• SELF-CLEANING FILTER FOR RELIABLE OPERATIONS
  The patented, self-cleaning maintenance free end cap filter captures foreign substances before they can enter the tool and automatically ejects them when the air hose is disconnected.


• AVOID TRIP HAZARDS
  Tangle free swivel plug to alleviate the tangling of the air hose no matter what angle the tool is being held.


• ADVANCED MANEUVERABILITY
  Compact. Tool height is less than 13"; 12% shorter than conventional coil framing tools for easier handling.

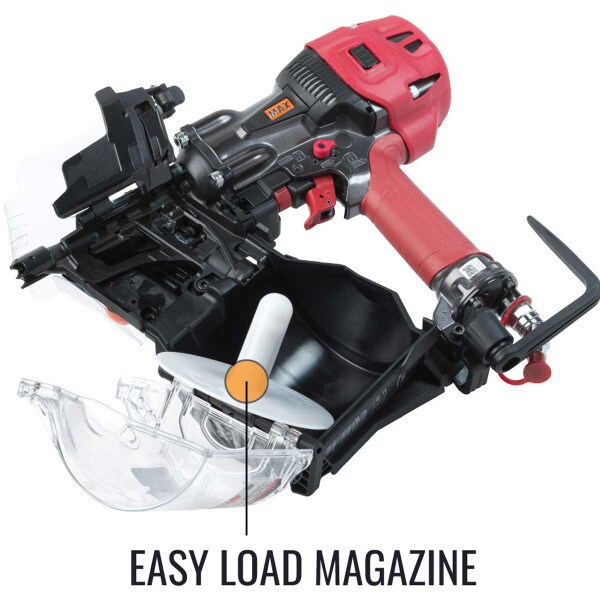

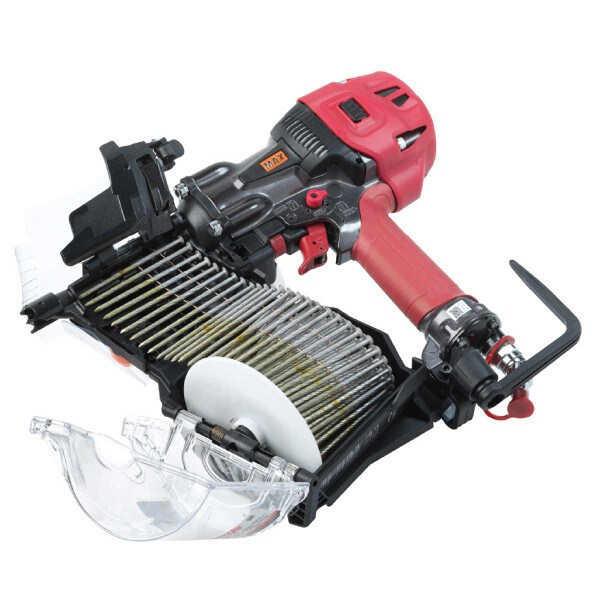

• LARGE MAGAZINE CAPACITY
  Holds up to 300 nails in a magazine means elimination of constant reloading and reduce fatigue while operating tool. Shoots up to a 3 1/2" x .148" nail.


• EXTREMELY POWERFUL
  Has enough power to drive nails through LSL.



• WEIGHT: 5.7 lbs
• DIMENSIONS: 13"(H) x 5"(W) x 11-3/4"(L)
• MINIMUM OPERATION PRESSURE: 170 PSI
• MAXIMUM OPERATION PRESSURE: 320 PSI
• AIR INLET SIZE: 7/16"
• MAGAZINE CAPACITY: 150 to 300
• DEPTH CONTROL: Yes
• JAM CLEARING: No

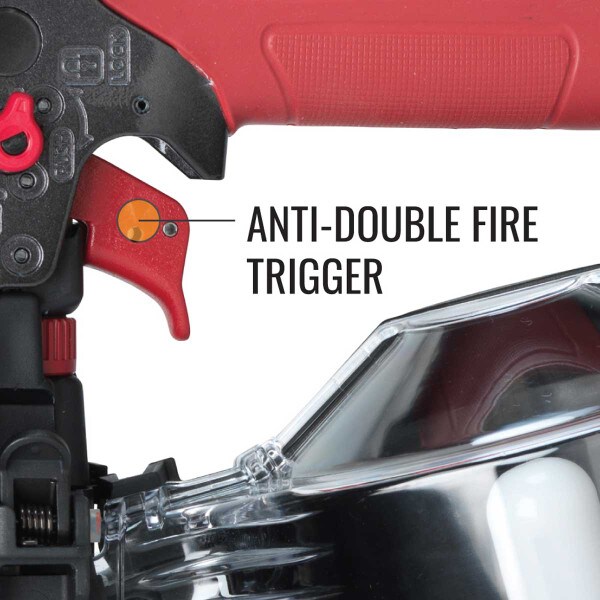

• TRIGGER TYPE: Anti-Double Fire Trigger
• AIR CONSUMPTION (FT3/CYCLE): 0.12
• ACCESSORIES: Safety glasses, Carry case

• COLLATION TYPE: Wire, Plastic
• NAIL GUN ANGLE: 15
• STRIP OR COIL: Coil
• COMPATIBLE FASTENER TYPES: 15 degree wire welded nails and plastic sheet collated nails
• MINIMUM FASTENER SIZE: 1-3/4"
• MAXIMUM FASTENER SIZE: 3-1/2"
• MINIMUM NAIL DIAMETER: .099"
• MAXIMUM NAIL DIAMETER: .148"
