#8-18 x 1-1/4" Phillips Modified Truss (R/W) Head Self-Drilling Screws Zinc CR3+ Plated 5,000ct | M85Z

(0)No Reviews yet
$169.95
SKU: M85Z
PACKAGING QTY: 5,000 count
Warning: California Residents.
Products may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. https://www.p65warnings.ca.gov/

Details

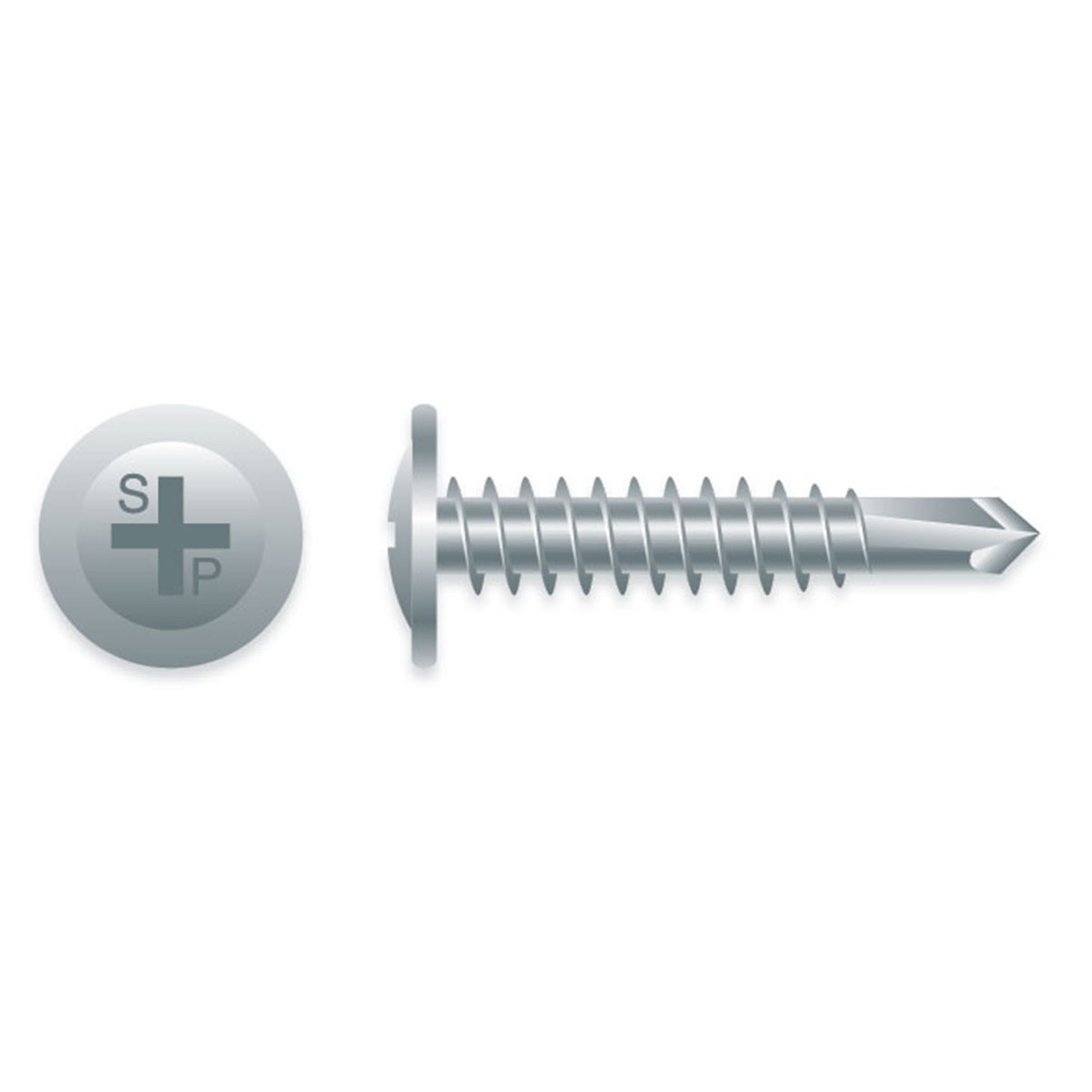

Strong-Point #8-18 x 1-1/4" Phillips Modified Truss (R/W) Head Self-Drilling Screws Zinc CR3+ Plated



Strong-Point #8-18 x 1-1/4" Phillips Modified Truss (R/W) Head Self-Drilling Screws are designed for attaching wire lath to metal studs or metal to metal. The modified truss head provides a wide bearing surface for improved holding power and reduced pull-through in lath and light-gauge steel applications. The #2 self-drilling point delivers fast, consistent drilling through steel thicknesses from .035" to .100". Zinc CR3+ plating provides corrosion protection by forming a protective barrier that helps prevent oxidation.


Features:
  • #2 self-drilling point for light gauge steel applications
  • Modified Truss (R/W) head provides a wide bearing surface
  • Designed for attaching wire lath to metal studs
  • Suitable for metal-to-metal fastening applications
  • Zinc CR3+ plated for corrosion resistance
  • Engineered for dependable drilling and fastening performance

Details:
  • Head Type: Modified Truss (R/W) Head
  • Head Size: 0.42" Diameter
  • Drive Type: Phillips
  • Thread Diameter: #8
  • Threads Per Inch: 18
  • Length: 1-1/4"
  • Point: #2 Self-Drilling
  • Quantity: 5,000 pcs
  • Weight: 34lb

Material Application:
  • Attaches wire lath to metal studs or metal to metal
  • Drill Capacity: .035" – .100"
  • Recommended Drill Speed: 2500 RPM

Specifications:
  • ICC-ES Evaluation Report: ESR-3528
  • Meets ASTM C1513 for cold-formed steel framing connections
  • Meets F.I.P.-1000.7 for torsional strength & drill speed
  • Meets SAE J78 for performance & dimensional specifications
  • Meets ASTM F1941 for corrosion resistance
  • Zinc CR3+ Plated

Zinc CR3+ plating provides a thin protective barrier that helps reduce oxidation of carbon steel. Corrosion resistance is limited and not suitable for ACQ Treated Lumber.

Coating Details:
  • Coating: Clear Zinc
  • Salt Spray: 24 hrs.
  • Kesternich: N/A
  • Application: Used indoors for dry, non-corrosive environments
  • Clear Zinc is an electrically applied plating that forms a protective barrier to prevent oxidation of the steel.
