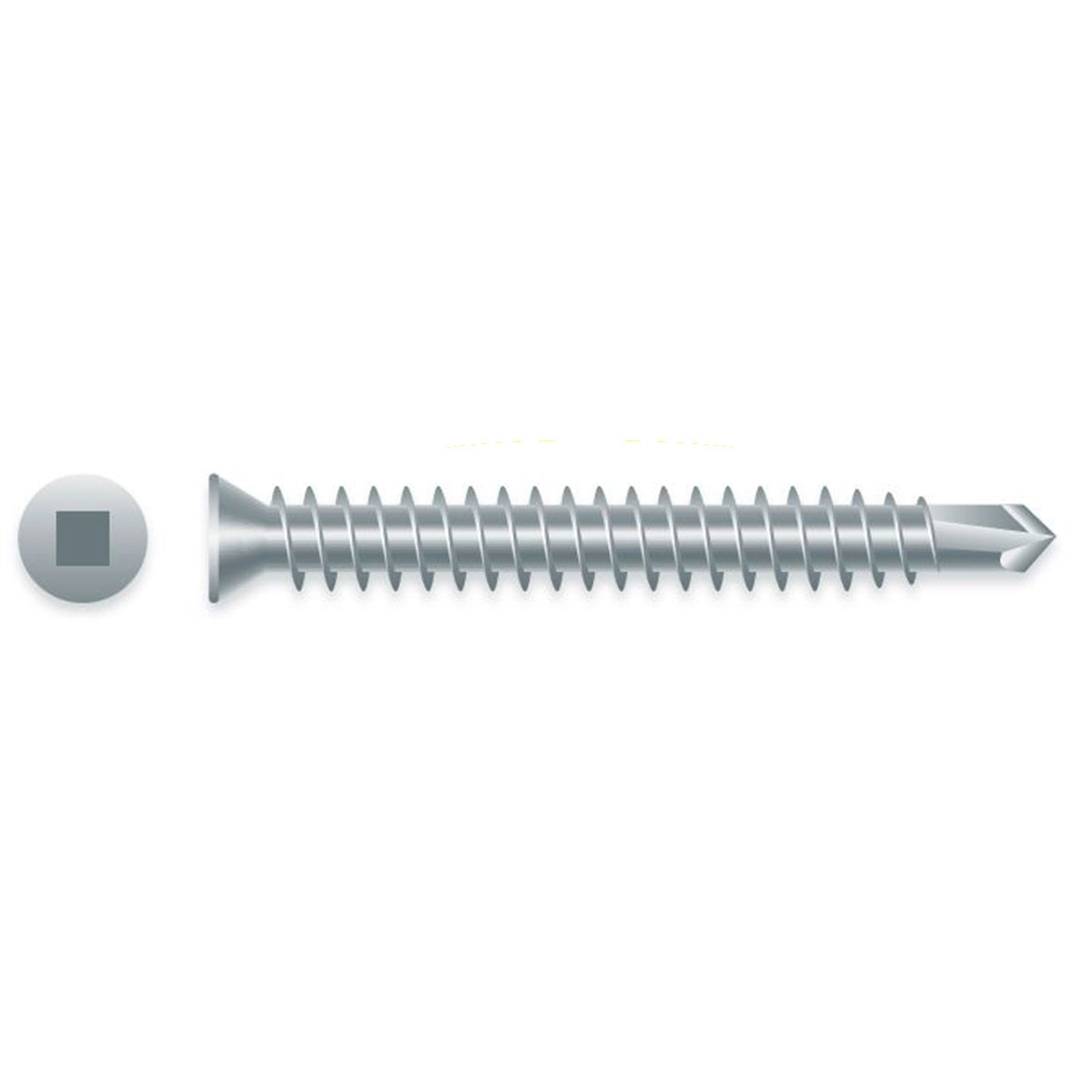

#6-20 x 1-5/8" Full Thread Square Drive Trim Head Self-Drilling Screws Zinc CR3+ Plated 5,000ct | T1QZF
Details
Strong-Point #6-20 x 1-5/8" Square Drive Trim Head Self-Drilling Screws Zinc CR3+ Plated Full Thread
Strong-Point #6-20 x 1-5/8" Square Drive Trim Head Self-Drilling Screws are designed for attaching wood to metal. The trim head provides a clean, low-profile finish while the square drive reduces cam-out and improves driver engagement during installation. The #2 self-drilling point delivers fast, consistent drilling through steel thicknesses from .035" to .090". Zinc CR3+ plating provides corrosion protection by forming a protective barrier that helps prevent oxidation.
Features:
- Full thread design
- #2 self-drilling point for light gauge steel applications
- Trim head design provides a clean finished appearance
- Square drive minimizes cam-out and improves torque transfer
- Designed for attaching wood to metal
- Zinc CR3+ plated for corrosion resistance
Details:
- Head Type: Trim Head
- Drive Type: Square
- Thread Diameter: #6
- Threads Per Inch: 20
- Length: 1-5/8"
- Thread Style: Full Thread
- Point: #2 Self-Drilling
- Quantity: 5,000 pcs
- Weight: 23lb
Material Application:
- Attaches wood to metal
- Drill Capacity: .035" – .090"
- Recommended Drill Speed: 2500 RPM
Specifications:
- Meets F.I.P.-1000.7 for torsional strength & drill speed
- Meets SAE J78 for performance & dimensional specifications
- Meets ASTM A510 for carbon steel manufacturing
- Meets ASTM F1941 for corrosion resistance
- Zinc CR3+ Plated
Zinc CR3+ plating provides a thin protective barrier that helps reduce oxidation of carbon steel. Corrosion resistance is limited and not suitable for ACQ Treated Lumber.
Coating Details:
- Coating: Clear Zinc
- Salt Spray: 24 hrs.
- Kesternich: N/A
- Application: Used indoors for dry, non-corrosive environments
- Clear Zinc is an electrically applied plating that forms a protective barrier to prevent oxidation of the steel.
