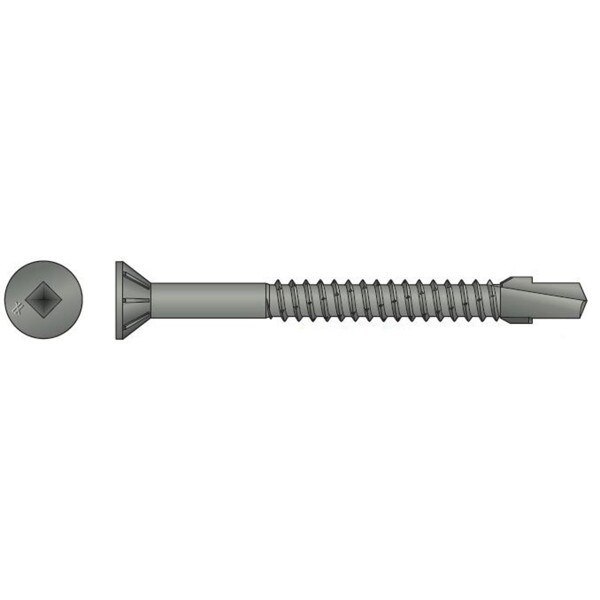

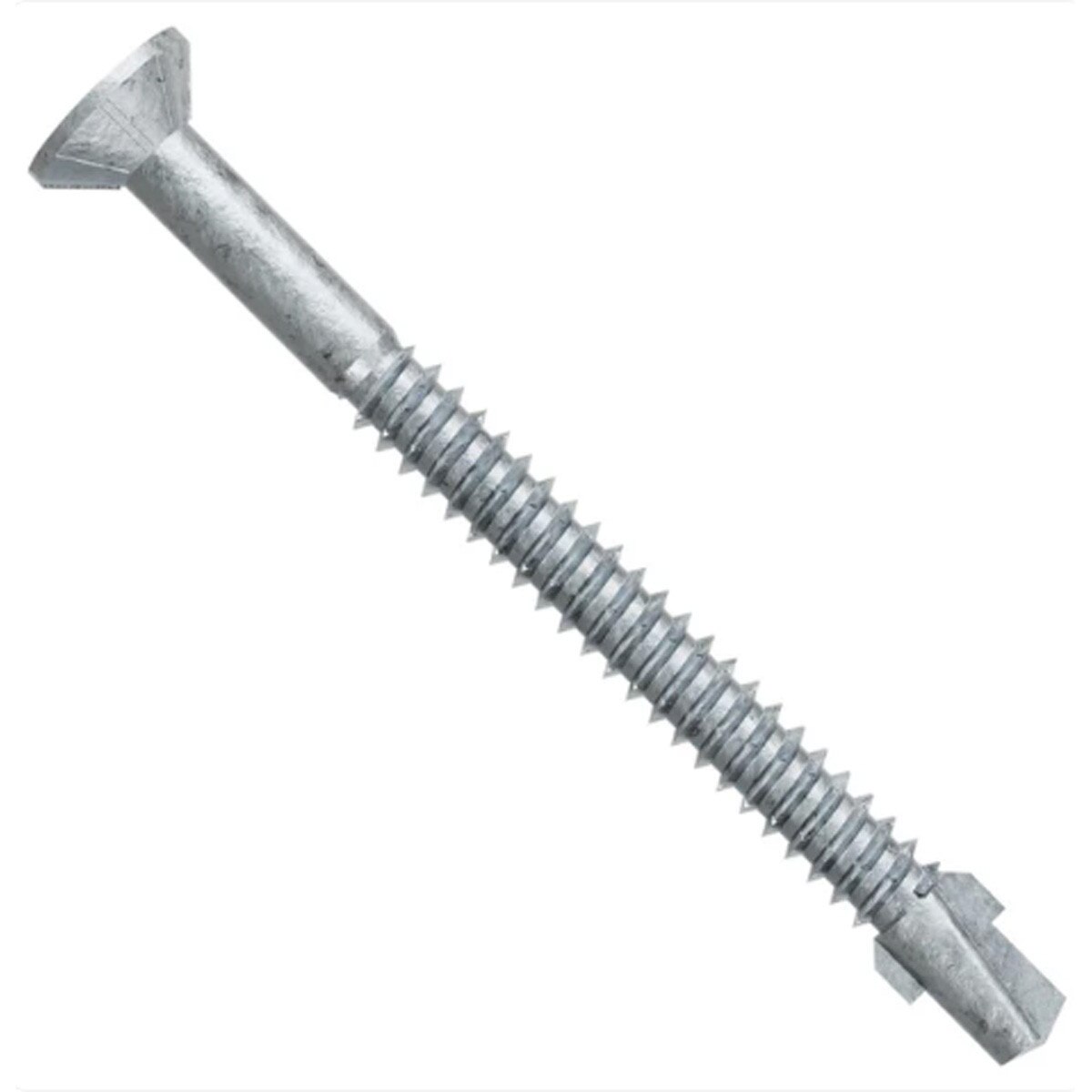

Quik Drive® Strong‑Drive® TB Wood‑to‑Steel Screws — TBG1475S

The Strong‑Drive® TB Wood‑to‑Steel Screw (TBG1475S) is engineered for high‑performance fastening of wood to hot‑rolled steel and is fully compatible with the Simpson Strong‑Tie® Quik Drive® auto‑feed screw driving system. This #14 diameter, 3 in. screw features a durable N2000® mechanically galvanized coating for enhanced corrosion resistance and extended‑reach structural fastening applications.

Product Specifications

• Coating/Material: N2000® Mechanically Galvanized
• Screw Size: #14
• Length: 3 in.
• Head Diameter: 0.460 in.
• Drive Type: T30 6‑Lobe
• Head Type: Flat Head
• Thread Type: Tapping Threads
• Threads Per Inch (TPI): 14
• Max. Grip Length: 2.236 in.¹
• Point Type: Drill Point with Wings
• Point Size: #4
• Compatible Tools: Quik Drive® PROHSD75, PROHSD75M
• Packaging Quantity: 750 screws per box

Key Features

• N2000® mechanically galvanized coating for improved corrosion resistance
• Flat head with nibs for smooth, controlled countersinking
• T30 6‑lobe drive reduces cam‑out and improves installation efficiency
• #4 drill point with wings for fast penetration into steel
• Tapping threads for strong engagement in wood‑to‑steel fastening

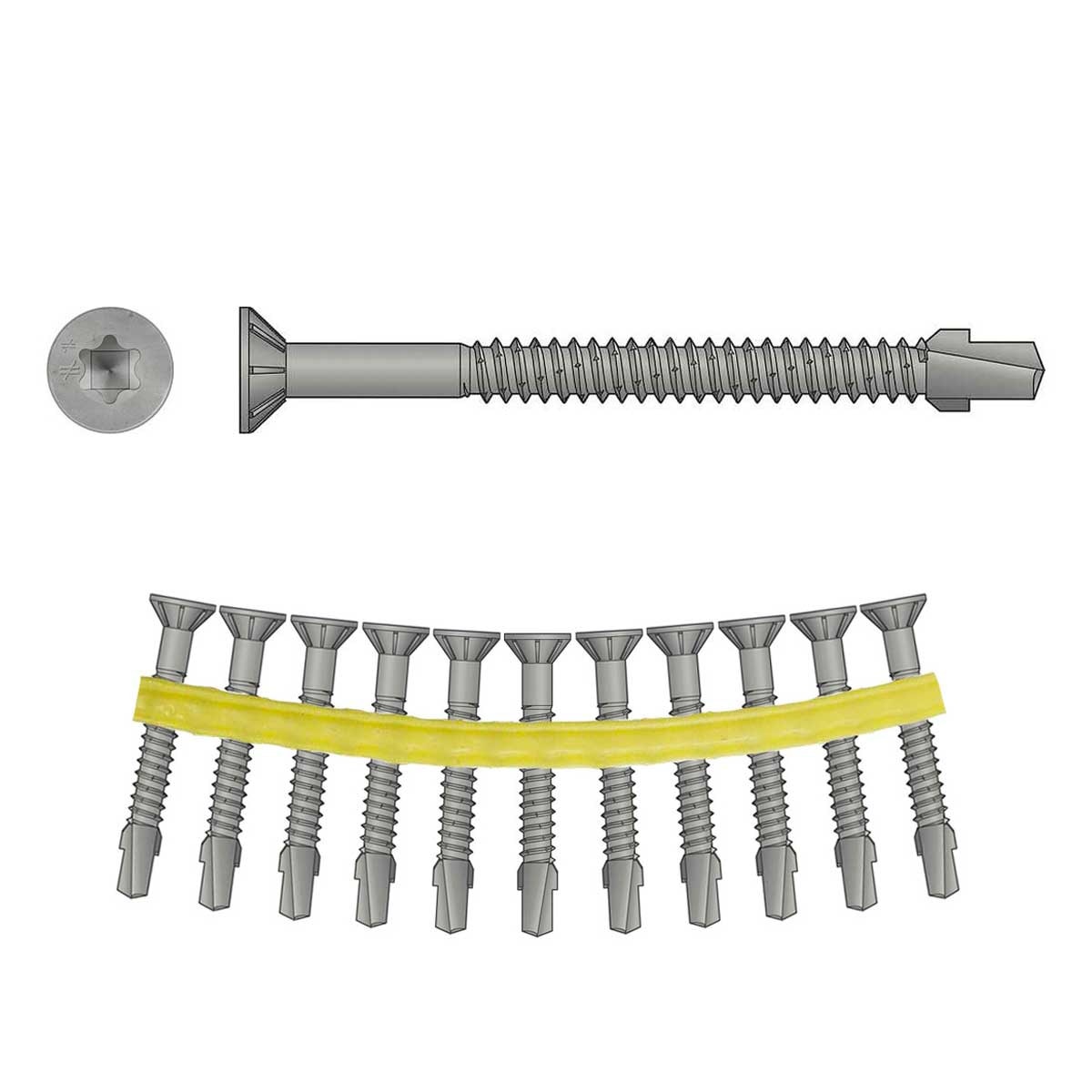

• Straight‑collated for smooth feeding in Quik Drive® systems

Compatible Quik Drive® Tools

• PROHSD75
• PROHSD75M

Recommended Applications

• Wood‑to‑steel fastening
• Structural wood‑to‑steel connections requiring extended screw length
• Applications requiring enhanced corrosion protection

Footnotes

1. Grip length includes side member, steel thickness, air gaps (if any), and allowance for three threads protruding through the steel.
