#10 x 3/4" Hi-HWH ZINC PLATED S/D SCREWS W/ REVERSE SERRATIONS 5lb | H1012HV
Details

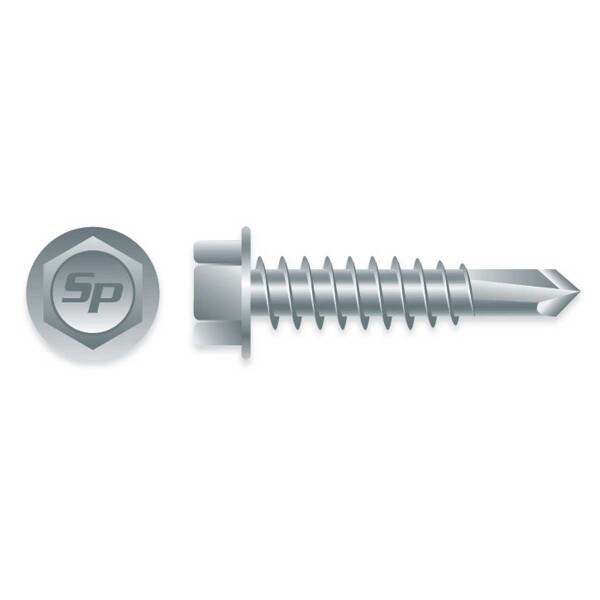

#10-16 x 3/4" Unslotted Indented Hi-Hex Washer Head w/ serrations, Zinc Plated
Reverse serrations are normally found under the head of the screw to aid in slowing down the final set of the screw to assist in possible stripping. The serrations also aid in locking the screw in the material providing protection from vibration.
Features:
- Self-Drilling for metal to metal applications
- Hi-Hex washer head provides excellent driving stability
- Precision cutting drill point delivers high performance with less physical effort.
- Low corrosion resistance
Details:
- Head Type: Unslotted Indented Hi-Hex Washer Head
- Head Height: .160-.178
- Drive Size: 5/16"
- Thread Diameter: #10
- Threads Per Inch: 16
- Length: 3/4"
- Point: #3 Self-Drilling
- Quantity: 700 pcs
- Weight: 5 pounds [approx.]
Material Application:
- Attaches metal to metal
- Drill Capacity: .035 - .176
- Drill Speed: 2500 RPM
Specifications:
- ICC-ES Evaluation Report: ESR-3528
- Meets ASTM C 1513 for cold-formed steel framing connections
- Meets F.I.P.-1000.7 for torsional strength & drill speed
- Meets SAE J78 for performance & dimensional specifications
- Meets ASTM A 510 for carbon steel manufacturing
- Meets ASTM F1941 for corrosion resistance
- Zinc Plated
Zinc plated is a plating that is applied electrically to fasteners that prevents oxidation of steel by forming a protective barrier. Not recommended for ACQ Treated Lumber.
