#10 x 2" PHILLIPS WAFER HEAD ZINC PLATED S/D SCREWS 2,000ct | W108
Details

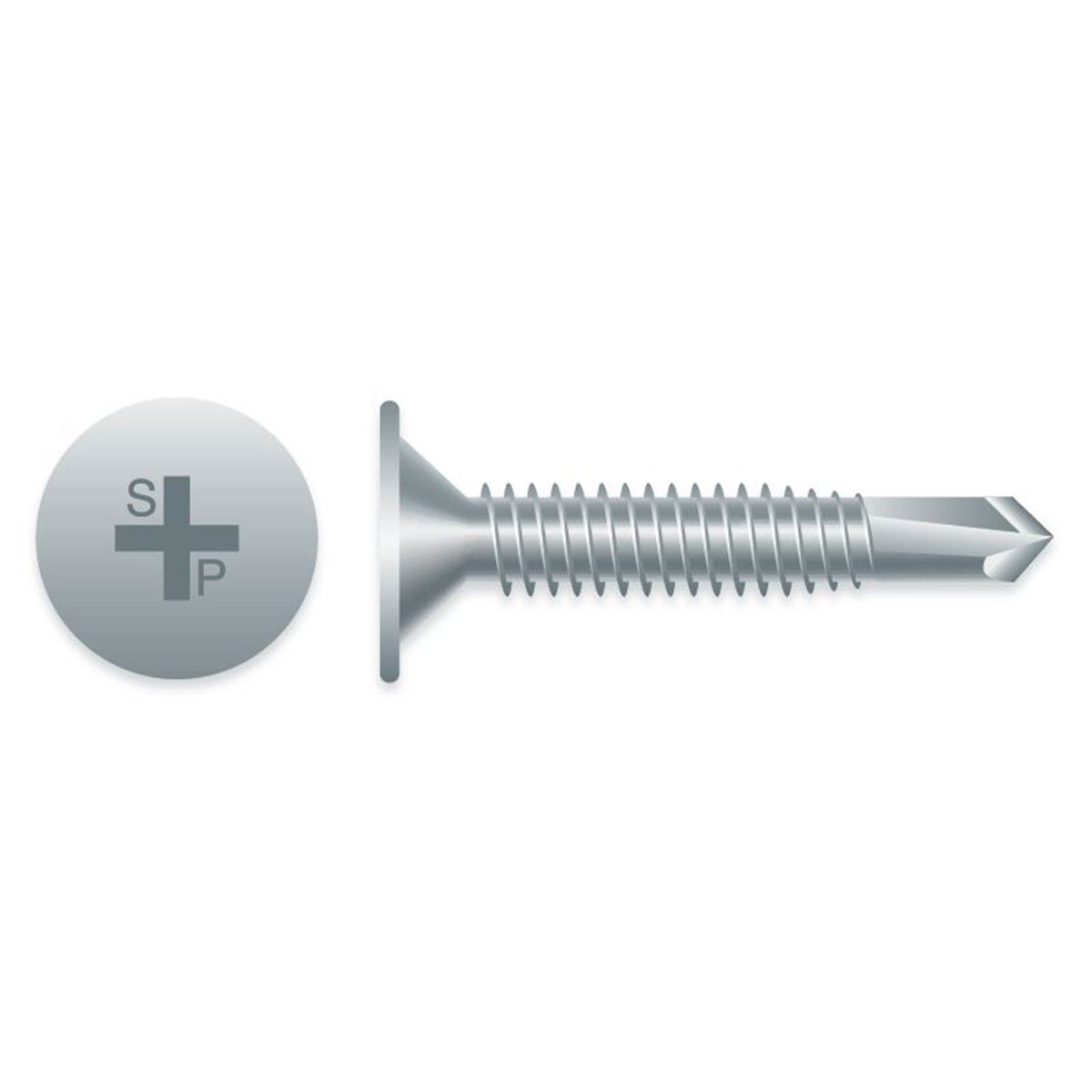

#10-24 x 2" Phillips Wafer Head Tek screws, Zinc Plated
Features:
- Self-Drilling for plywood to metal applications
- Precision cutting drill point delivers high performance with less physical effort.
- Low corrosion resistance
Details:
- Head Type: Wafer
- Drive Type: #2 Phillips
- Thread Diameter: #10
- Threads Per Inch: 24
- Length: 2"
- Point: #3 Self-Drilling
- Quantity: 2,000 pcs
- Weight: 27 pounds [approx.]
Material Application:
- Attaches plywood to metal
- Wood Range: 1/4” - 1-1/2”
- Drill Capacity: .035 - .176
- Drill Speed: 2500 RPM
Specifications:
- Meets ASTM C 1513 for cold-formed steel framing connections
- Meets F.I.P.-1000.7 for torsional strength & drill speed
- Meets SAE J78 for performance & dimensional specifications
- Meets ASTM A 510 for carbon steel manufacturing
- Meets ASTM F1941 for corrosion resistance
- Zinc Plated
Zinc plated is a plating that is applied electrically to fasteners that prevents oxidation of steel by forming a protective barrier. Not recommended for ACQ Treated Lumber.
