#10-16 x 1-5/8" Phillips Flat Head Reamer w/Wings Self-Drilling Tek Screws Zinc CR3+ Plated 4,000ct | R158
Details

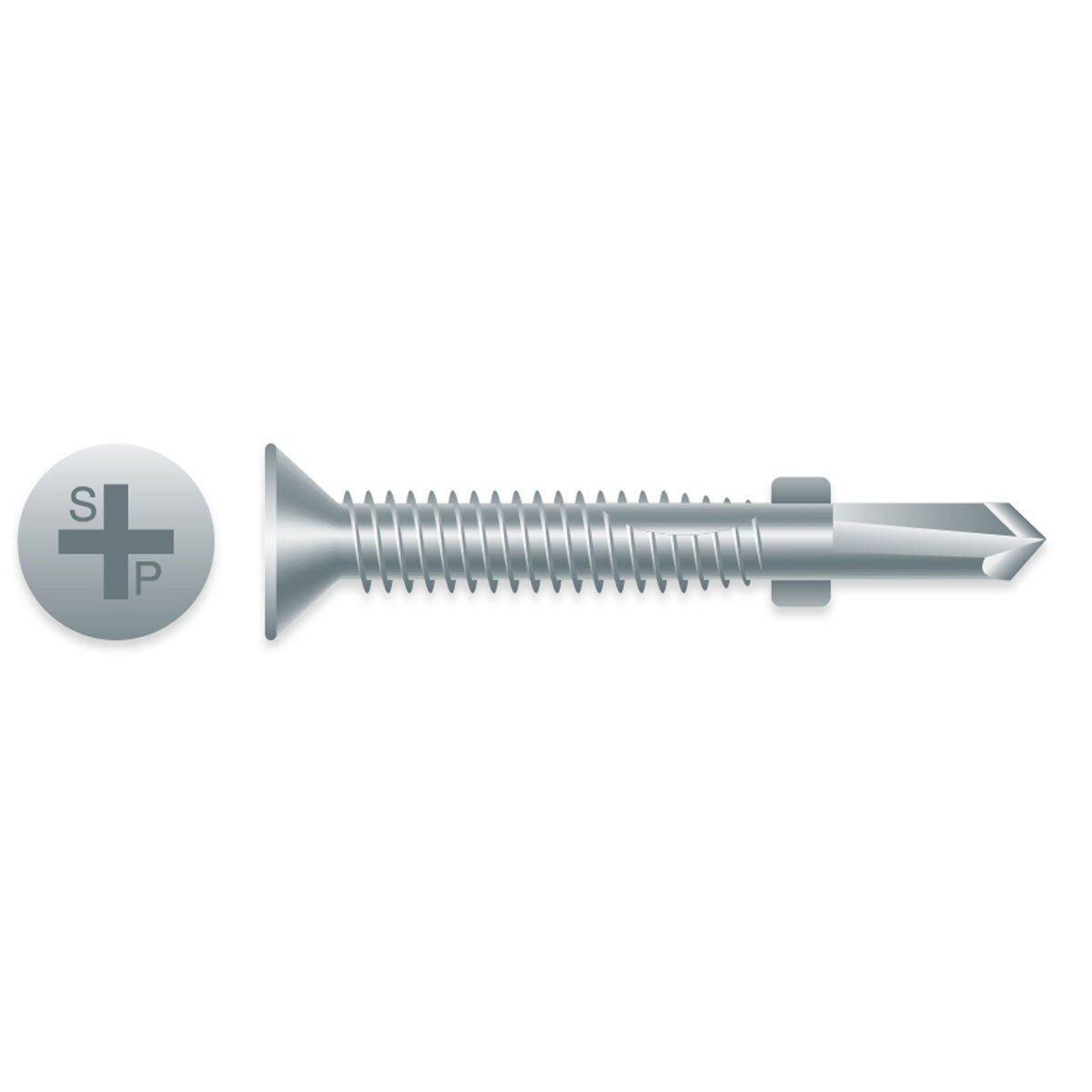

Strong-Point #10-16 x 1-5/8" Phillips Flat Head Reamer w/Wings Self-Drilling Tek Screws Zinc CR3+ Plated
Strong-Point #10-16 x 1-5/8" Phillips Flat Head Reamer w/Wings Self-Drilling Tek Screws are designed for attaching lumber or headers to steel. The reamer wings enlarge the hole in the wood before contact with the steel substrate, helping prevent jacking action and allowing materials to pull together tightly. The #3 self-drilling point delivers fast, consistent drilling through steel thicknesses from .060" to .176". Zinc CR3+ plating provides corrosion protection by forming a protective barrier that helps prevent oxidation.
Features:
- #3 self-drilling point for steel applications
- Reamer wings prevent jacking action in wood
- Phillips flat head for flush mounting in countersunk holes
- Zinc CR3+ plated for corrosion resistance
- Designed for attaching lumber or headers to steel
- Precision formed threads for secure holding power
Details:
- Head Type: Flat Head Reamer w/Wings
- Drive Type: Phillips
- Thread Diameter: #10
- Threads Per Inch: 16
- Length: 1-5/8"
- Point: #3 Self-Drilling
- Quantity: 4,000 pcs
- Weight: 36lb
Material Application:
- Attaches wood to metal
- Wood Range: 1/4" – 7/8"
- Drill Capacity: .060" – .176"
- Recommended Drill Speed: 2500 RPM
Specifications:
- Meets ASTM C1513 for cold-formed steel framing connections
- Meets F.I.P.-1000.7 for torsional strength & drill speed
- Meets SAE J78 for performance & dimensional specifications
- Meets ASTM A510 for carbon steel manufacturing
- Meets ASTM F1941 for corrosion resistance
- Zinc CR3+ Plated
- Wings ream hole in wood preventing jacking action
- Used for attaching lumber or headers to steel
Zinc CR3+ plating provides a thin protective barrier that helps reduce oxidation of carbon steel. Corrosion resistance is limited and not suitable for ACQ Treated Lumber.
Coating Details:
- Coating: Clear Zinc
- Salt Spray: 24 hrs.
- Kesternich: N/A
- Application: Used indoors for dry, non-corrosive environments
- Clear Zinc is an electrically applied plating that forms a protective barrier to prevent oxidation of the steel.
