Simpson EB316WDR275 Hidden Deck Fastening Kit, 2-1/4" 305SS screws, 3/16" Spacing 275ct
Details
EB-TY® Premium Hidden Deck-Fastening System EB316WDR275
The EB-TY Premium Hidden Deck-Fastening System is the ideal solution that blends strength with ease of installation in a fastener that won’t detract from the deck’s finished appearance. Simpson Strong-Tie has redesigned the award-winning EB-TY Hidden Deck-Fastening System by integrating a Type 300 series stainless-steel reinforcing plate that adds stiffness to hold boards in place securely, yet maintains flexibility when seasonal contraction and expansion occur. Combine this innovative new design with our EB-GUIDE predrilling tool, and you have a system that provides hidden strength and is also easy to install.
3/16" Board Spacing — use for 3/4" to 1 1/2" kiln-dried decking

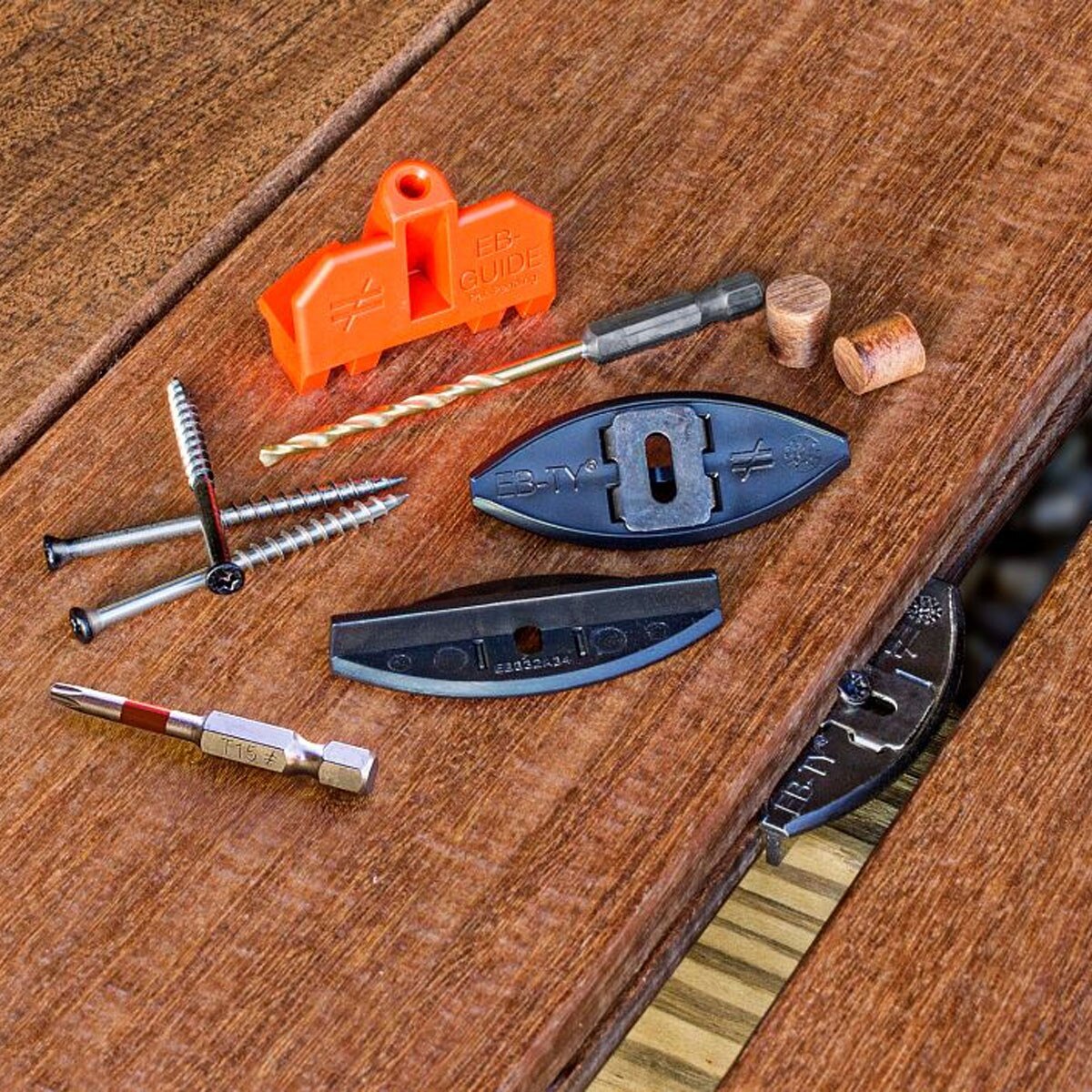

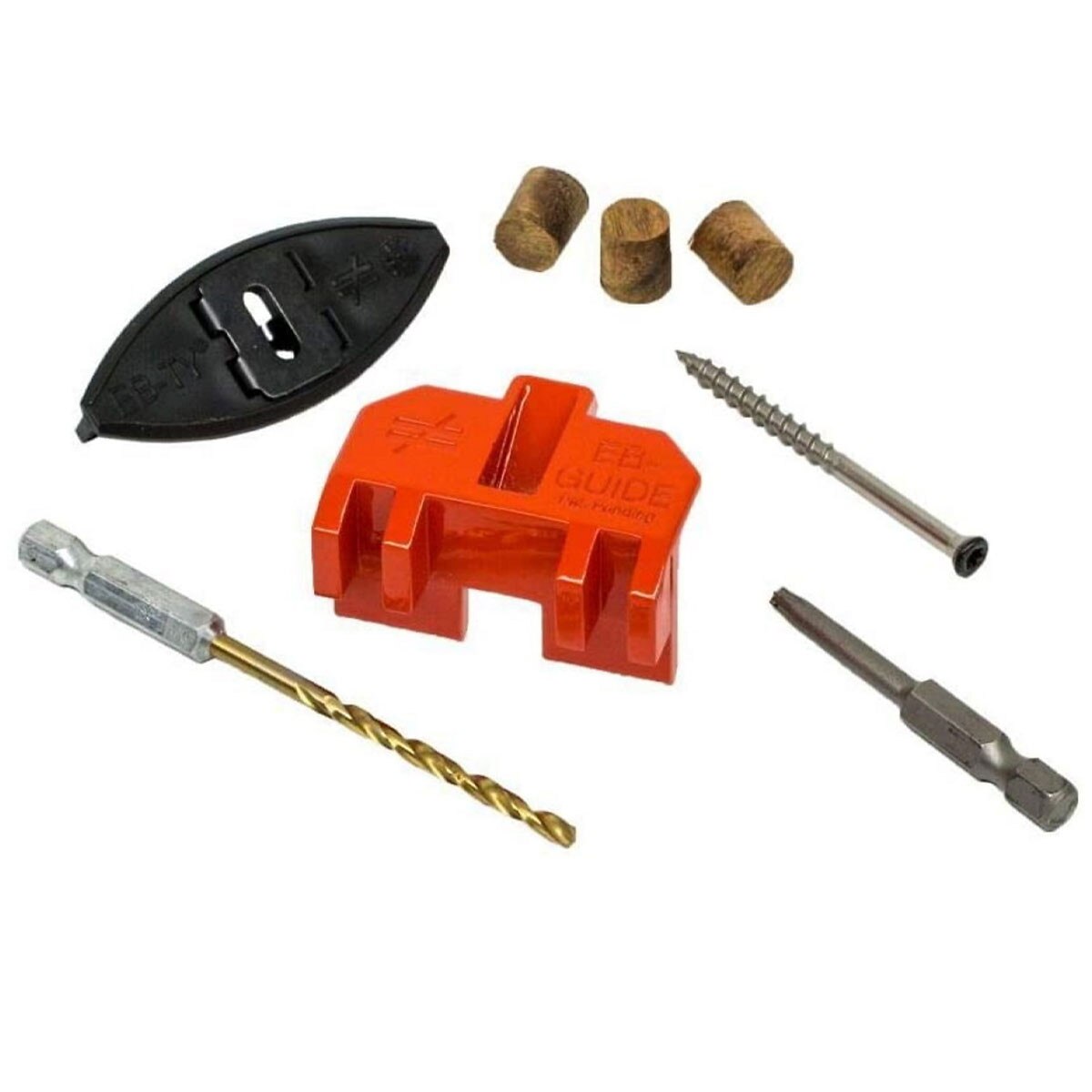

Included in this kit:

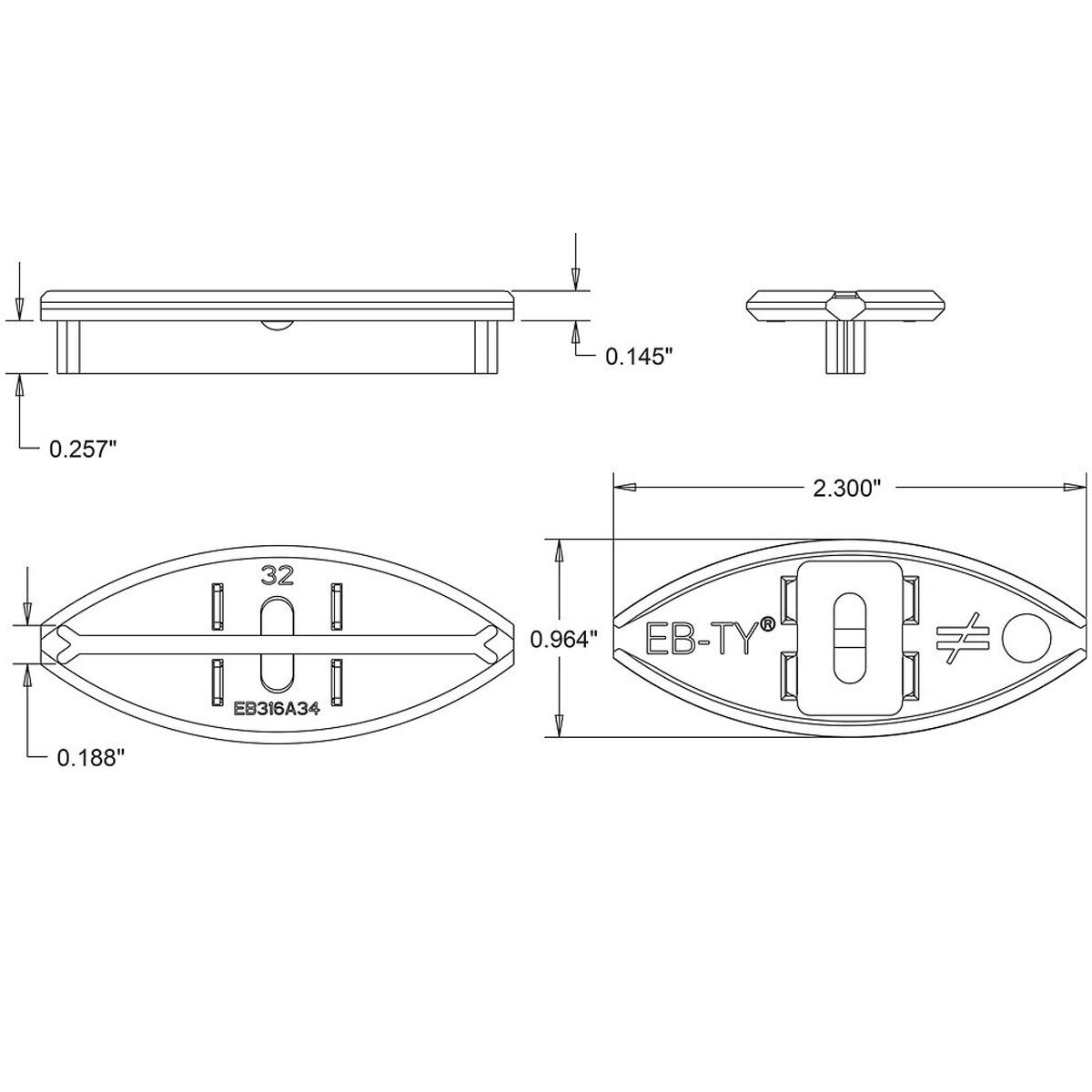

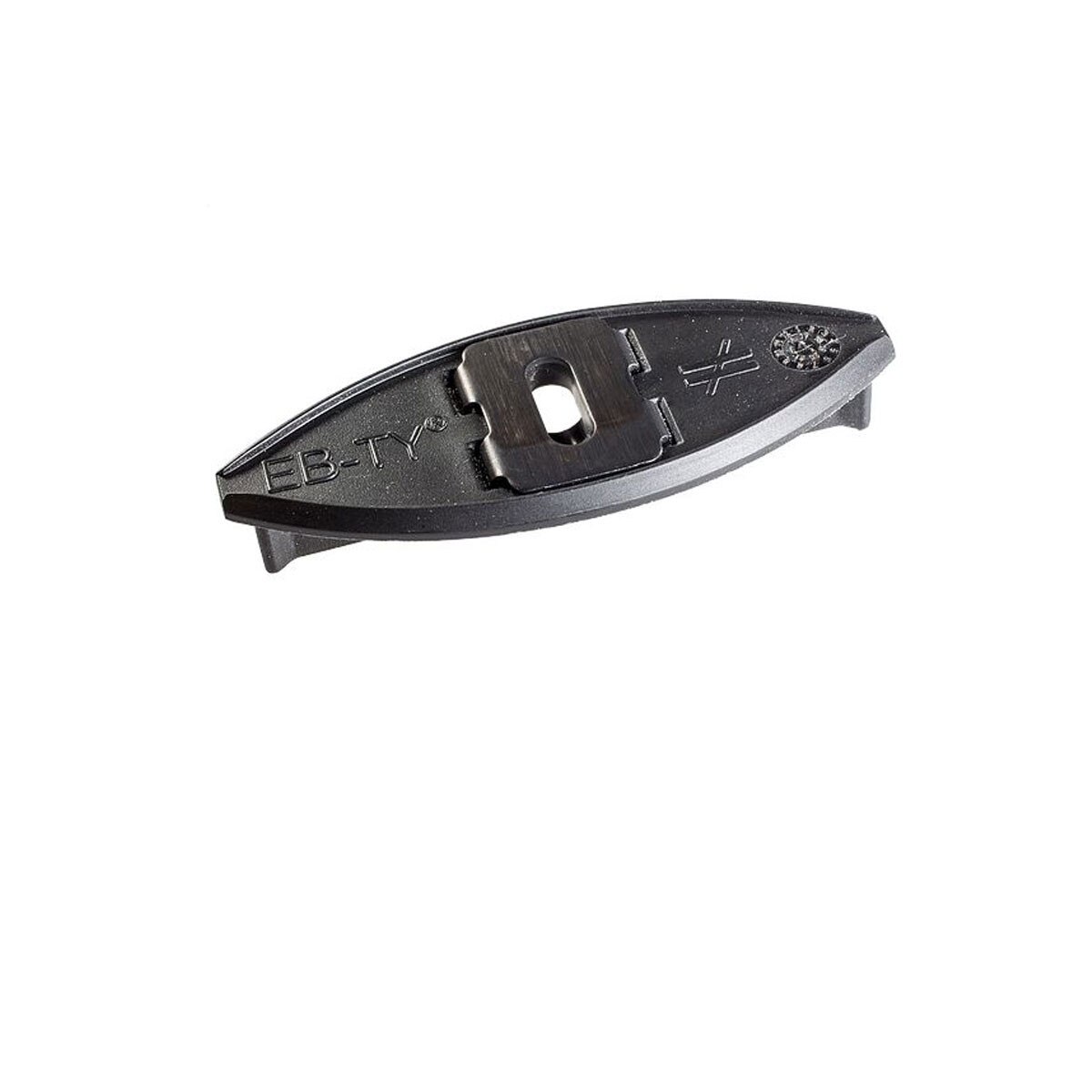

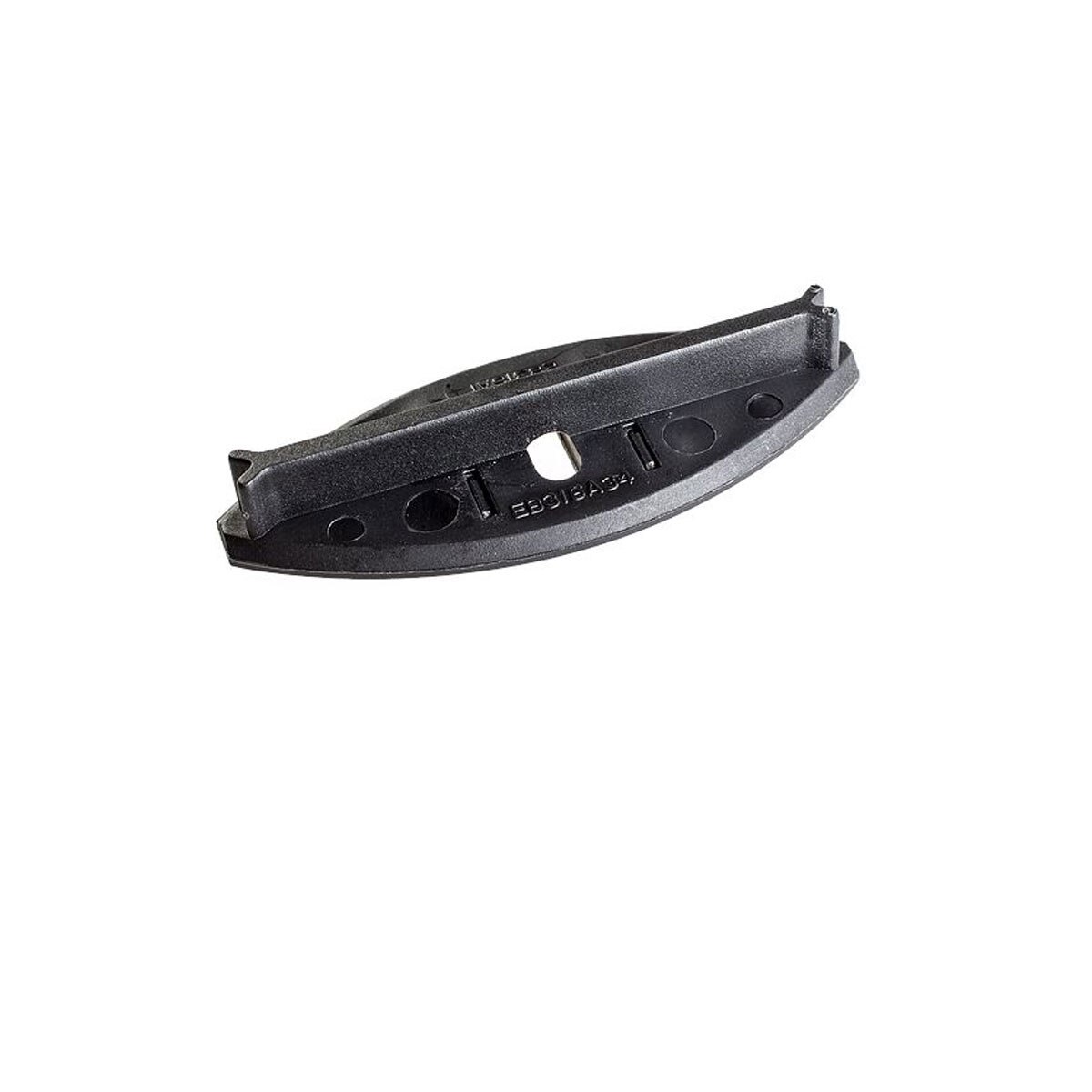

- (275) EB316W 3/32" EB-TY Spacing Biscuits
- (300) #7 x 2-1/4" 305 Stainless Steel 6-Lobe Star Drive Trim Head Deck Screws w/painted black head

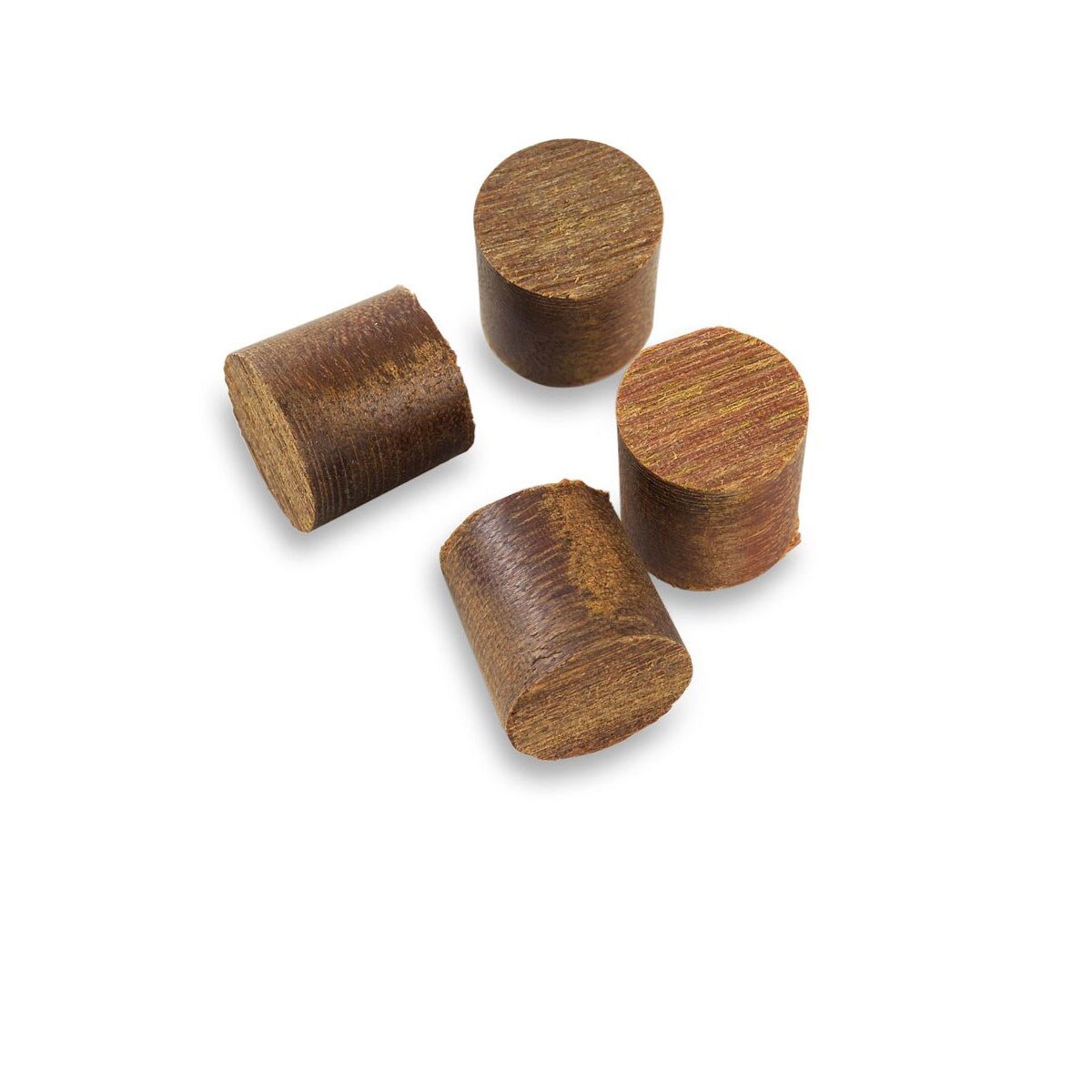

- (20) Ipe Wood Plugs
- (2) 1/8" Quick-Release Impact-Ready Drill Bit
- (2) T-15 6-Lobe Driver Bit

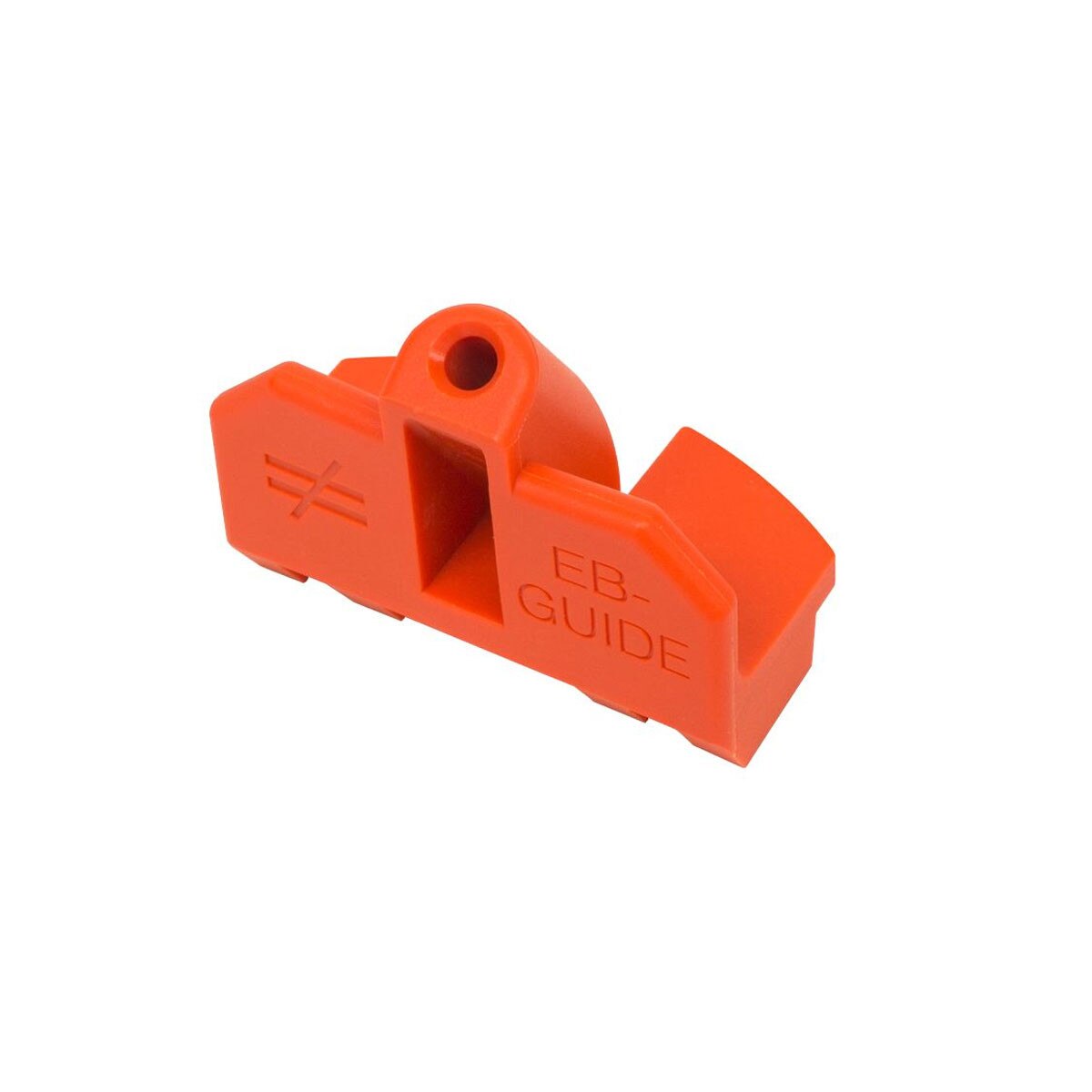

- (2) EB-GUIDE Pre-Drilling tool
Metal Reinforcement:
- Provides holding and pullover resistance
- Type 300 series stainless-steel plate ensures lasting durability in demanding environments
- Prevents over-driving of the screw, helping to ensure consistent, quality installations
Angled-Screw Attachment:
- Ensures direct attachment of the board to the joist
- Keeps the board from "walking" or sliding
- Allows tighter spacing
Covers the Joist:
- Protection from direct exposure to sun and rain
- Visually more appealing after installation
Installation manual for the EB-TY® Premium Hidden Deck-Fastening System™ for wood decks.
