Simpson 175-EBTYP Hidden Deck Fastening Kit, 305SS for Composite Decking 175ct
Details
EB-TY® Premium Hidden Deck-Fastening System 175-EBTYP for Composite Decking

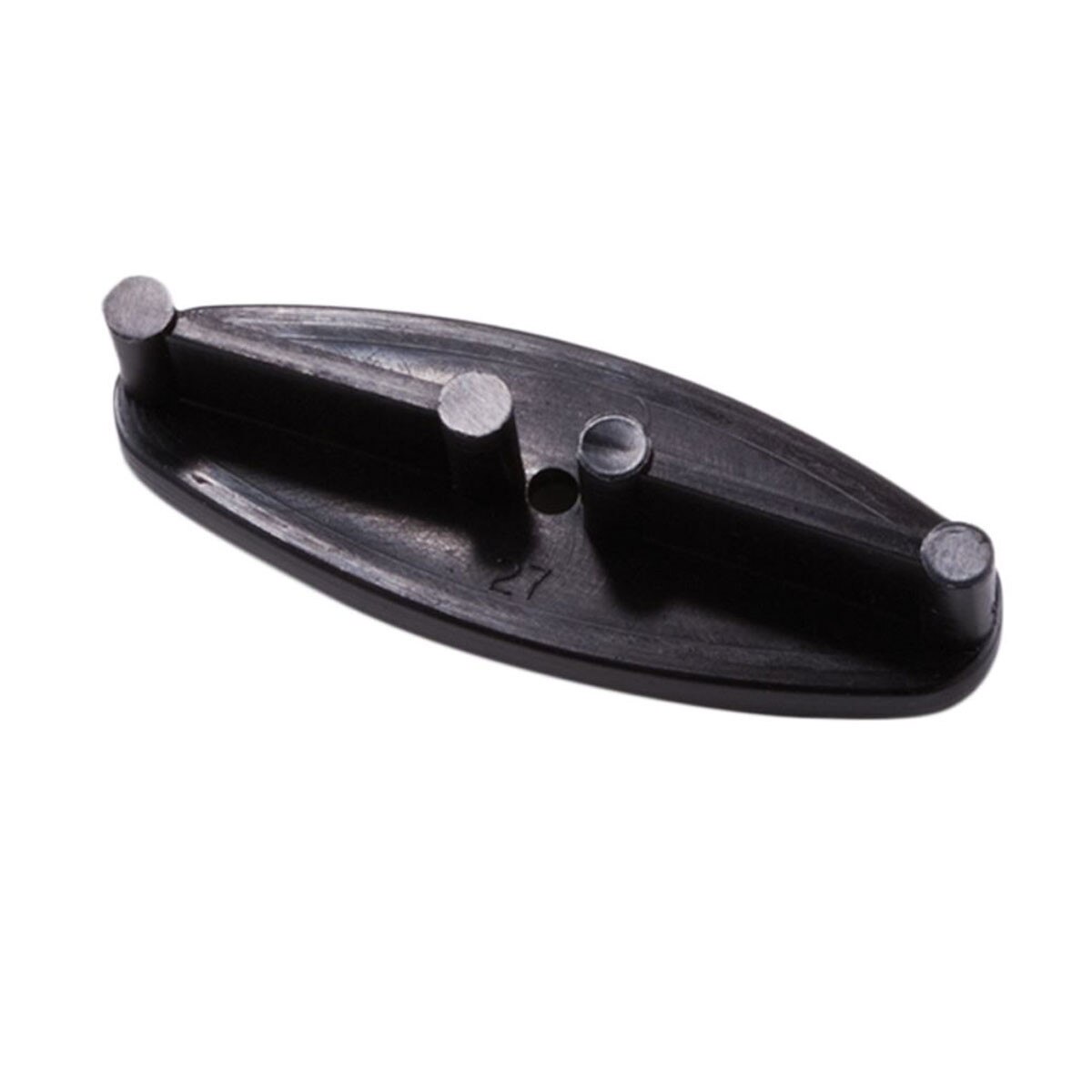

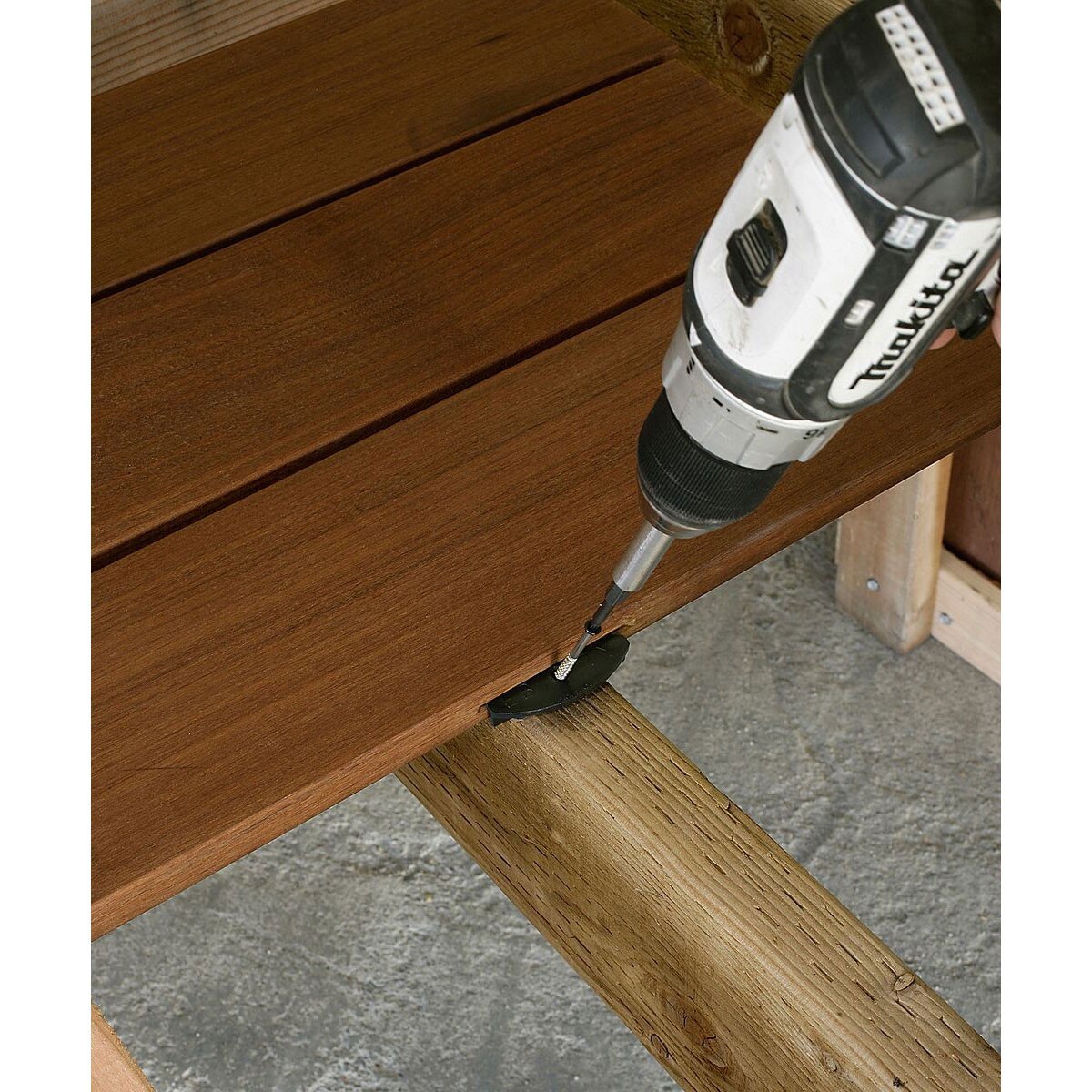

The EB-TY is a polypropylene biscuit fastener that fits into a pre-cut deck board or into a slot the builder cuts into the edge of the deck boards with a standard biscuit joiner, making the fasteners virtually invisible. The EB-TY fasteners are inserted and fastened with a screw driven through the biscuit and into the joist. Nesting each successive board against the EB-TY automatically ensures consistent spacing and uniform height.
EB-TY for Composite Decking
Please Note: The 175-EBTYP is the original-version EB-TY products (w/o steel reinforcement plate)

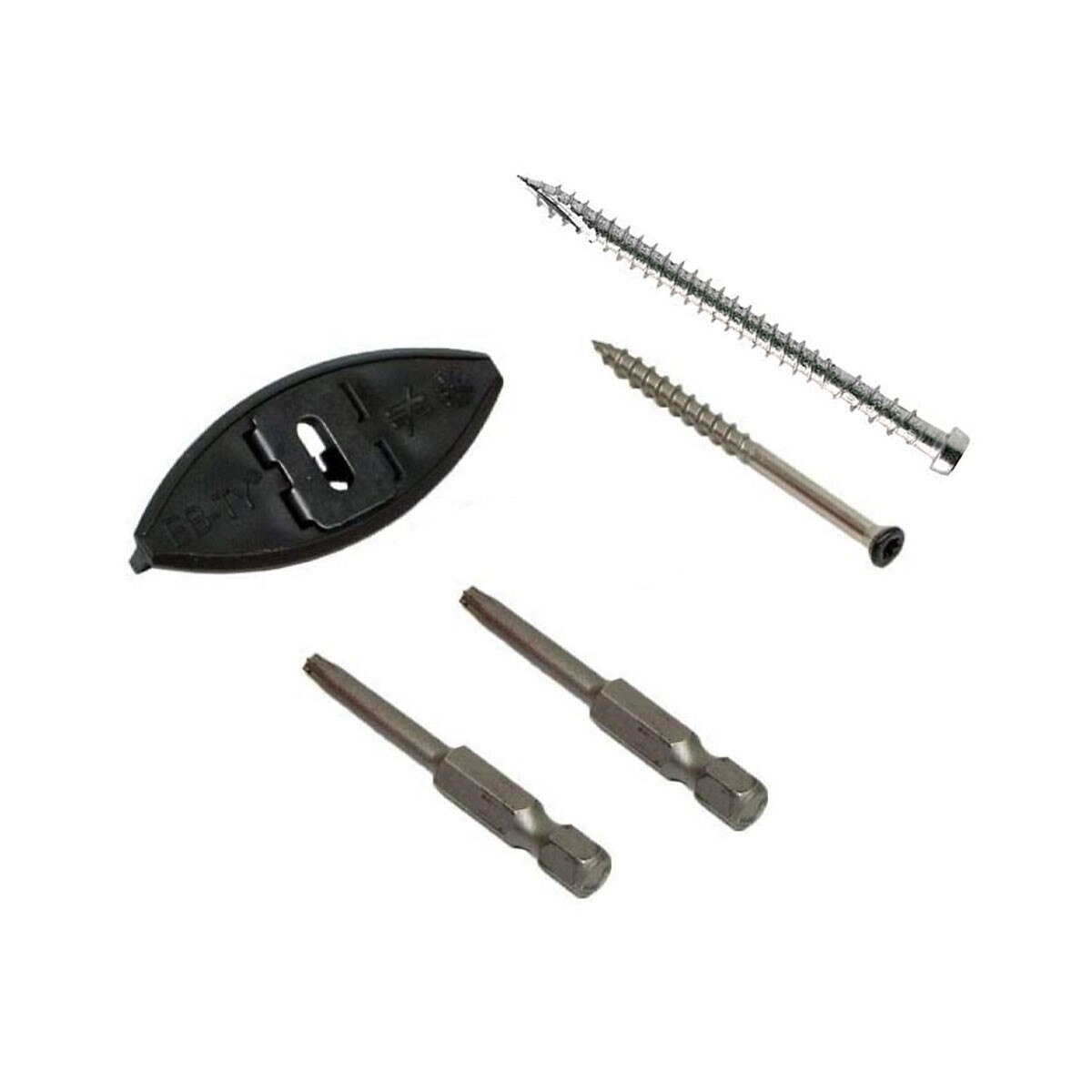

Included in this kit:
- (175) TP015 Spacing Biscuits
- (190) #7 x 2-1/4" 305 Stainless Steel 6-Lobe Star Drive Trim Head Deck Screws w/painted black head
- (10 ct.) #10 x 2 3/4” DCU Composite screws for fastening starter boards.
- (1) T-15 6-Lobe Driver Bit
- (1) T-20 6-Lobe Driver Bit for DCU screws.
Key Features:
- Easy to install since all fastening is done from the top side
- Affords easier deck resurfacing because fastener heads are below from the deck surface
- Formed from long-lasting polypropylene to last the life of the deck
- Stainless-steel #7 trim-head screws included (black head, 6-lobe T-15 drive)
- Each EB-TY package includes enough EB-TY fasteners and screws to install 100 square feet of decking (175-Pack quantity assumes 6" wide boards, installed perpendicular to joists spaced 16" on center)
