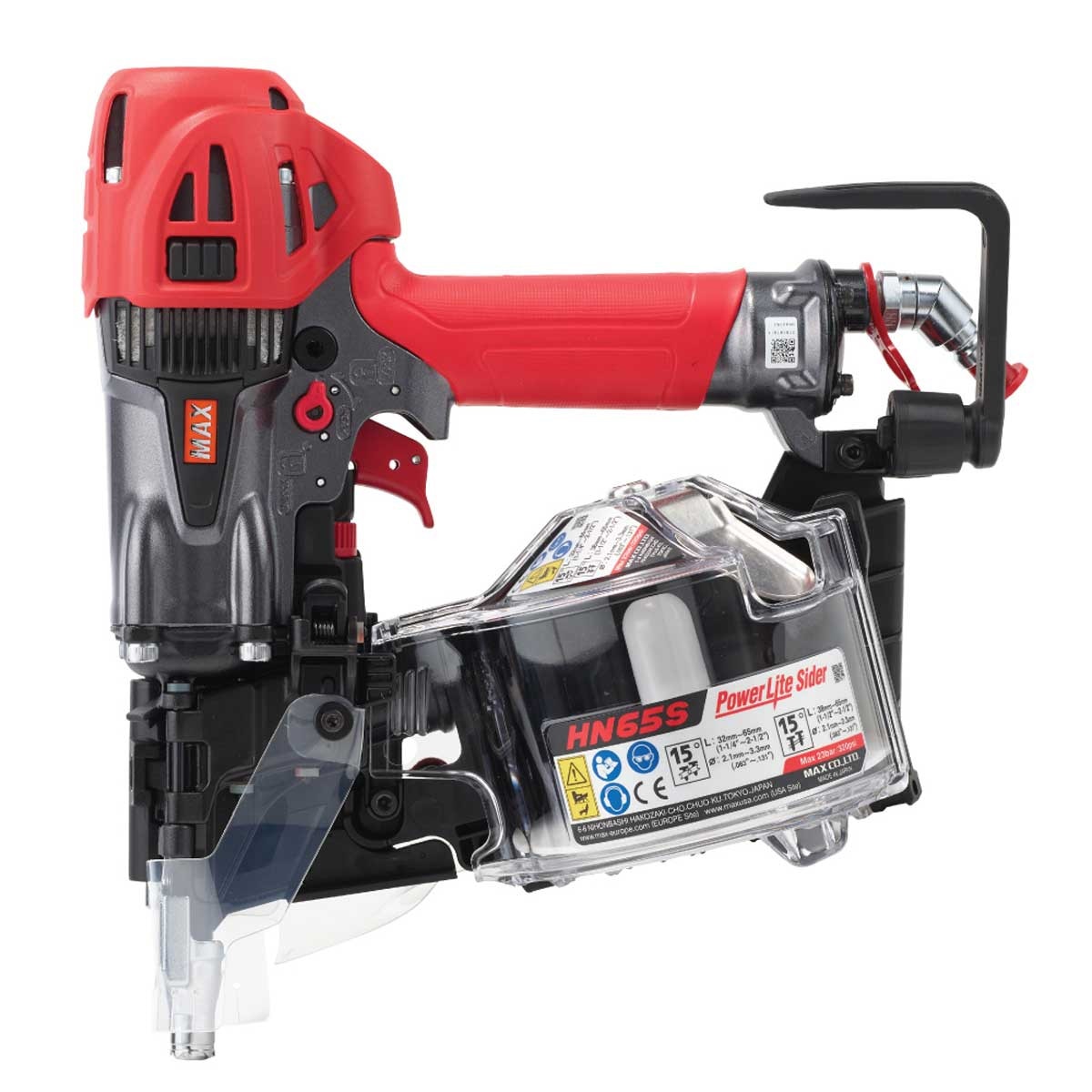

MAX HN65S PowerLite High Pressure Decking, Sheathing & Siding Coil Nailer up to 2-1/2"

MAX HN65S PowerLite® High Pressure Decking, Sheathing & Siding Coil Nailer up to 2-1/2"

The PowerLite® HN65S is a top of the line, safety equipped high pressure siding and decking nailer. It can be used for applications such as exterior siding, floor decking, sheathing and subflooring. The HN65S includes interchangable contact noses, giving users the ability to shoot a wide range of nails. The dynamic firing option modes allow users to change between bump and single fire without the hassle of making manual adjustments. Furthermore, the anti-double fire trigger helps safeguard from multiple shots being fired which could pose a hazardous injury to the user and others around. MAX is committed to manufacturing reliable tools that have been designed to deliver enhanced performance while making sure that users can perform safe operations.

• Siding
• Decking
• Sheathing
• Exterior trim
• Subflooring

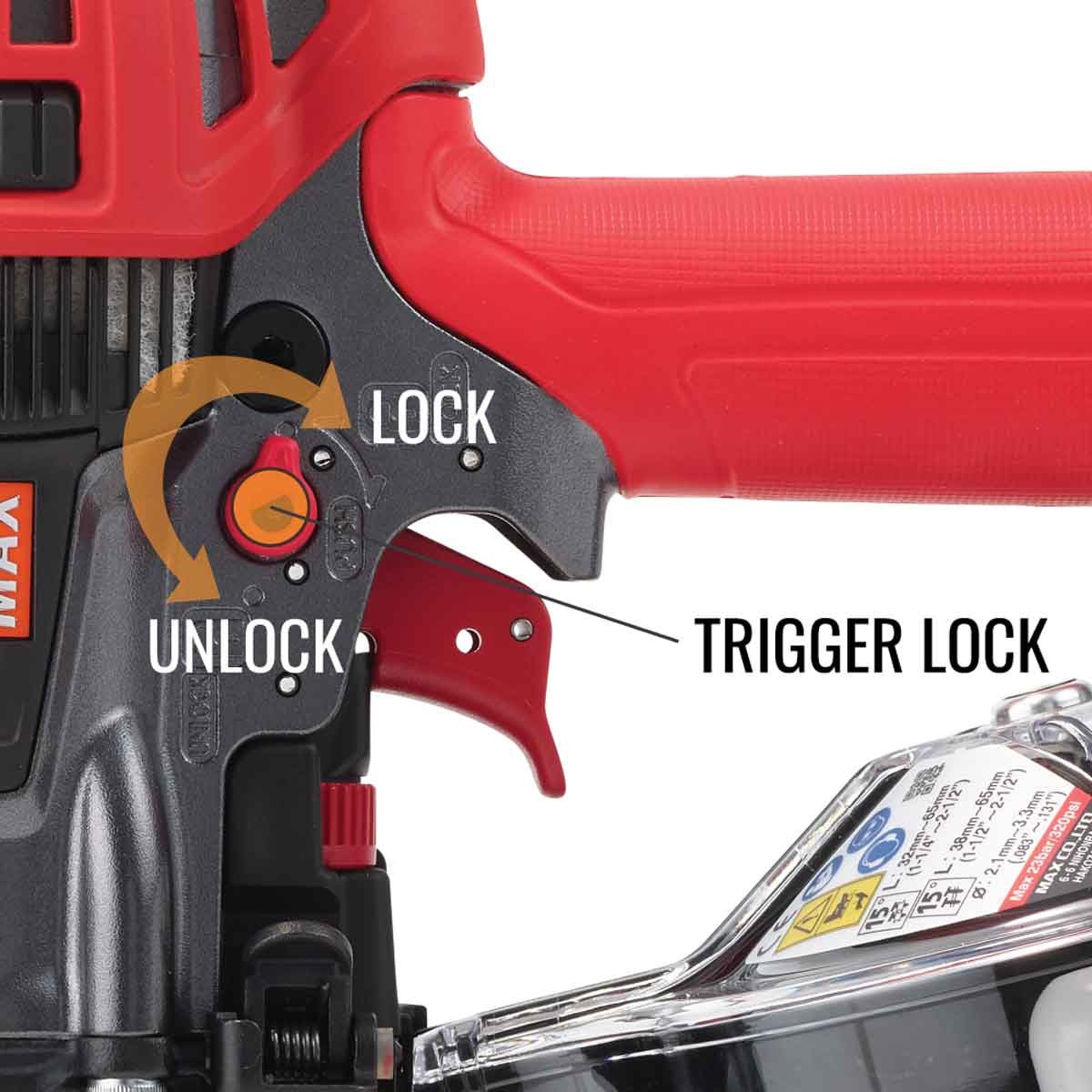

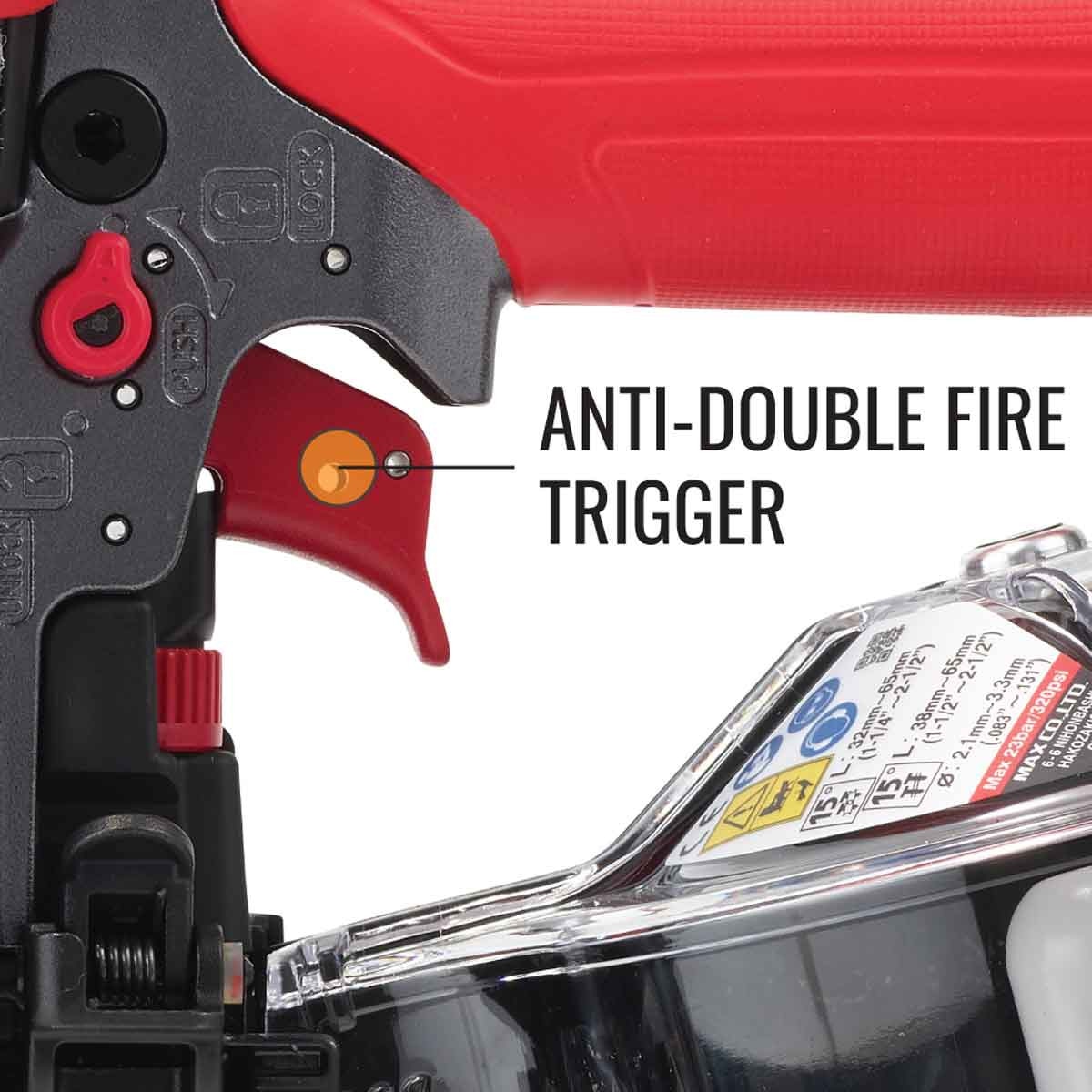

• SAFETY TRIGGER
  Anti-double fire trigger prevents multiple nails from being fired in one shot. To move between bump fire and single fire modes no adjustment to the tool is necessary.

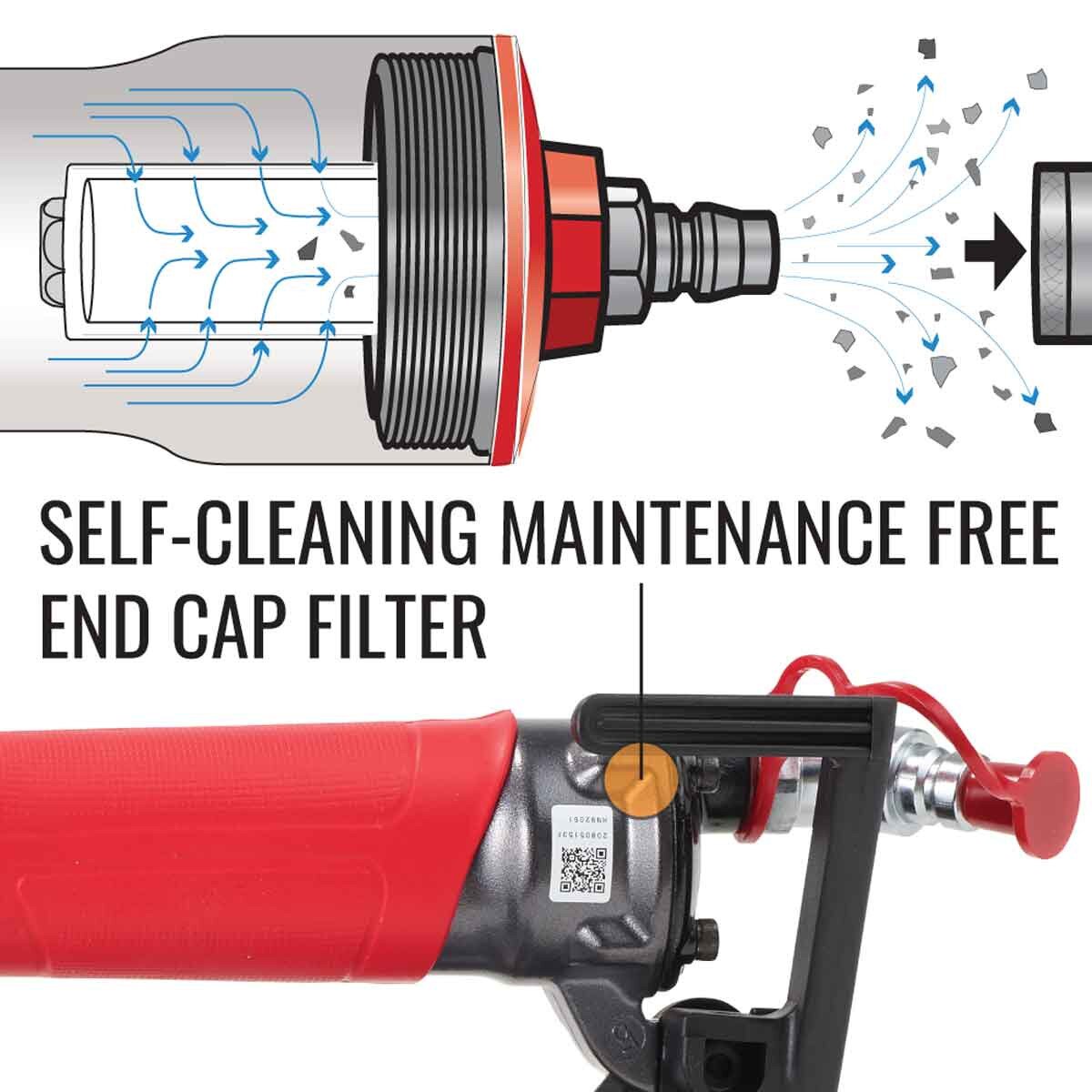

• SELF-CLEANING FILTER FOR RELIABLE OPERATIONS
  MAX's patented, maintenance, free endcap filter prevents foreign substances from entering the tool. The inside of the tool is kept clean so the internal components last longer. The filter also has a self cleaning feature. Foreign substances are ejected automatically from the tool when the air hose is disconnected.

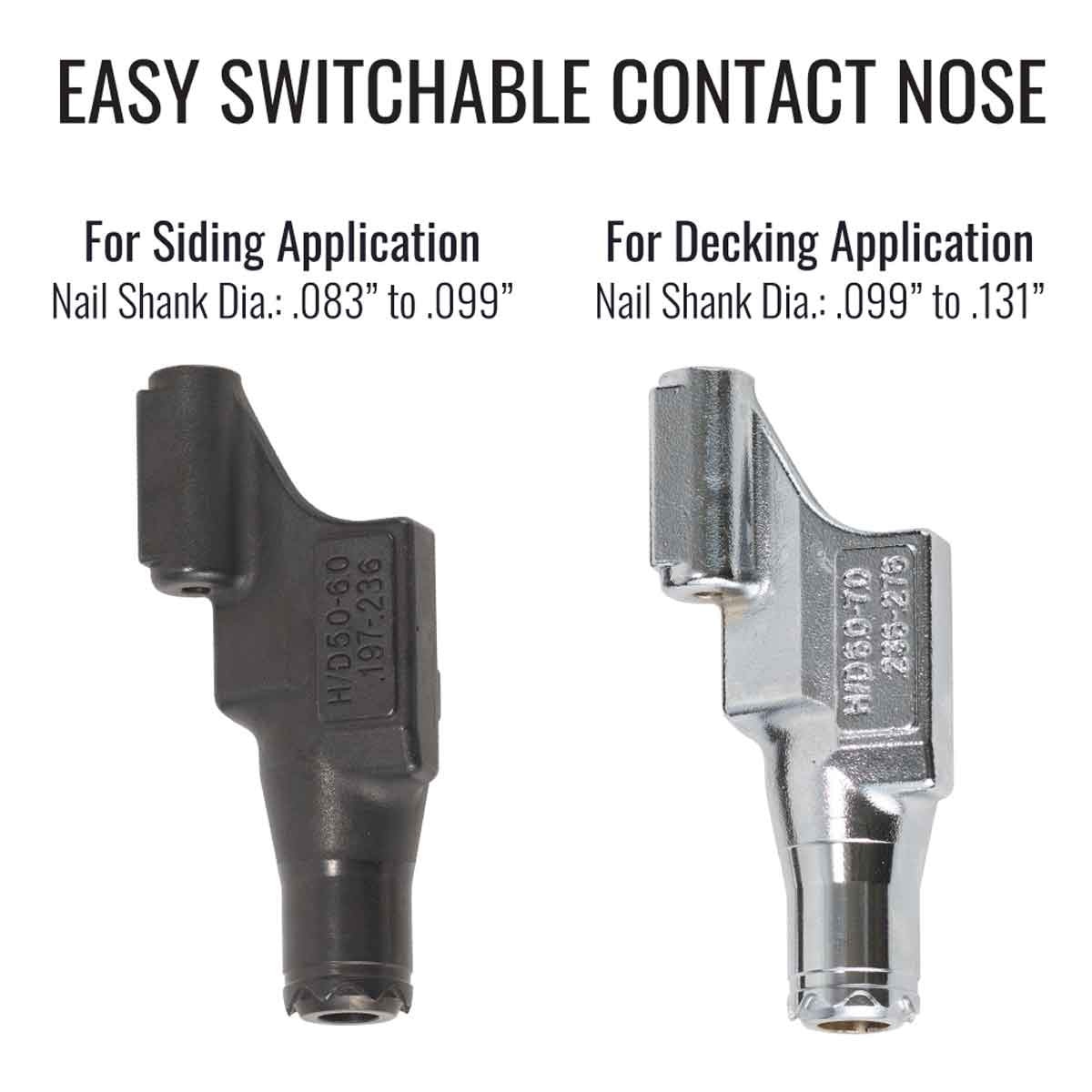

• SHOOT A WIDE VARIETY OF NAILS
  The Max HN65S comes with two easily detachable contact noses. One for siding and the other for decking applications. This feature allows the HN65S to shoot between .083" to .131" nails.


• REDUCED RECOIL TRIGGER SYSTEM
  MAX engineered and integrated a unique recoil trigger system to help alleviate the bump fire action and soften the recoil for a more comfortable use of the tool.


• EXTREMELY LIGHTWEIGHT
  Weighing only 4.6 lbs makes operations extremely comfortable for longer periods of time.

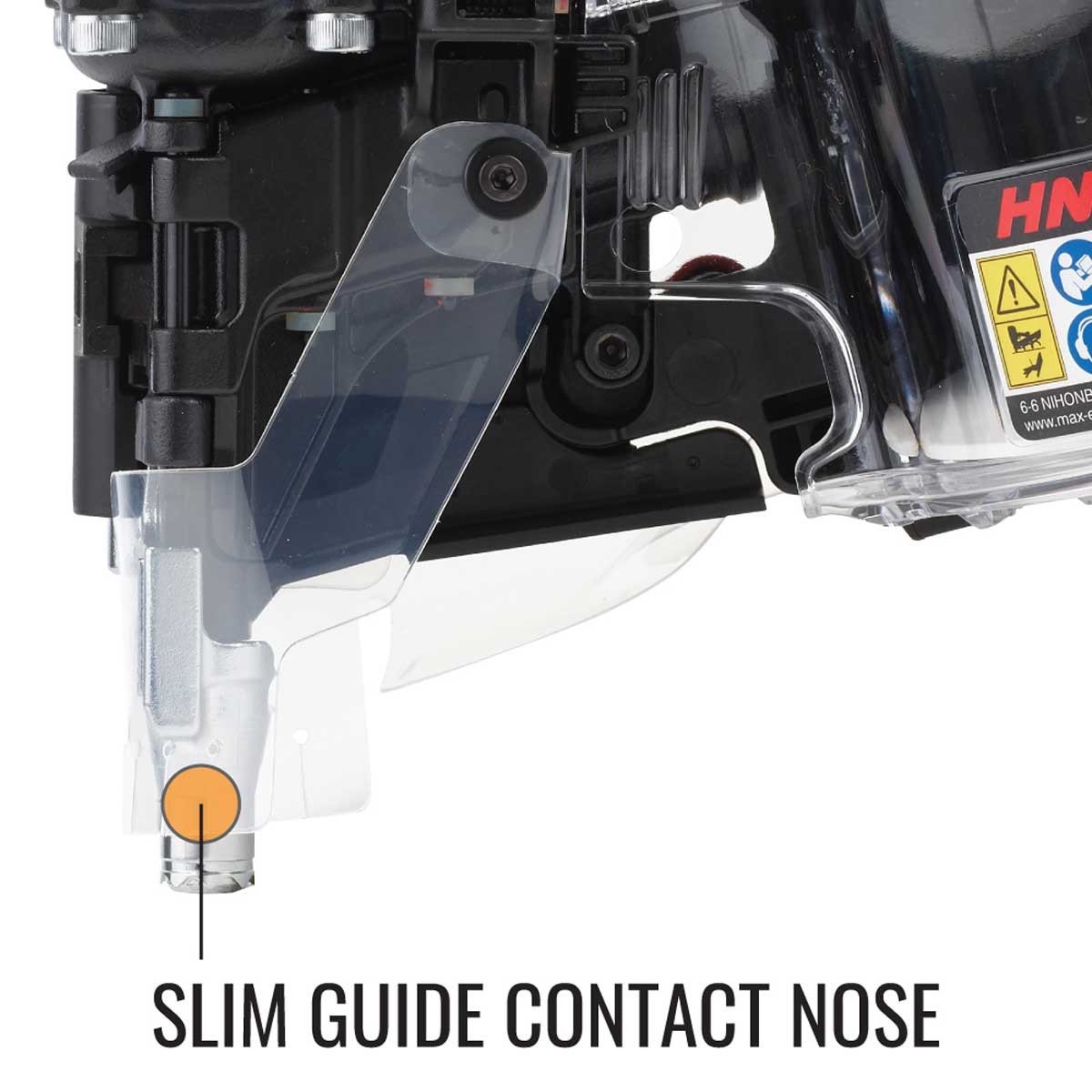

• ELIMINATE DRIVER MARKS
  Slim contact arm guides the nail to reduce misfiring and driver marks.



• WEIGHT: 4.6 lbs
• DIMENSIONS: 12(H) x 5(W) x 11-3/4"(L)
• MINIMUM OPERATION PRESSURE: 170 PSI
• MAXIMUM OPERATION PRESSURE: 320 PSI
• AIR INLET SIZE: 7/16"
• MAGAZINE CAPACITY: 250 to 400

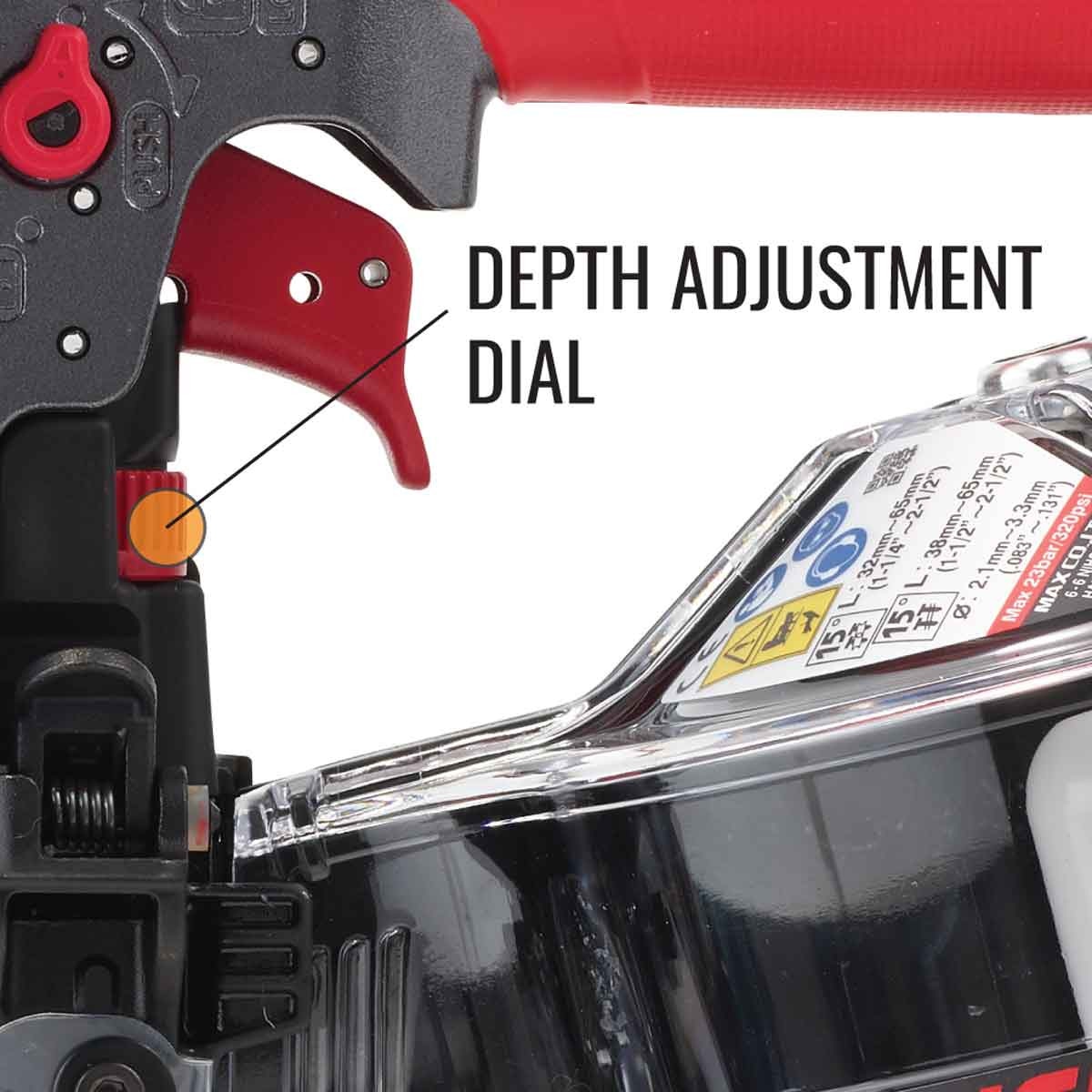

• DEPTH CONTROL: Yes
• JAM CLEARING: No
• TRIGGER TYPE: Anti-Double Fire Trigger
• AIR CONSUMPTION (FT3/CYCLE): 0.06
• ACCESSORIES: Safety glasses, Nose attachment, Carry case

• COLLATION TYPE: Wire, Plastic
• NAIL GUN ANGLE: 15-degree
• STRIP OR COIL: Coil
• NAIL GAUGE/STAPLE GAUGE: Flat wire welded nails and flat plastic sheet collated nails
• MINIMUM FASTENER SIZE: 1-1/4"
• MAXIMUM FASTENER SIZE: 2-1/2"
• MINIMUM NAIL DIAMETER: .083"
• MAXIMUM NAIL DIAMETER: .131"
