#8‑18 x 5/8" HWH Self‑Drilling Tek Screws Zinc CR3+ Plated 10,000ct | H810
Details

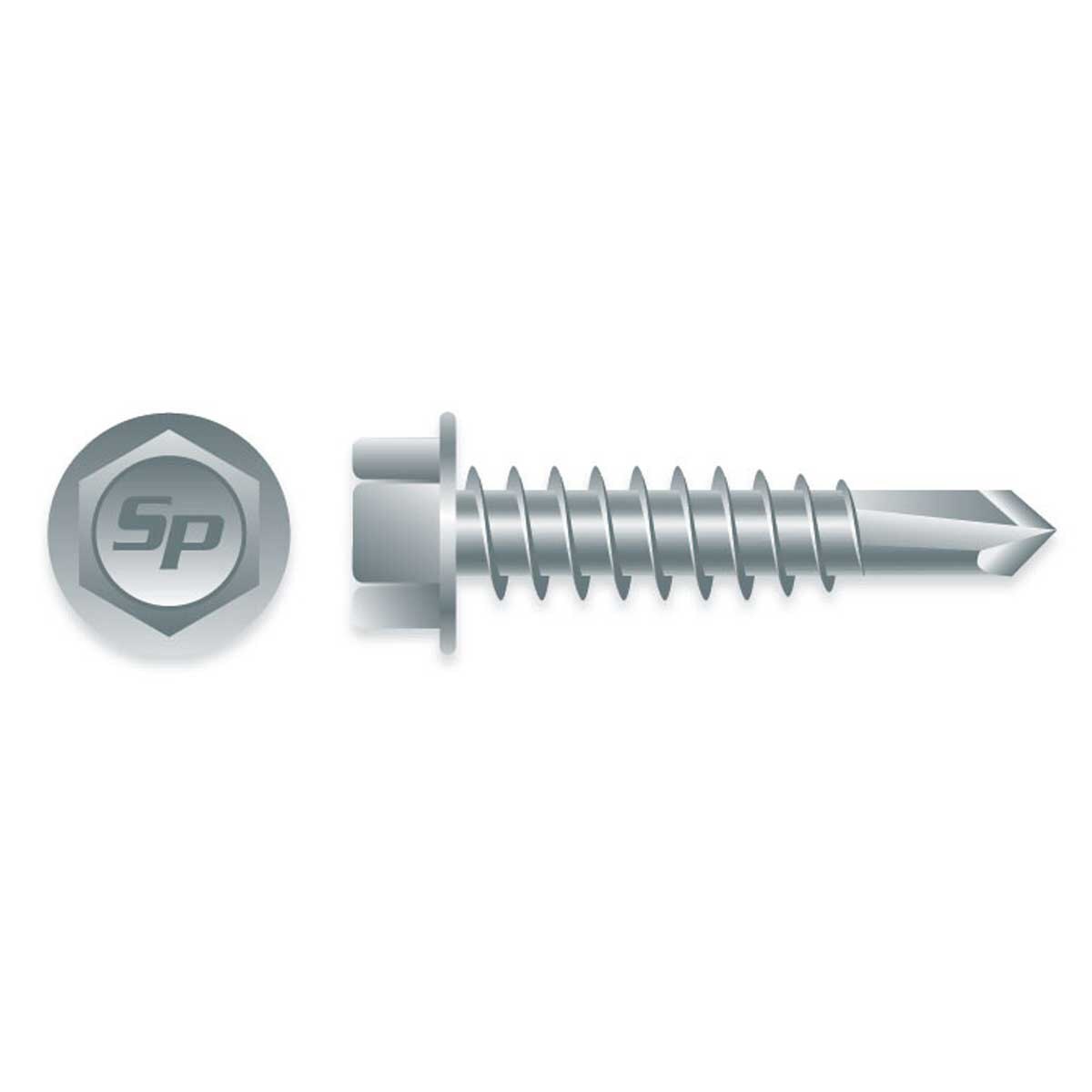

Strong‑Point #8‑18 x 5/8" Hex Washer Head Self‑Drilling Tek Screws Zinc CR3+ Plated
Strong‑Point #8‑18 x 5/8" Hex Washer Head Self‑Drilling Tek screws are built for consistent metal‑to‑metal fastening in light‑gauge steel. The #2 drill point cuts smoothly through steel thicknesses from .035" to .100", reducing walking and improving start speed. Zinc CR3+ plating provides basic corrosion resistance suitable for interior applications.
Features:
- #2 self‑drilling point for reliable penetration
- Hex Washer Head for stable driving and controlled seating
- Precision‑formed drill point improves drilling consistency
- Zinc CR3+ plating provides low corrosion resistance
Details:
- Head Type: Hex Washer Head
- Drive Size: 1/4"
- Thread Diameter: #8
- Threads Per Inch: 18
- Length: 5/8"
- Point: #2 Self‑Drilling
- Quantity: 10,000ct
- Weight: 40lb
Material Application:
- Metal‑to‑metal fastening
- Drill Capacity: .035" – .100"
- Recommended Drill Speed: 2500 RPM
Specifications:
- ICC‑ES ESR‑3528
- ASTM C1513
- F.I.P.‑1000.7
- SAE J78
- ASTM A510
- ASTM F1941 Zinc CR3+
Zinc CR3+ plating provides a thin protective barrier that helps reduce oxidation of carbon steel. Corrosion resistance is limited and not suitable for ACQ Treated Lumber.
Coating Details:
- Coating: Clear Zinc
- Salt Spray: 24 hrs.
- Kesternich: N/A
- Application: Used indoors for dry, non‑corrosive environments
- Clear Zinc is an electrically applied plating that forms a protective barrier to prevent oxidation of the steel.
