#8 x 3" PHILLIPS BUGLE HEAD RUSPERT COATED S/D SCREWS 2,000ct | D830R
Details
#8-18 x 3" Phillips Bugle Head, Ruspert Coating

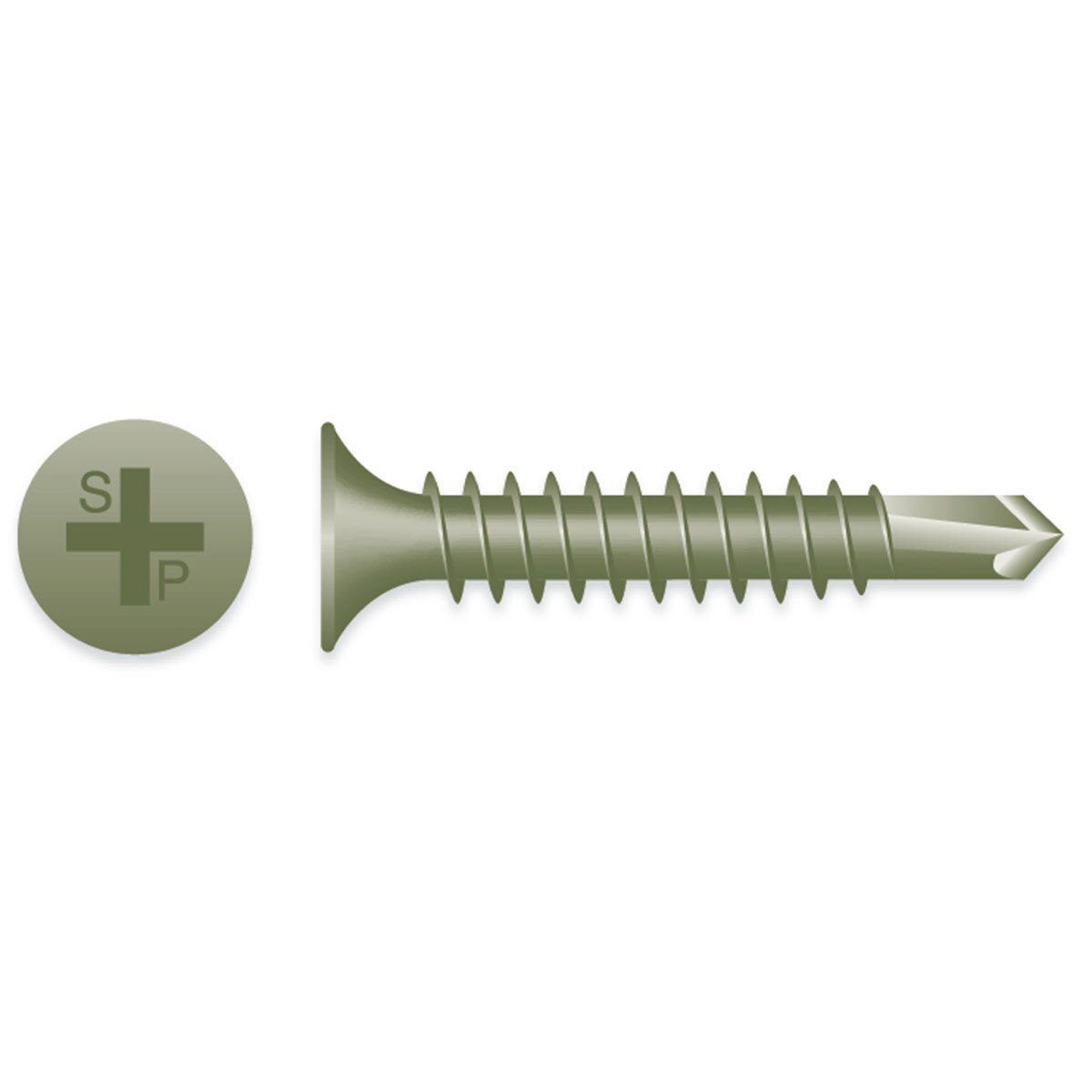

Product image is a likeness. Actual screw is not shown. Some screw lengths beyond 1-5/8" may follow the industry standard 2/3 partial thread length rule. Contact us if Full Thread is required for lengths beyond 1-5/8".
Features:
- Self-Drilling point for exterior sheathing to metal applications
- Approved for ACQ Pressure Treated Lumber
- Ceramic coating provides protection from corrosion
- High corrosion resistance
Details:
- Head Type: Bugle
- Drive Type: #2 Phillips
- Thread Diameter: #8
- Thread Per Inch: #18
- Thread Type: Fine
- Length: 3"
- Point: #2 Self-Drilling
- Quantity: 2,000 pcs
- Weight: 24 pounds [approx.]
Material Application:
- Attaches exterior sheathing to metal
- Drill Capacity: .035 - .100
- Drill Speed: 2500 RPM
Specifications:
- ICC-ES Evaluation Report: ESR-3528
- Meets ASTM C 1513 for cold-formed steel framing connections
- Meets F.I.P.-1000.7 for torsional strength & drill speed
- Meets SAE J78 for performance & dimensional specifications
- Meets ASTM C 954 for attaching gypsum board to steel studs
- Exceeds 1,000/hr. salt spray resistance
- Ruspert Coated
Ruspert Coating is a high-grade metal surface processing technology that prevents corrosion. The coating system consists of three layers: a metallic zinc layer, a high-grade anti-corrosion chemical conversion film, and a baked ceramic surface coating.
