#8-18 x 3" Partial Thread Square Drive Trim Head Self-Drilling Screws Zinc CR3+ Plated 2,000ct | T3QZP

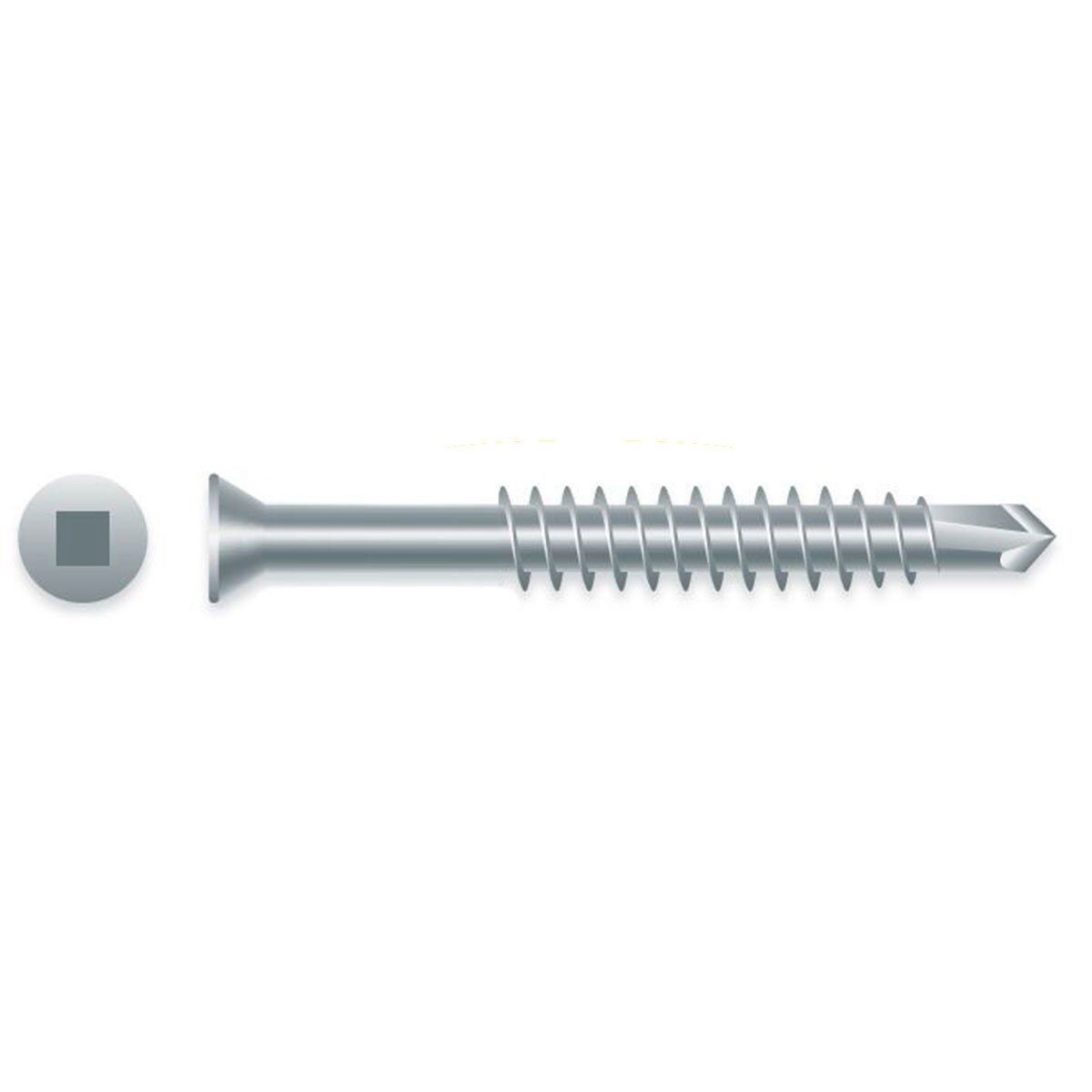

Strong-Point #8-18 x 3" Partial Thread Square Drive Trim Head Self-Drilling Screws Zinc CR3+ Plated

Strong-Point #8-18 x 3" Partial Thread Square Drive Trim Head Self-Drilling Screws are designed for attaching wood to metal. The trim head provides a clean, low-profile finish while the square drive reduces cam-out and improves driver engagement during installation. The partial thread design helps pull materials together and improve clamping force when fastening wood to steel framing. The #2 self-drilling point delivers fast, consistent drilling through steel thicknesses from .035" to .100". Zinc CR3+ plating provides corrosion protection by forming a protective barrier that helps prevent oxidation.

• Partial thread design for improved material draw-down
• #2 self-drilling point for light gauge steel applications
• Trim head design provides a clean finished appearance
• Square drive minimizes cam-out and improves torque transfer
• Designed for attaching wood to metal
• Zinc CR3+ plated for corrosion resistance

• Head Type: Trim Head
• Drive Type: Square
• Thread Diameter: #8
• Threads Per Inch: 18
• Length: 3"
• Thread Style: Partial Thread
• Point: #2 Self-Drilling
• Quantity: 2,000 pcs
• Weight: 22lb

• Attaches wood to metal
• Drill Capacity: .035" – .100"
• Recommended Drill Speed: 2500 RPM

• Meets F.I.P.-1000.7 for torsional strength & drill speed
• Meets SAE J78 for performance & dimensional specifications
• Meets ASTM A510 for carbon steel manufacturing
• Meets ASTM F1941 for corrosion resistance
• Zinc CR3+ Plated

• Coating: Clear Zinc
• Salt Spray: 24 hrs.
• Kesternich: N/A
• Application: Used indoors for dry, non-corrosive environments
• Clear Zinc is an electrically applied plating that forms a protective barrier to prevent oxidation of the steel.
