#8 x 1-5/8" PHILLIPS MODIFIED TRUSS HEAD ZINC PLATED S/D SCREWS 4,000ct | M87Z
Details

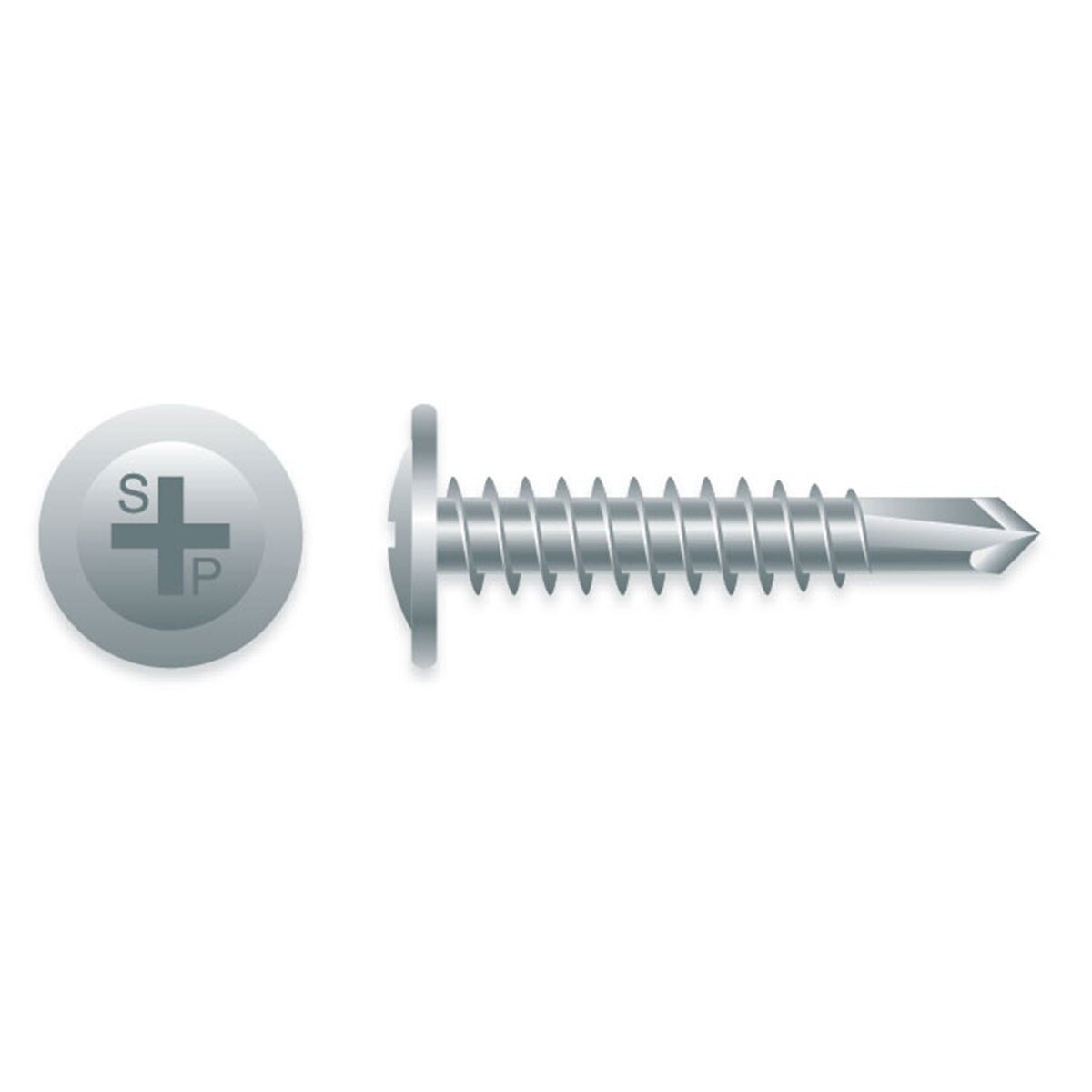

#8 x 1-5/8" Phillips Modified Truss (R/W) Head, Zinc Plated
Features:
- Attaches wire lath to metal studs or metal to metal.
Details:
- Drive Type: #2 Phillips
- Head Type: Modified Truss (R/W)
- Head Size: 0.42" diameter
- Thread Diameter: #8
- Threads per inch: 18
- Length: 1-5/8"
- Point: Self-Drilling #2 point
- Drill Capacity: .035" - .100"
- Drill Speed: 2500 RPM
- Quantity: 4,000 pcs
- Weight: 32 pounds
Specifications:
- Meets ASTM C 1513 for cold-formed steel framing connections
- Meets F.I.P.-1000.7 for torsional strength and drill speed.
- Manufactured to SAE J78 for dimensional specifications
- Meets ASTM A 510 for carbon steel manufacturing
- Meets ASTM F1941 for corrosion resistance
- ICC-ES Evaluation Report: ESR-3528
Zinc coating is a plating that is applied electrically to fasteners that prevents oxidation of steel by forming a protective barrier.
