#8 x 1-1/4" PHILLIPS MODIFIED TRUSS HEAD BLACK OXIDE S/D SCREWS 5,000ct | M85B
Details

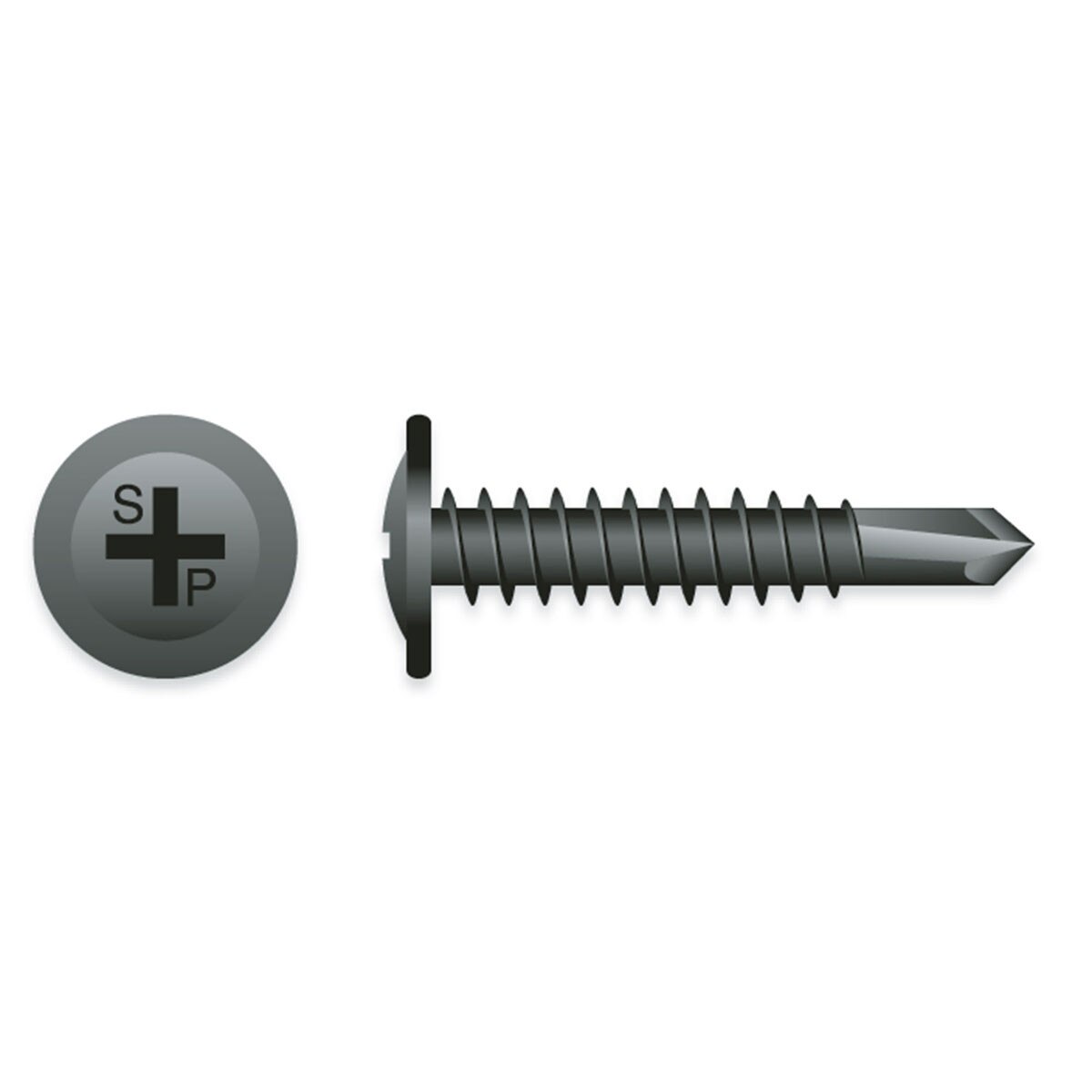

#8 x 1-1/4" Phillips Modified Truss (R/W) Head, Black Oxide
Features:
- Finishing screw for use when aesthetics are important
Details:
- Drive Type: #2 Phillips
- Head Type: Modified Truss (R/W)
- Head Size: 0.42" diameter
- Thread Diameter: #8
- Threads per inch: 18
- Length: 1-1/4"
- Point: Self-Drilling #2 point
- Drill Capacity: .035" - .100"
- Drill Speed: 2500 RPM
- Quantity: 5,000 pcs
- Weight: 34 pounds
Specifications:
- Meets ASTM C 1513 for cold-formed steel framing connections
- Meets F.I.P.-1000.7 for torsional strength and drill speed.
- Meets ASTM A 510 for carbon steel manufacturing.
- Meets SAE J78 for performance & dimensional specifications.
Black oxide is a conversion coating used to add mild corrosion resistance and for appearance.
