8" OMG RetroDriller Fastener 500ct | RDDP008B
Details

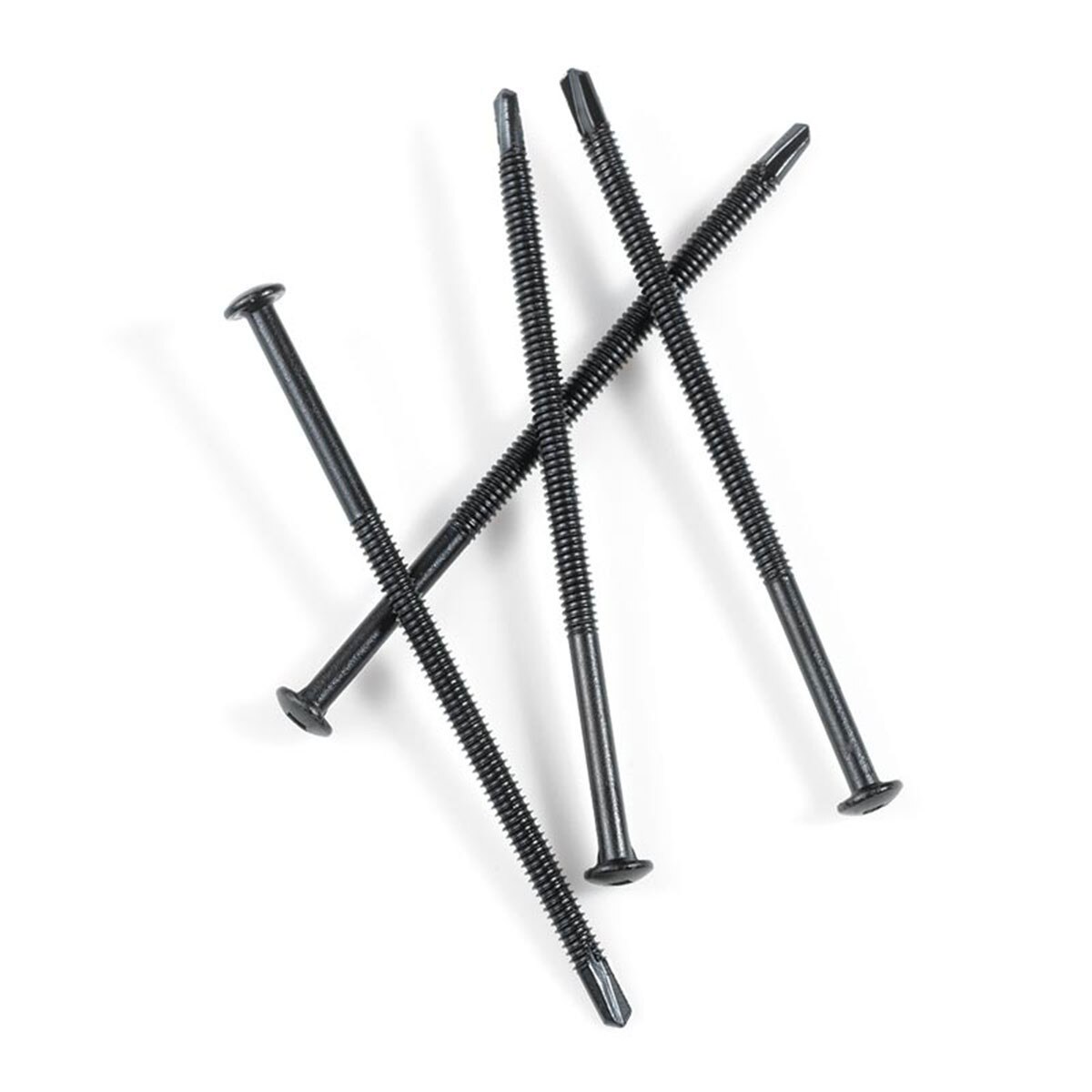

8" RetroDriller Fasteners OMG RDDP008B
The OMG RetroDriller Fastener is designed for attaching single-ply membrane systems to structural steel purlins in standing seam metal roof retrofit applications.
The OMG RetroDriller Fastener has a 1/2-in. (13mm) drill point that quickly drills into structural purlins. It is Factory Mutual approved.
Physical Data
- Fastener Length: 8" (200-mm)
- Thread Length: 3" (76-mm)
- Shank Diameter: .194-in. (4.92-mm)
- Thread Diameter: .230-in. (5.84-mm)
- Head Diameter: .425-in. (10.79-mm)
- Head Style: #3 Square Drive Low-Profile Truss Head
- Point Type: 1/2-in. (13-mm) drill point.
- Weight 32 pounds
Features & Benefits
- Depending on hardness/tensile of the purlins or bar joist, the RetroDriller Fastener may be used on steel up to 3/16-in. (5mm) thick.
- Low profile head has a smooth surface to ensure that there is no damage to the membrane.
- Each RetroDriller Fastener has a 1/2-in. (13mm) drill point. Fastener must be installed with a minimum 1" (25mm) penetration through the purlin.
- FM Approved.
Coating
- OMG CR-10 corrosion resistant coating passes the corrosion requirements of FM Approval Standard 4470 and ETAG 006.
Application
- The OMG RetroDriller Fastener must penetrate through the purlin a minimum of 1-in. (25mm).
- Using a screw gun with a maximum of 1800 RPM, drive the fastener through the purlin until a slight depression is seen around the plate.
- Note: Caution should be taken not to overdrive the fastener causing stress plate surface to deflect more than 1/16-in. (1.6mm). Prior to job bid, contact OMG to visit the job site for pullout test.
Plates & Accessories
- Use 3-in. (80mm) RhinoBond® (TPO or PVC) insulation plate or other plate as appropriate./li>
