#8-18 x 3/4" Phillips Oval Head Self-Drilling Tek Screws Zinc CR3+ Plated 5lb 1,200/Box | O86V
Details

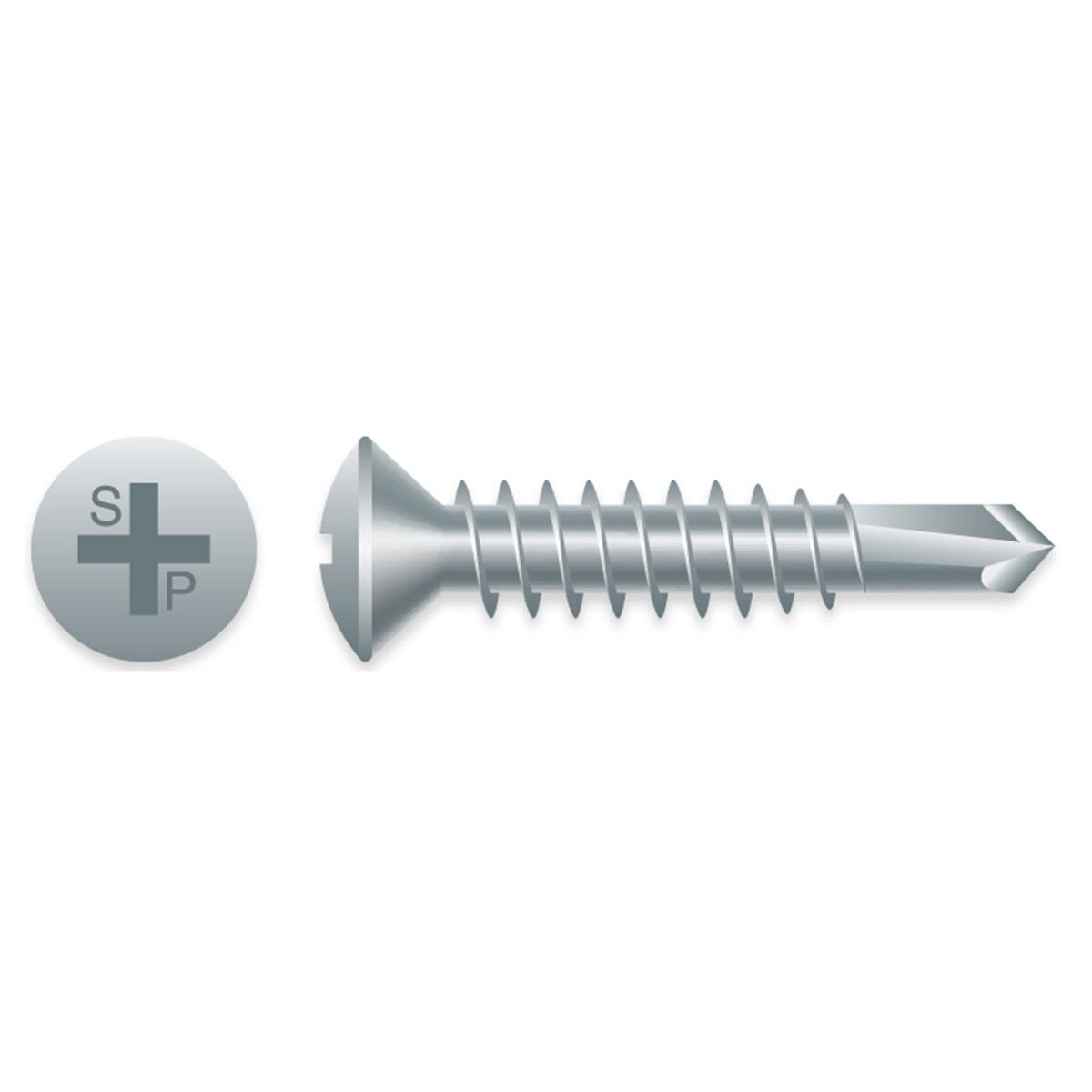

Strong-Point #8-18 x 3/4" Phillips Oval Head Self-Drilling Tek Screws Zinc CR3+ Plated
Strong-Point #8-18 x 3/4" Phillips Oval Head Self-Drilling Tek Screws are designed for fastening wood or metal to metal where a finished, countersunk appearance is desired. The #2 self-drilling point delivers fast, consistent drilling through steel thicknesses from .035" to .100". Zinc CR3+ plating provides corrosion protection by forming a protective barrier that helps prevent oxidation.
Features:
- #2 self-drilling point for light gauge steel applications
- Phillips oval head for use in countersunk holes
- Zinc CR3+ plated for corrosion resistance
- Engineered for dependable drilling and fastening performance
- Suitable for wood-to-metal and metal-to-metal fastening
- Precision formed threads for secure holding power
Details:
- Head Type: Phillips Oval Head
- Drive Type: Phillips
- Thread Diameter: #8
- Threads Per Inch: 18
- Length: 3/4"
- Point: #2 Self-Drilling
- Quantity: 1,200 pcs
- Weight: 5lb
Material Application:
- Attaches wood or metal to metal
- Drill Capacity: .035" – .100"
- Recommended Drill Speed: 2500 RPM
Specifications:
- Meets ASTM C1513 for cold-formed steel framing connections
- Meets F.I.P.-1000.7 for torsional strength & drill speed
- Meets SAE J78 for performance & dimensional specifications
- Meets ASTM A510 for carbon steel manufacturing
- Meets ASTM F1941 for corrosion resistance
- Zinc CR3+ Plated
- For countersunk holes
Zinc CR3+ plating provides a thin protective barrier that helps reduce oxidation of carbon steel. Corrosion resistance is limited and not suitable for ACQ Treated Lumber.
Coating Details:
- Coating: Clear Zinc
- Salt Spray: 24 hrs.
- Kesternich: N/A
- Application: Used indoors for dry, non-corrosive environments
- Clear Zinc is an electrically applied plating that forms a protective barrier to prevent oxidation of the steel.
