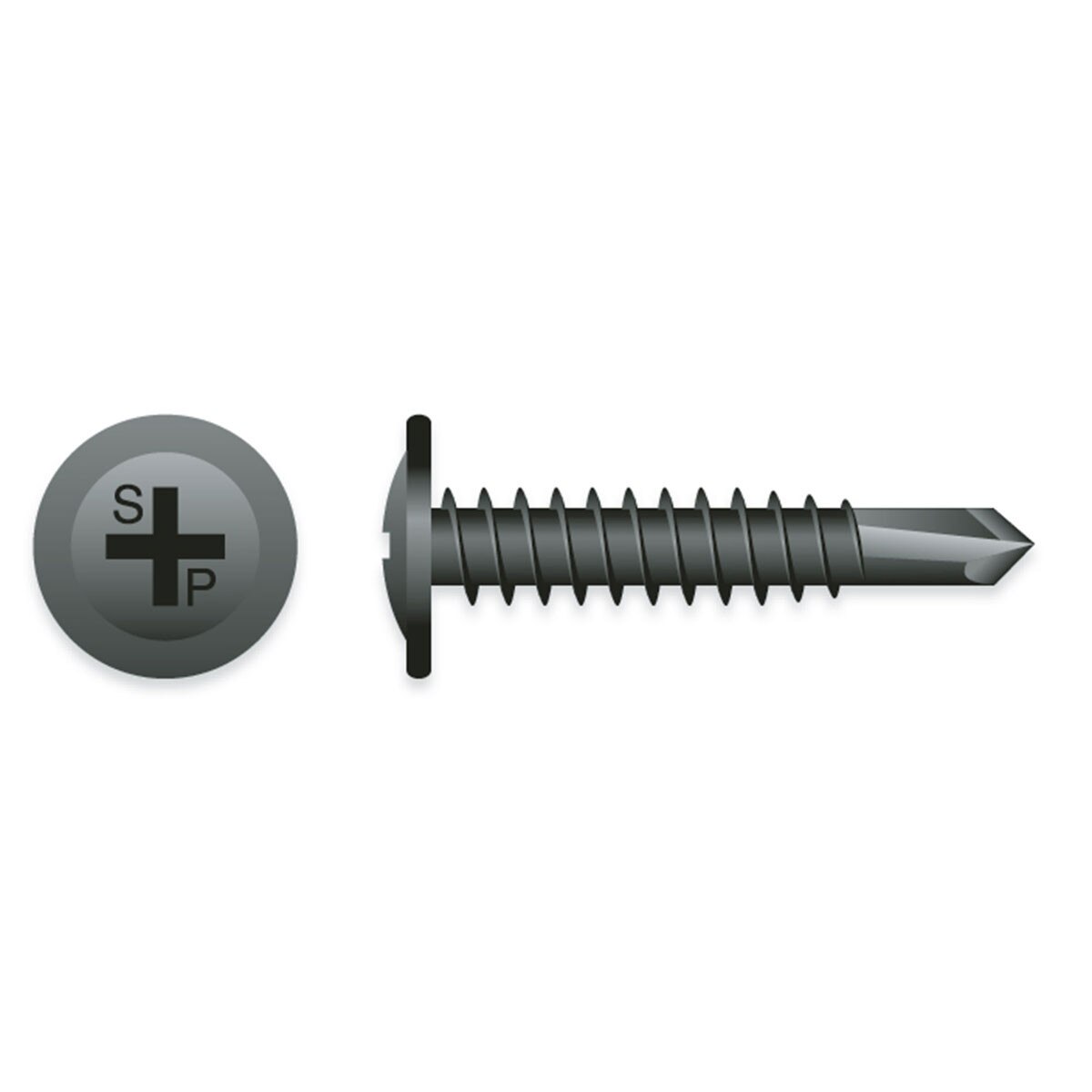

#8-18 x 1" Phillips Modified Truss (R/W) Head Self-Drilling Screws Black Oxide 5lb 800/Box | M84BV

Strong-Point #8-18 x 1" Phillips Modified Truss (R/W) Head Self-Drilling Screws Black Oxide Coated

Strong-Point #8-18 x 1" Phillips Modified Truss (R/W) Head Self-Drilling Screws are designed as finishing screws for applications where aesthetics are important. The modified truss head provides a wide bearing surface for improved holding power and reduced pull-through in lath and light-gauge steel applications. The #2 self-drilling point delivers fast, consistent drilling through steel thicknesses from .035" to .100". Black oxide coating is a conversion coating used to add mild corrosion resistance while providing a clean black finish.

• #2 self-drilling point for light gauge steel applications
• Modified Truss (R/W) head provides a wide bearing surface
• Designed for finish applications where appearance matters
• Suitable for wire lath and metal-to-metal fastening applications
• Black oxide coated for appearance and mild corrosion resistance
• Engineered for dependable drilling and fastening performance

• Head Type: Modified Truss (R/W) Head
• Head Size: 0.42" Diameter
• Drive Type: Phillips
• Thread Diameter: #8
• Threads Per Inch: 18
• Length: 1"
• Point: #2 Self-Drilling
• Quantity: 800 pcs
• Weight: 5lb

• Finishing screw for use when aesthetics are important
• Drill Capacity: .035" – .100"
• Recommended Drill Speed: 2500 RPM

• Meets ASTM C1513 for cold-formed steel framing connections
• Meets F.I.P.-1000.7 for torsional strength & drill speed
• Meets SAE J78 for performance & dimensional specifications
• Meets ASTM A510 for carbon steel manufacturing
• Black Oxide Coated

• Coating: Black Oxide
• Salt Spray: 24 hrs.
• Kesternich: N/A
• Application: Used indoors for dry, non-corrosive environments
• Black oxide is a conversion coating used to add mild corrosion resistance and for appearance.
