#6 x 1-7/8" PHILLIPS BUGLE HEAD ZINC PLATED S/D SCREWS 4,000ct | D617Z
Details
#6-20 x 1-7/8" Phillips Bugle Head Tek screws, Zinc Plated

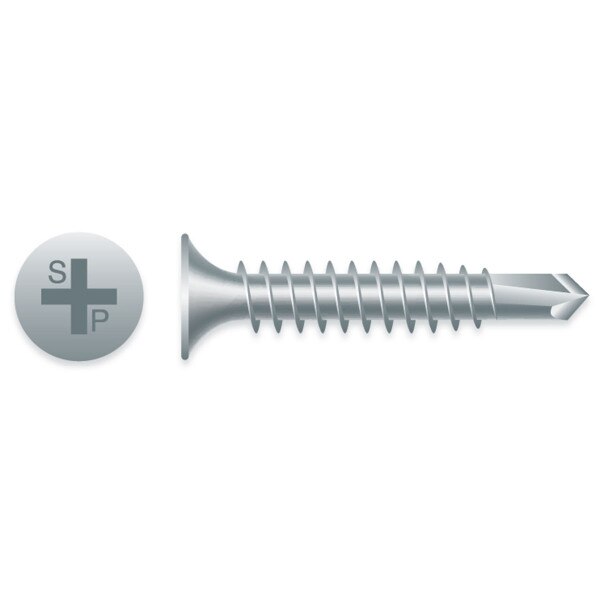

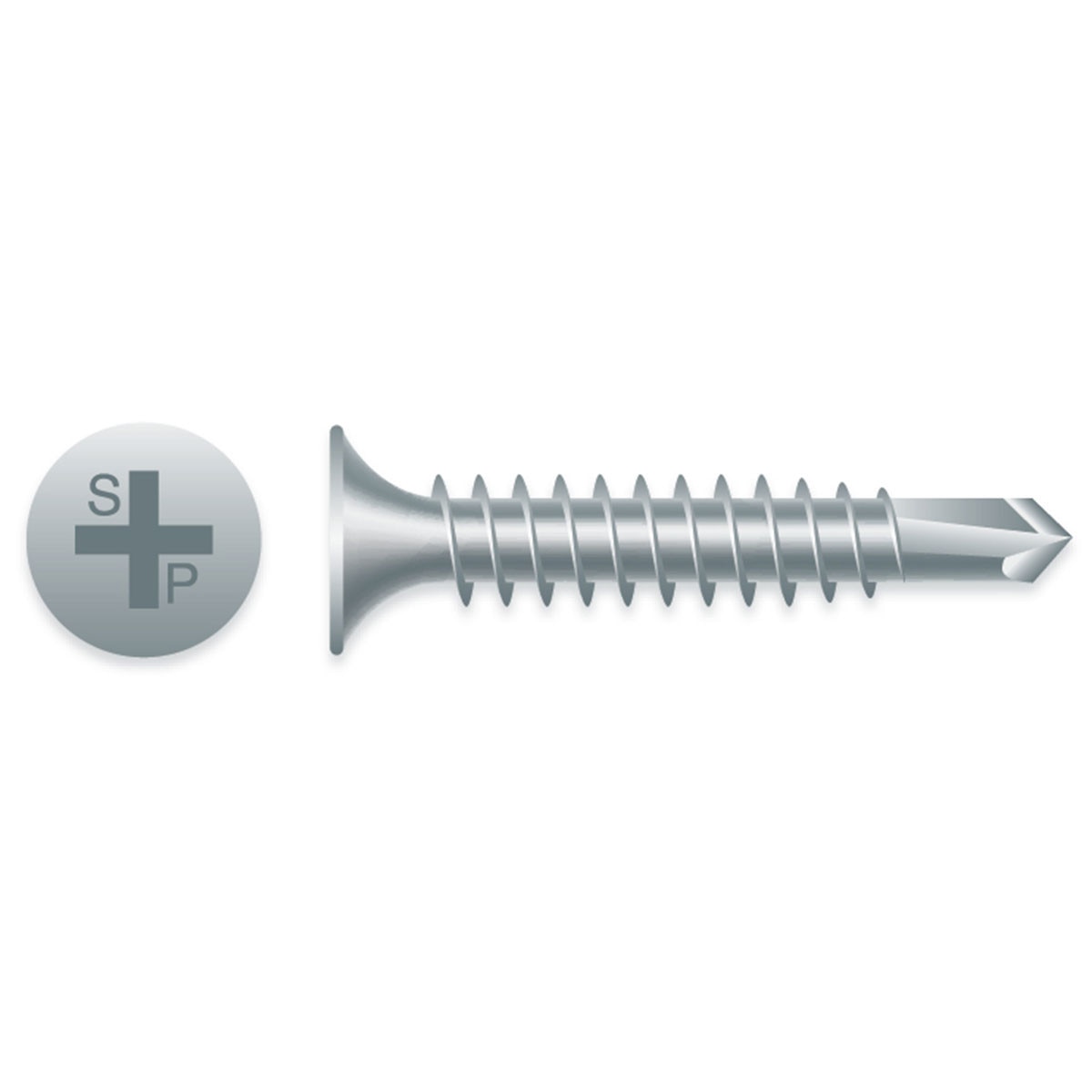

Product image is a likeness. Actual screw is not shown. Some screw lengths beyond 1-5/8" may follow the industry standard 2/3 partial thread length rule. Contact us if Full Thread is required for lengths beyond 1-5/8".
Features:
- Self-Drilling point for metal applications
- Low corrosion resistance
Details:
- Head Type: Bugle
- Drive Type: #2 Phillips
- Thread Diameter: #6
- Thread Per Inch: #20
- Thread Type: Fine
- Length: 1-7/8"
- Point: #2 Self-Drilling
- Quantity: 4,000 pcs
- Weight: 23 pounds [approx.]
Material Application:
- Attaches gypsum, insulation, wood to metal.
- Use indoors for dry, non-corrosive applications.
- Drill Capacity: .035 - .090
- Drill Speed: 2500 RPM
Specifications:
- ICC-ES Evaluation Report: ESR-3528
- Meets ASTM C 1513 for cold-formed steel framing connections
- Meets F.I.P.-1000.7 for torsional strength & drill speed
- Meets SAE J78 for performance & dimensional specifications
- Meets ASTM C 954 for attaching gypsum board to steel studs
- Zinc Plated
Zinc plated is a plating that is applied electrically to fasteners that prevents oxidation of steel by forming a protective barrier. Not recommended for ACQ Treated Lumber.
