#6 x 1-5/8" PARTIAL THREAD SQUARE TRIM HEAD ZINC S/D SCREWS 5,000ct | T1QZP
Details

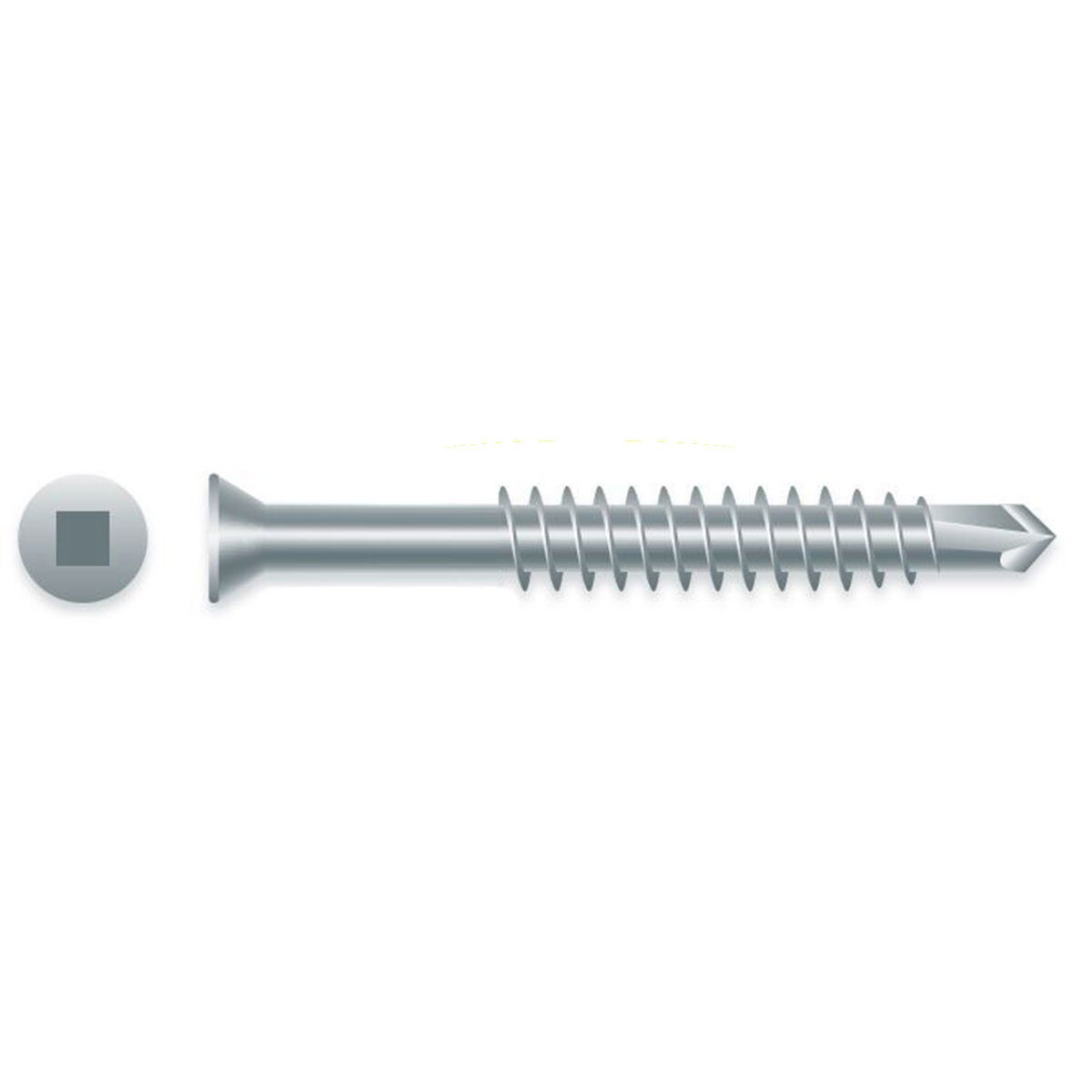

Square Drive Trim Head Screws, Zinc Plated, Partial Thread
Features:
- Self-Drilling for wood to steel applications
- Partial Thread
- Low corrosion resistance
Details:
- Head Type: Trim
- Head Diameter: .220"
- Drive: #1 Square
- Thread Diameter: #6
- Threads Per Inch: 20
- Length: 1-5/8"
- Point: #2 Drill Point
- Quantity: 5,000 pcs
- Weight: 23 pounds [approx.]
Material Application:
- Attaches wood to metal
- Drill Capacity: .035 - .090
- Drill Speed: 2500 RPM
Specifications:
- Meets F.I.P.-1000.7 for torsional strength & drill speed
- Meets SAE J78 for performance & dimensional specifications
- Meets ASTM A 510 for carbon steel manufacturing
- Meets ASTM F1941 for corrosion resistance
- Zinc Plated
Zinc plated is a plating that is applied electrically to fasteners that prevents oxidation of steel by forming a protective barrier. Not recommended for ACQ Treated Lumber.
