#6-20 x 1-7/8" Phillips Bugle Head Self-Drilling Drywall Screws Ruspert Coated 5lb 700/Box | D617RV
Details
Strong-Point #6-20 x 1-7/8" Phillips Bugle Head Self-Drilling Drywall Screws Ruspert Coated
Strong-Point #6-20 x 1-7/8" Phillips Bugle Head Self-Drilling Drywall Screws are designed for attaching exterior sheathing to metal. The bugle head design helps prevent tearing of sheathing facing material while providing a clean, professional finish. The #2 self-drilling point delivers fast, consistent drilling through steel thicknesses from .035" to .090". Ruspert coating is a three-layer coating system consisting of a metallic zinc layer, anti-corrosion chemical conversion film, and baked ceramic surface coating for superior corrosion protection.

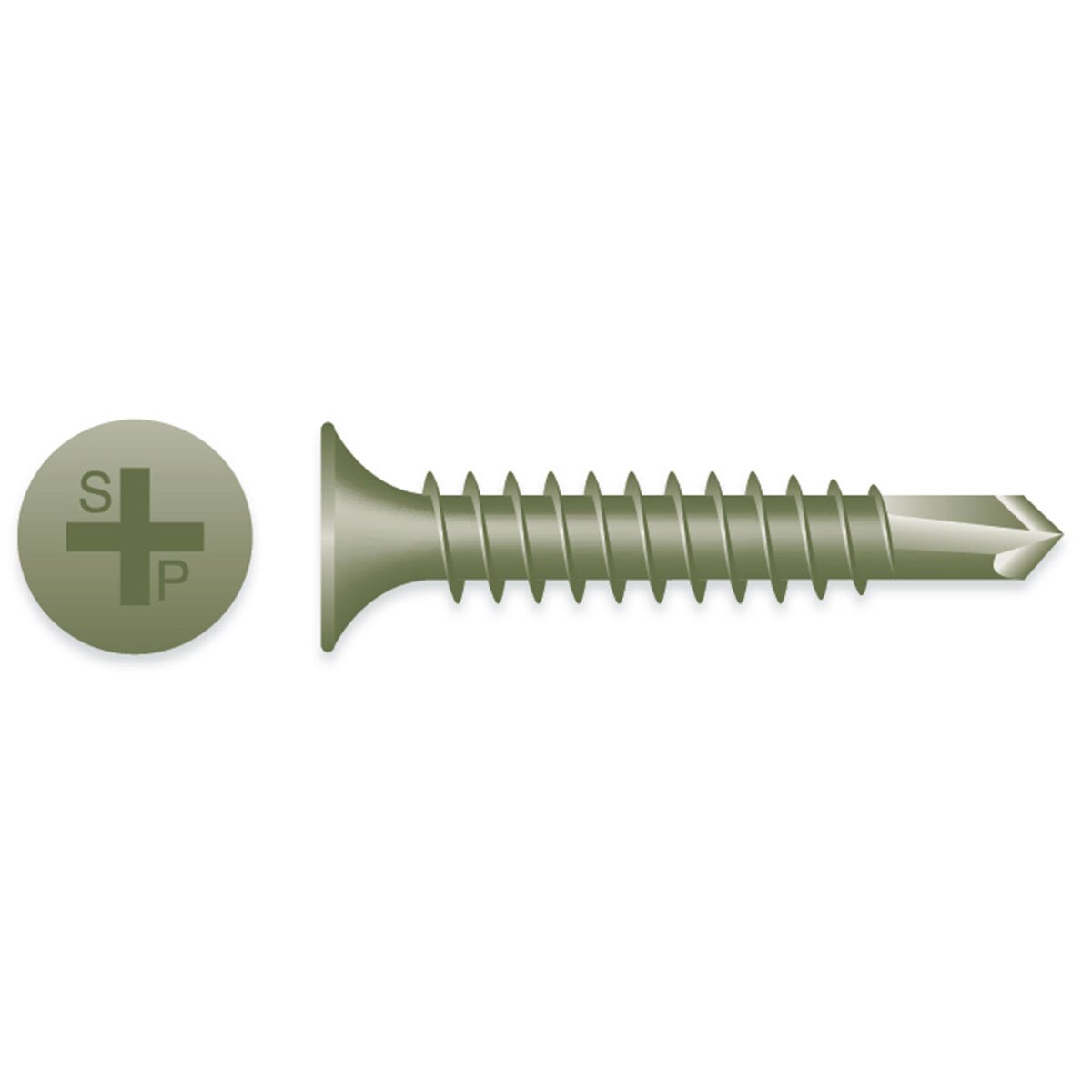

Product image is a likeness. Actual screw is not shown. Some screw lengths beyond 1-5/8" may follow the industry standard 2/3 partial thread length rule. Contact us if Full Thread is required for lengths beyond 1-5/8".
Features:
- #2 self-drilling point for light gauge steel applications
- Bugle head design reduces material tear-out
- Designed for attaching exterior sheathing to metal
- Ruspert coated for superior corrosion resistance
- Exceeds 1,000 hours salt spray resistance
- Engineered for dependable drilling and fastening performance
Details:
- Head Type: Bugle Head
- Drive Type: Phillips
- Thread Diameter: #6
- Threads Per Inch: 20
- Length: 1-7/8"
- Point: #2 Self-Drilling
- Quantity: 700 pcs
- Weight: 5lb
Material Application:
- Attaches exterior sheathing to metal
- Drill Capacity: .035" – .090"
- Recommended Drill Speed: 2500 RPM
Specifications:
- Meets ASTM C1513 for cold-formed steel framing connections
- Meets F.I.P.-1000.7 for torsional strength & drill speed
- Meets SAE J78 for performance & dimensional specifications
- Meets ASTM C954 for attaching gypsum board to steel studs
- Exceeds 1,000 hours salt spray resistance
- Ruspert Coated
Ruspert is a three-layer coating system consisting of a metallic zinc layer, anti-corrosion chemical conversion film, and baked ceramic surface coating that provides exceptional corrosion resistance for demanding environments.
Coating Details:
- Coating: Ruspert
- Salt Spray: 1000 hrs.
- Kesternich: N/A
- Application: Indoor/Outdoor high corrosive environments
- Ruspert is a three-layer system consisting of a metallic zinc layer, anti-corrosion chemical conversion film, and baked ceramic surface coating.
