#6-20 x 1-1/8" Phillips Bugle Head Self-Drilling Tek Screws Zinc CR3+ Plated 5lb 1,250/Box | D611ZV
Details

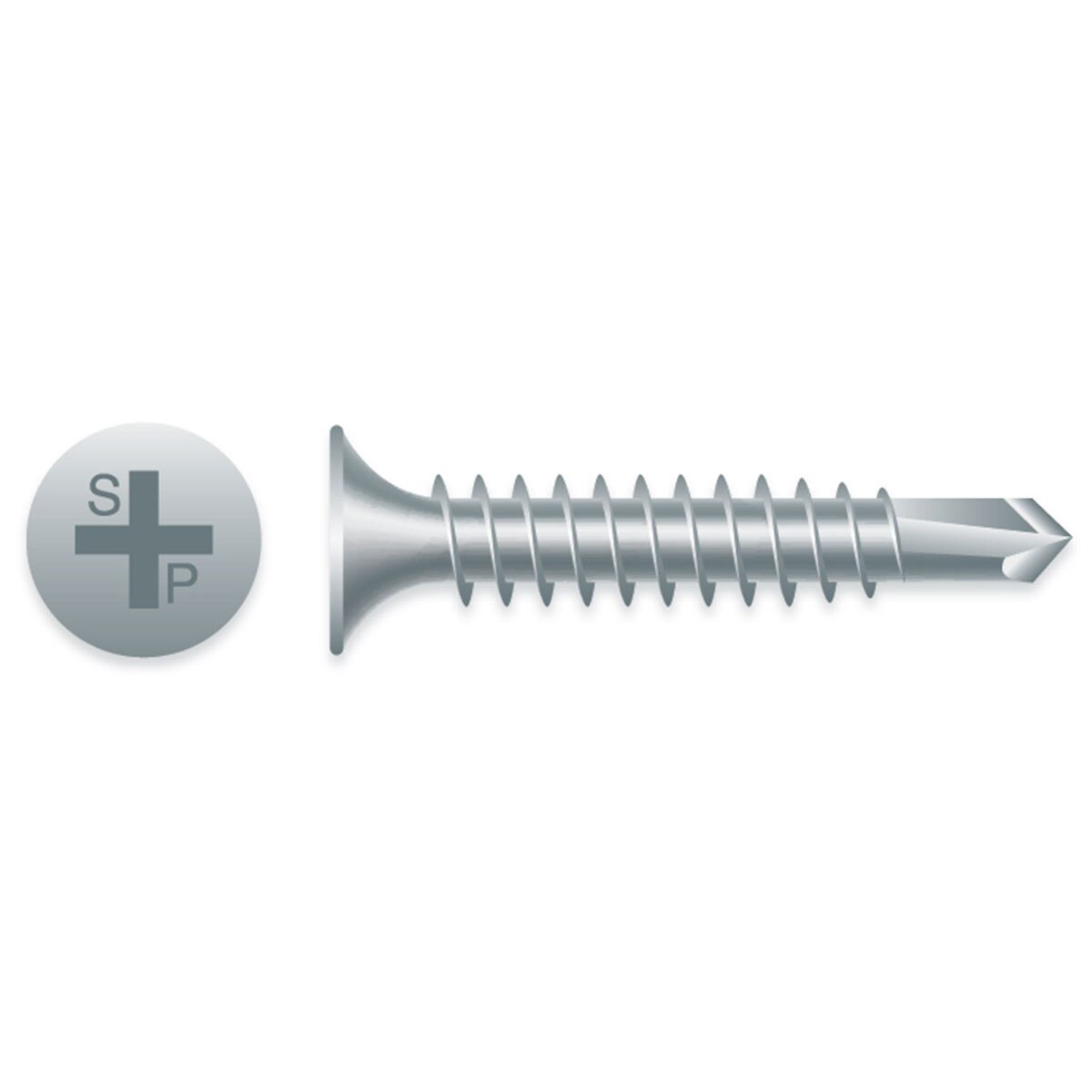

Strong-Point #6-20 x 1-1/8" Phillips Bugle Head Self-Drilling Tek Screws Zinc CR3+ Plated
Strong-Point #6-20 x 1-1/8" Phillips Bugle Head Self-Drilling Tek Screws are designed for attaching gypsum, insulation, and wood to metal. The bugle head design helps prevent damage to gypsum board paper while providing a clean finished appearance. The #2 self-drilling point delivers fast, consistent drilling through steel thicknesses from .035" to .090". Zinc CR3+ plating provides corrosion protection by forming a protective barrier that helps prevent oxidation.
Features:
- #2 self-drilling point for light gauge steel applications
- Bugle head design helps prevent tearing of drywall facing paper
- Designed for attaching gypsum, insulation, and wood to metal
- Zinc CR3+ plated for corrosion resistance
- Ideal for drywall and interior fastening applications
- Engineered for dependable drilling and fastening performance
Details:
- Head Type: Bugle Head
- Drive Type: Phillips
- Thread Diameter: #6
- Threads Per Inch: 20
- Length: 1-1/8"
- Point: #2 Self-Drilling
- Quantity: 1,250 pcs
- Weight: 5lb
Material Application:
- Attaches gypsum, insulation, and wood to metal
- Drill Capacity: .035" – .090"
- Recommended Drill Speed: 2500 RPM
Specifications:
- ICC-ES Evaluation Report: ESR-3528
- Meets ASTM C1513 for cold-formed steel framing connections
- Meets F.I.P.-1000.7 for torsional strength & drill speed
- Meets SAE J78 for performance & dimensional specifications
- Meets ASTM C954 for attaching gypsum board to steel studs
- Zinc CR3+ Plated
Zinc CR3+ plating provides a thin protective barrier that helps reduce oxidation of carbon steel. Corrosion resistance is limited and not suitable for ACQ Treated Lumber.
Coating Details:
- Coating: Clear Zinc
- Salt Spray: 24 hrs.
- Kesternich: N/A
- Application: Used indoors for dry, non-corrosive environments
- Clear Zinc is an electrically applied plating that forms a protective barrier to prevent oxidation of the steel.
