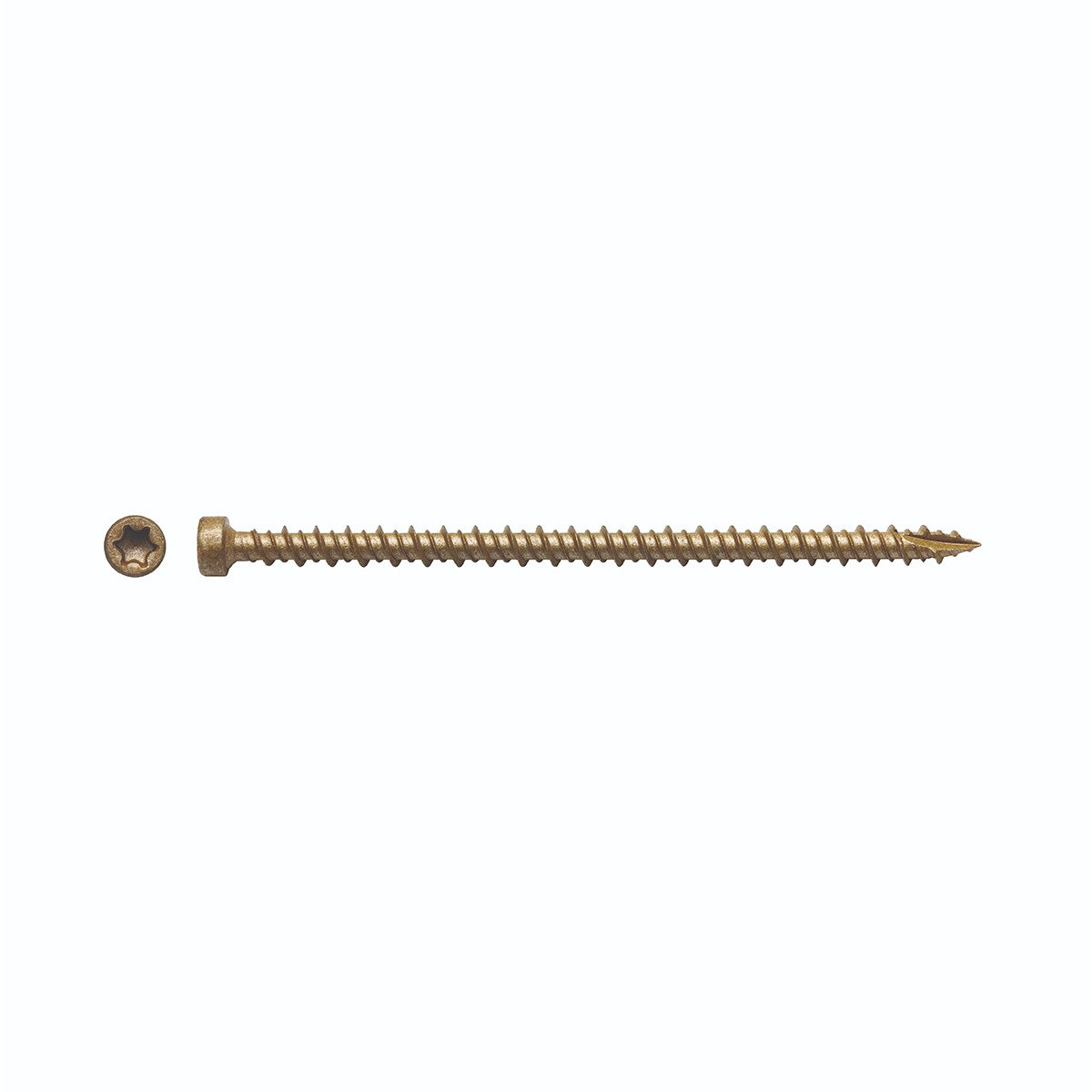

#14 x 4-1/2" Bronze TRX Truss Screw 500ct Bucket | TRX14412-BB

Big Timber TRX Truss Screw

TRX Truss Screws are engineered for structural truss and plate connections, delivering high tensile and shear strength with a fully threaded shank for superior holding power between wall framing members and roof trusses. The cylinder‑style head easily countersinks into wall plates to reduce interference with wall finishes. TRX screws use 3X Bronze coating on 4‑1/2" sizes and 3X Hi‑Viz coating on 6" sizes for ground‑level inspector visibility. Each package includes a plastic installation guide tool and a 2" T‑30 bit to ensure proper installation. DRJ certified under TER 2411‑123 and compliant with IBC and IRC building codes.

Features:

• Structural truss screw for plate‑to‑truss and stud‑to‑plate connections
• Heat‑treated, hardened steel for high tensile and shear strength
• 3X Bronze coating on 4‑1/2" screws
• 3X Hi‑Viz coating on 6" screws for inspector visibility
• Cylinder‑style head countersinks into wall plates
• Fully threaded shank for maximum holding power
• Type‑17 point minimizes torque for fast starts
• Peak Performance™ lubrication for smoother driving
• Installation guide tool and 2" T‑30 bit included
• DRJ certified under TER 2411‑123
• IBC and IRC compliant

SKU Specifications:

• Drive Size: T‑30
• Diameter: #14
• Screw Length: 4‑1/2"
• Thread Length: Full
• Coating: 3X Bronze
• Quantity: 500
• Weight: 16.85 lbs
• Bit Included: Yes (2" T‑30)
• Installation Guide Tool Included: Yes

Primary Applications:

• Stud‑to‑bottom plate connections (4‑1/2")
• Stud‑to‑top plate connections (6")
• Double top plate to truss or rafter connections (6")
• Roof trusses
• Wall framing
• Structural plate connections

Material: Steel
Product Color: Bronze or Hi‑Viz (depending on length)
Certification: DRJ Third‑Party Certified (TER 2411‑123)
Prop 65 Warning: This product contains a chemical known to the State of California to cause cancer, or birth defects or other reproductive harm
Ter Number: 2411‑123

Compatible with treated lumber. For areas within one mile of saltwater, near swimming pools, exposure to corrosive chemicals, or other environments where corrosion is more likely to occur, use the proper size, grade, and type of Big Timber Stainless Steel Fasteners. Stainless available as SCTX. TRX is not available in stainless.
