#14 x 2-3/8" Quik Drive Strong-Drive TB WOOD-TO-STEEL Screws Black-Phosphate 750ct | TBP1460S

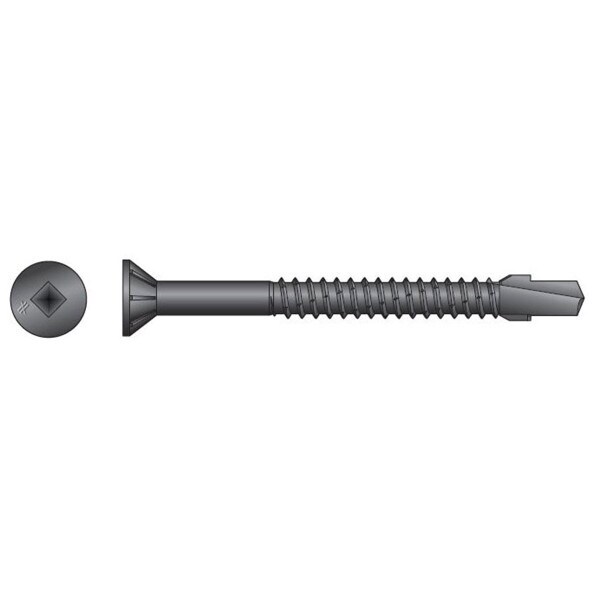

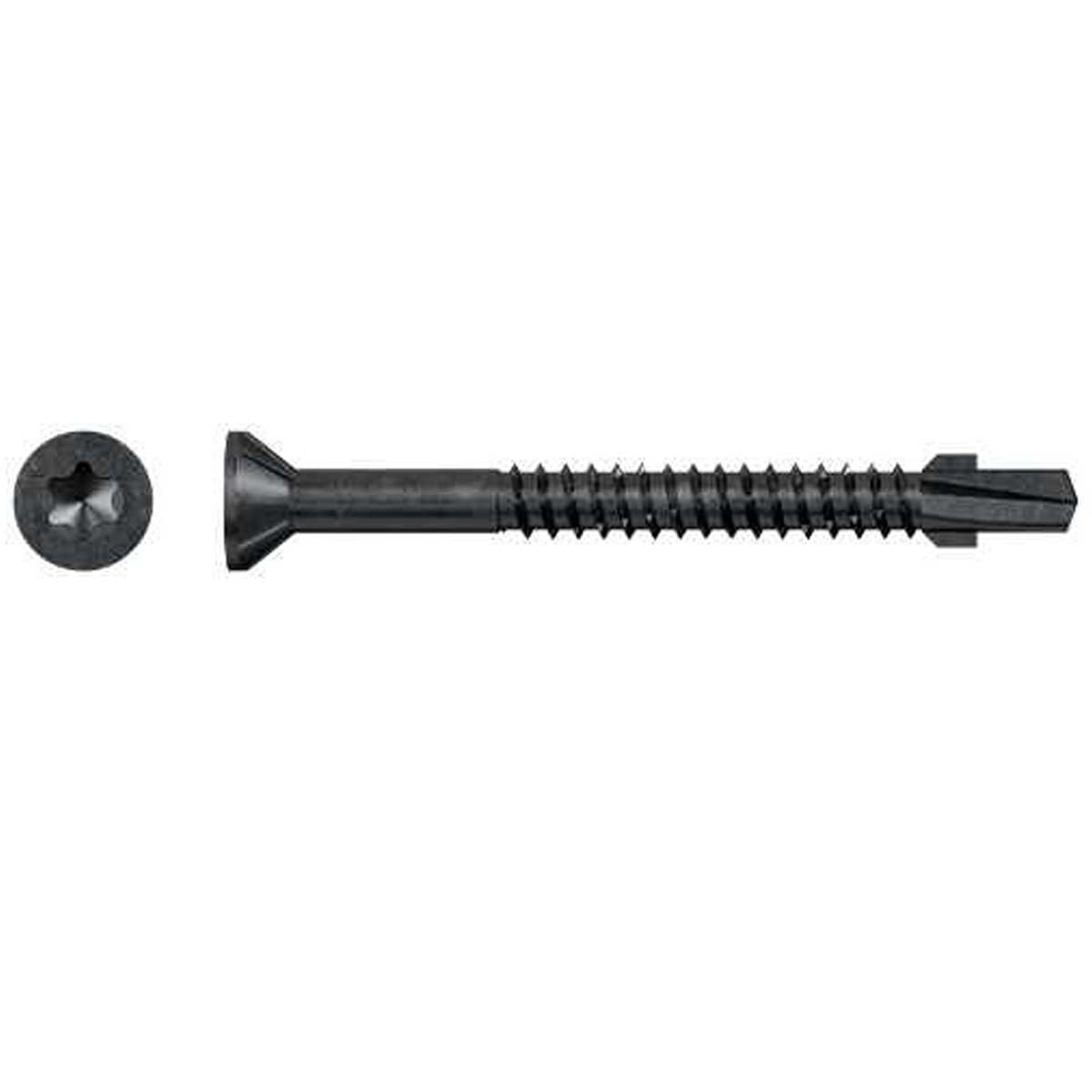

Quik Drive® Strong‑Drive® TB Wood‑to‑Steel Screws — TBP1460S

The Strong‑Drive® TB Wood‑to‑Steel Screw (TBP1460S) is engineered for dependable fastening of wood to hot‑rolled steel and is fully compatible with the Simpson Strong‑Tie® Quik Drive® auto‑feed screw driving system. This #14 diameter, 2‑3/8 in. screw features a Black Phosphate coating designed for dry, interior, non‑corrosive environments.

Product Specifications

• Coating/Material: Black Phosphate Coating
• Screw Size: #14
• Length: 2‑3/8 in.
• Head Diameter: 0.460 in.
• Drive Type: T30 6‑Lobe
• Head Type: Flat Head
• Thread Type: Tapping Threads
• Threads Per Inch (TPI): 14
• Max. Grip Length: 1.645 in.¹
• Point Type: Drill Point with Wings
• Point Size: #4
• Compatible Tools: Quik Drive® PROHSD60, PROHSD60M
• Packaging Quantity: 750 screws per box

Key Features

• Flat head with nibs for smooth, controlled countersinking
• T30 6‑lobe drive reduces cam‑out and improves installation efficiency
• #4 drill point with wings for fast penetration into steel
• Tapping threads for strong engagement in wood‑to‑steel fastening

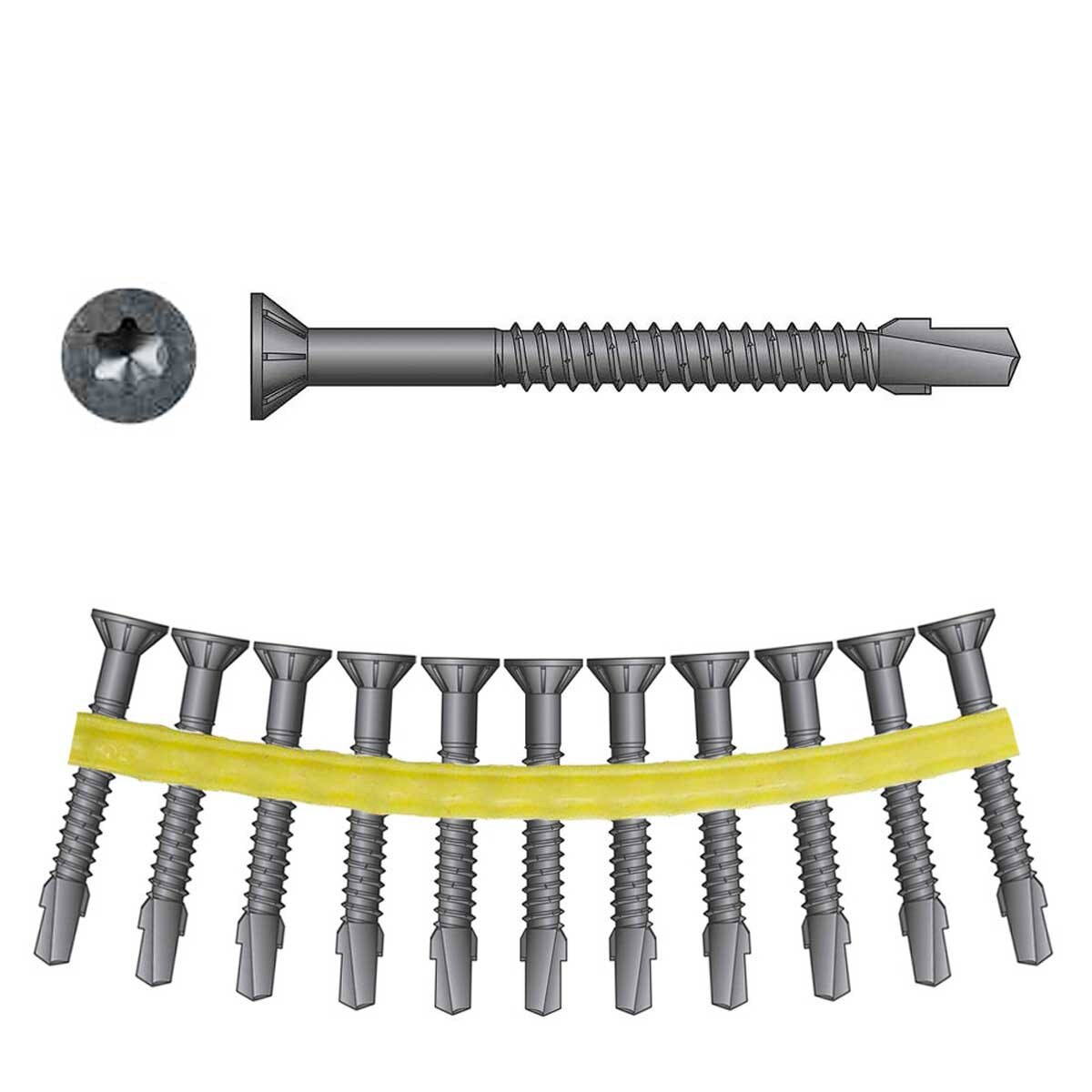

• Straight‑collated for smooth feeding in Quik Drive® systems

Compatible Quik Drive® Tools

• PROHSD60
• PROHSD60M

Recommended Applications

• Wood‑to‑steel fastening
• Interior, dry‑environment structural connections
• General wood‑to‑steel applications where corrosion exposure is minimal

Footnotes

1. Grip length includes side member, steel thickness, air gaps (if any), and allowance for three threads protruding through the steel.
