#14 x 1-1/4" HWH ZINC PLATED S/D SCREWS 2,000ct | H1420
Details

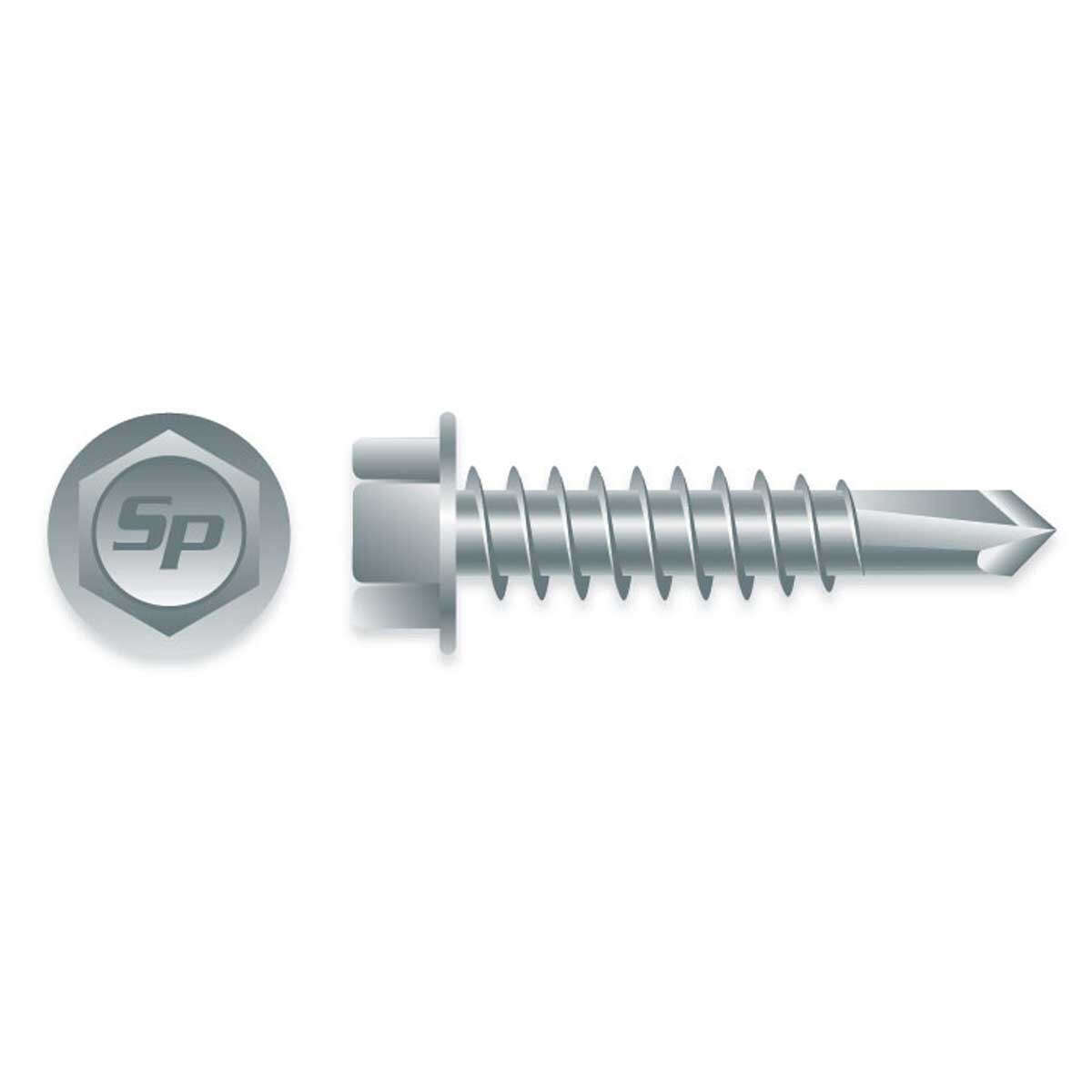

#14-14 x 1-1/4" Unslotted Indented Hex Washer Head Tek screws, Zinc Plated
Features:
- Self-Drilling for metal to metal applications
- Hex washer head provides excellent driving stability
- Precision cutting drill point delivers high performance with less physical effort.
- Low corrosion resistance
Details:
- Head Type: Unslotted Indented Hex Washer Head
- Drive Size: 3/8"
- Thread Diameter: #14
- Threads Per Inch: 14
- Length: 1-1/4"
- Point: #3 Self-Drilling
- Quantity: 2,000 pcs
- Weight: 45 pounds [approx.]
Material Application:
- Attaches metal to metal
- Drill Capacity: .060 - .220
- Drill Speed: 1750 RPM
Specifications:
- ICC-ES Evaluation Report: ESR-3528
- Meets ASTM C 1513 for cold-formed steel framing connections
- Meets F.I.P.-1000.7 for torsional strength & drill speed
- Meets SAE J78 for performance & dimensional specifications
- Meets ASTM A 510 for carbon steel manufacturing
- Meets ASTM F1941 for corrosion resistance
- Zinc Plated
Zinc plated is a plating that is applied electrically to fasteners that prevents oxidation of steel by forming a protective barrier. Not recommended for ACQ Treated Lumber.
