#14‑14 x 1‑1/2" HWH Self‑Drilling Tek Screws w/Bonded Washer Zinc CR3+ Plated 2,000ct | HA1424
Details

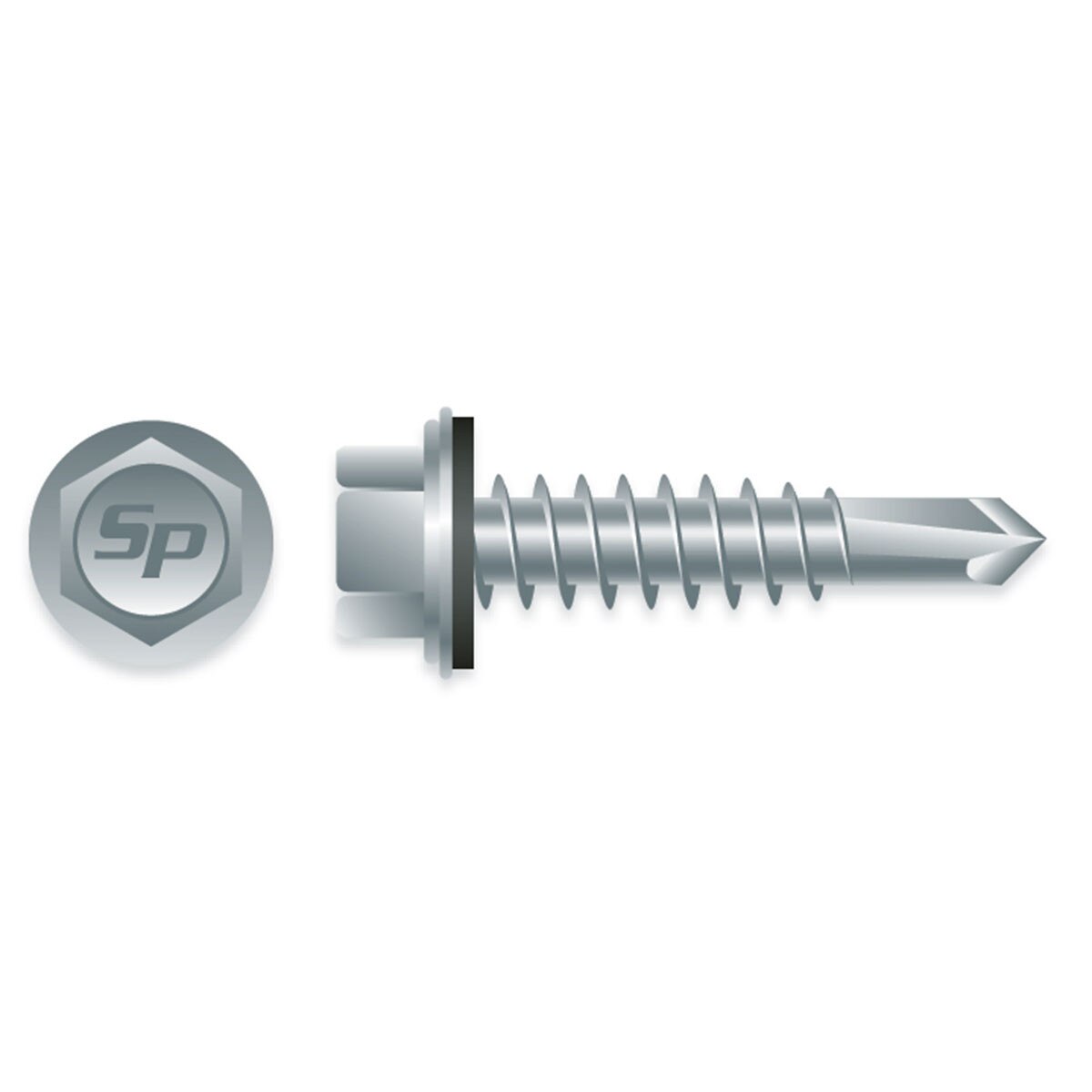

Strong‑Point #14‑14 x 1-1/2" Unslotted Indented Hex Washer Head Self‑Drilling Tek Screws w/Bonded Washer Zinc CR3+ Plated
Strong‑Point #14‑14 x 1-1/2" Unslotted Indented Hex Washer Head Tek screws with bonded sealing washers are engineered for heavy‑duty metal‑to‑metal fastening where a leak‑proof seal is required. The #3 self‑drilling point delivers fast, consistent drilling performance through steel thicknesses ranging from .060" to .220". Zinc CR3+ plating provides basic corrosion resistance suitable for interior applications.
Features:
- #3 self‑drilling point for heavier‑gauge steel
- Unslotted indented hex washer head for stable driving
- Bonded washer creates a leak‑proof seal
- Precision‑formed drill point improves start speed
- Zinc CR3+ plating provides low corrosion resistance
Details:
- Head Type: Unslotted Indented Hex Washer Head
- Drive Size: 3/8"
- Thread Diameter: #14
- Threads Per Inch: 14
- Length: 1-1/2"
- Point: #3 Self‑Drilling
- Bonded Washer O.D.: 5/8"
- Quantity: 2,000 pcs
- Weight: 45lb
Material Application:
- Attaches metal to metal
- Drill Capacity: .060" – .220"
- Recommended Drill Speed: 1750 RPM
Specifications:
- ICC‑ES Evaluation Report: ESR‑3528
- Meets ASTM C1513 for cold‑formed steel framing connections
- Meets F.I.P.-1000.7 for torsional strength & drill speed
- Meets SAE J78 for performance & dimensional specifications
- Meets ASTM A510 for carbon steel manufacturing
- Meets ASTM F1941 for corrosion resistance
- Zinc CR3+ Plated
The bonded washer provides a sealing barrier that prevents water intrusion at the connection point.
Zinc CR3+ plating provides a thin protective barrier that helps reduce oxidation of carbon steel. Corrosion resistance is limited and not suitable for ACQ Treated Lumber.
Coating Details:
- Coating: Clear Zinc
- Salt Spray: 24 hrs.
- Kesternich: N/A
- Application: Used indoors for dry, non‑corrosive environments
- Clear Zinc is an electrically applied plating that forms a protective barrier to prevent oxidation of the steel.
