#14‑14 x 1‑1/2" HWH Self‑Drilling Tek Screws Zinc CR3+ Plated 2,000ct | H1424
Details

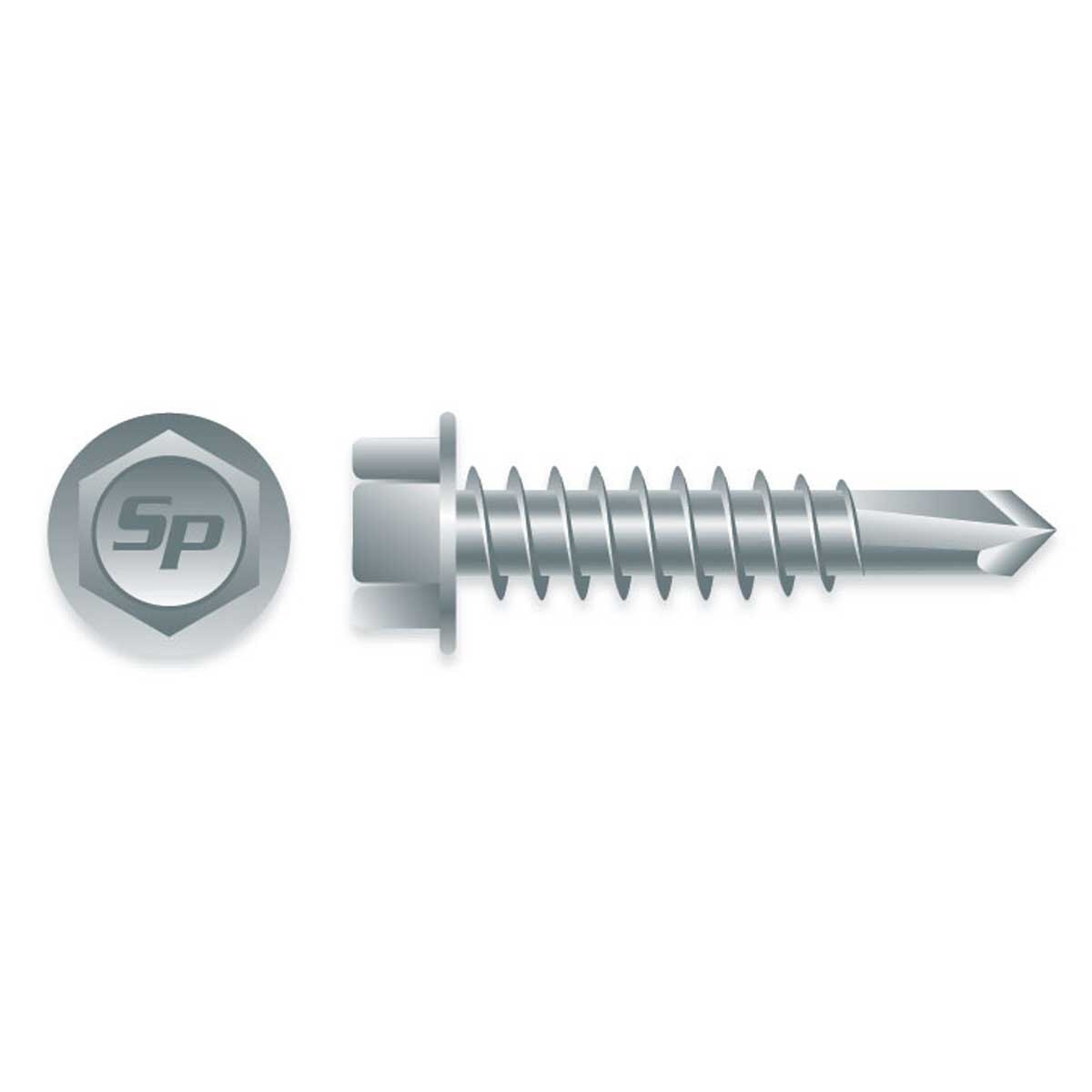

Strong‑Point #14‑14 x 1‑1/2" Hex Washer Head Self‑Drilling Tek Screws Zinc CR3+ Plated
Strong‑Point #14‑14 x 1‑1/2" Hex Washer Head Self‑Drilling Tek screws are manufactured for heavy‑duty metal‑to‑metal fastening in medium‑gauge and heavier steel. The #3 drill point cuts smoothly through steel thicknesses from .060" to .220", providing consistent performance, reduced walking, and reliable drilling speed. Zinc CR3+ plating offers basic corrosion resistance suitable for interior applications.
Features:
- #3 self‑drilling point for consistent penetration in heavier steel
- Hex Washer Head for stable driving and controlled seating
- 1‑1/2" length for extended reach
- Precision‑formed drill point improves start speed and reduces wandering
- Zinc CR3+ plating provides low corrosion resistance
Details:
- Head Type: Hex Washer Head
- Drive Size: 3/8"
- Thread Diameter: #14
- Threads Per Inch: 14
- Length: 1‑1/2"
- Point: #3 Self‑Drilling
- Quantity: 2,000ct
- Weight: 40lb
Material Application:
- Heavy‑duty metal‑to‑metal fastening
- Drill Capacity: .060" – .220"
- Recommended Drill Speed: 1750 RPM
Specifications:
- ICC‑ES ESR‑3528
- ASTM C1513
- F.I.P.‑1000.7
- SAE J78
- ASTM A510
- ASTM F1941 Zinc CR3+
Zinc CR3+ plating provides a thin protective barrier that helps reduce oxidation of carbon steel. Corrosion resistance is limited and not suitable for ACQ Treated Lumber.
Coating Details:
- Coating: Clear Zinc
- Salt Spray: 24 hrs.
- Kesternich: N/A
- Application: Used indoors for dry, non‑corrosive environments
- Clear Zinc is an electrically applied plating that forms a protective barrier to prevent oxidation of the steel.
