#12‑14 x 4" HWH Self‑Drilling Tek Screws Zinc CR3+ Plated 500ct | H1264
Details

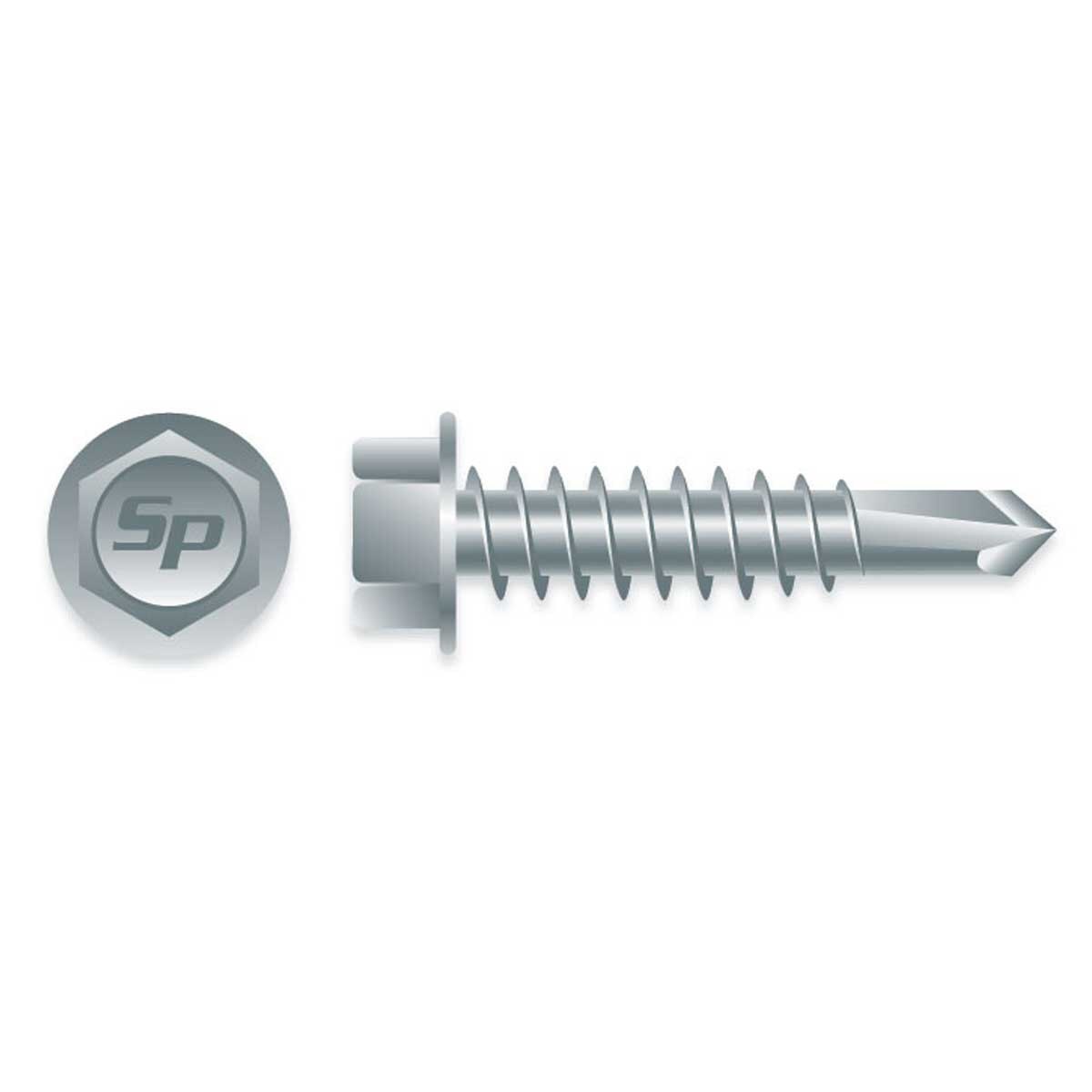

Strong‑Point #12‑14 x 4" Hex Washer Head Self‑Drilling Tek Screws Zinc CR3+ Plated
Strong‑Point #12‑14 x 4" Hex Washer Head Self‑Drilling Tek screws are manufactured for dependable extra‑long‑reach metal‑to‑metal fastening in light‑gauge and medium‑gauge steel. The #3 drill point cuts smoothly through steel thicknesses from .035" to .210", providing consistent performance, reduced walking, and reliable drilling speed. Zinc CR3+ plating offers basic corrosion resistance suitable for interior applications.
Features:
- #3 self‑drilling point for consistent penetration
- Hex Washer Head for stable driving and controlled seating
- 4" length for maximum reach
- Precision‑formed drill point improves start speed and reduces wandering
- Zinc CR3+ plating provides low corrosion resistance
Details:
- Head Type: Hex Washer Head
- Drive Size: 3/8"
- Thread Diameter: #12
- Threads Per Inch: 14
- Length: 4"
- Point: #3 Self‑Drilling
- Quantity: 500ct
- Weight: 16lb
Material Application:
- Metal‑to‑metal fastening
- Drill Capacity: .035" – .210"
- Recommended Drill Speed: 2000 RPM
Specifications:
- ICC‑ES ESR‑3528
- ASTM C1513
- F.I.P.‑1000.7
- SAE J78
- ASTM A510
- ASTM F1941 Zinc CR3+
Zinc CR3+ plating provides a thin protective barrier that helps reduce oxidation of carbon steel. Corrosion resistance is limited and not suitable for ACQ Treated Lumber.
Coating Details:
- Coating: Clear Zinc
- Salt Spray: 24 hrs.
- Kesternich: N/A
- Application: Used indoors for dry, non‑corrosive environments
- Clear Zinc is an electrically applied plating that forms a protective barrier to prevent oxidation of the steel.
