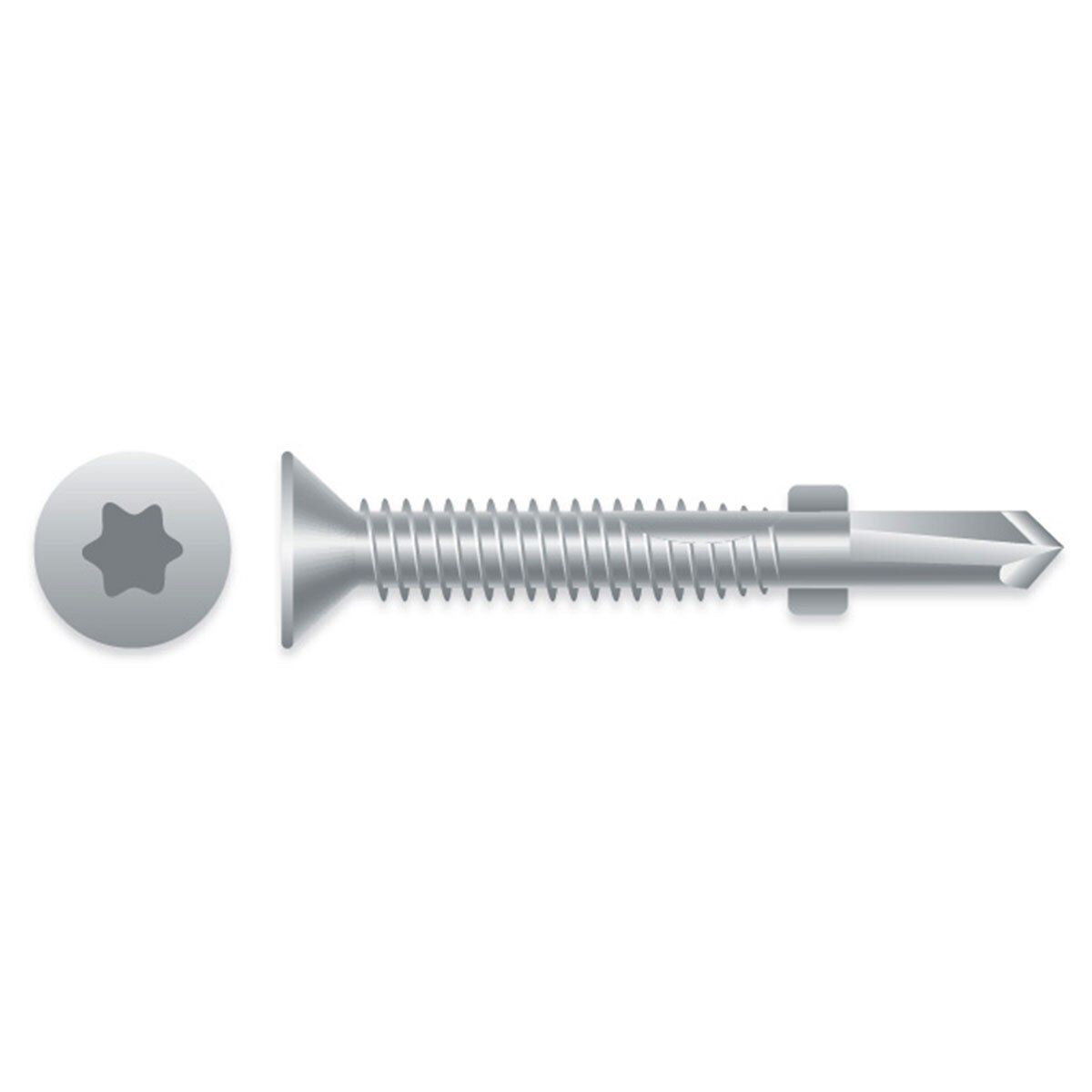

#12 x 3-1/4" STAR DRIVE FLAT HEAD 410SS STRONG SHIELD w/WINGS 5lb | 4RT314V
Details
#12-24 x 3-1/4" 410 Stainless Steel Star Drive Flat Head Reamer w/Wings, Strong-Shield Coated, TEK 4
Features:
- Self-Drilling for wood to metal applications
- Used for attaching lumber or headers to steel
- Wings ream hole in wood preventing “jacking action”
- For use in pressure treated lumber
- Maximum corrosion resistance
Details:
- Head Type: Flat
- Drive Size: T25 Star
- Thread Diameter: #12
- Threads Per Inch: 24
- Total Length: 3-1/4"
- Thread Length: 2-1/4"
- Point: #4 Self-Drilling
- Quantity: 125 pcs
- Weight: 5 pounds [approx.]
Material Application:
- Attaches plywood to metal
- Wood Range: 3/4” - 2-1/4”
- Drill Capacity: .110 - .375
- Drill Speed: 1500 RPM
Specifications:
- Meets ASTM C 1513 for cold-formed steel framing connections
- Meets F.I.P.-1000.7 for torsional strength & drill speed
- Meets SAE J78 for performance & dimensional specifications
- Rust/Acid Rain Protection
- ACQ Compatible
- Exceeds 1,000/hr. salt spray resistance
- 410 Grade Stainless Steel
- Strong-Shield Coating
410 Stainless Steel can be hardened through heat treatment, giving it the ability to drill through metal. However, it does not offer the same level of corrosion resistance of either Type 316 or 305 stainless steel. That's where the Strong-Shield Coating comes in...
Four Times the Protection! These Strong-Shield coated fasteners have a four-layer protective barrier that prevents fastener corrosion. A metallic zinc layer, a passivation layer, a functional nano-coating layer, that is used as a sealer, and a high-grade anticorrosion chemical conversion film. Rated at 1,000/hrs salt spray. Strong Shield Coating protects against Rust and Acid Rain and is compatible with ACQ treated lumber.
