#1/4-20 x 3-1/4" Star Drive Flat Head Self-Drilling Reamer Screws w/Wings Strong‑Shield® Coated 410 Stainless Steel 500ct | 4RT314

(0)No Reviews yet
$299.95
SKU: 4RT314
PACKAGING QTY: 500 count
Warning: California Residents.
Products may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. https://www.p65warnings.ca.gov/

Details

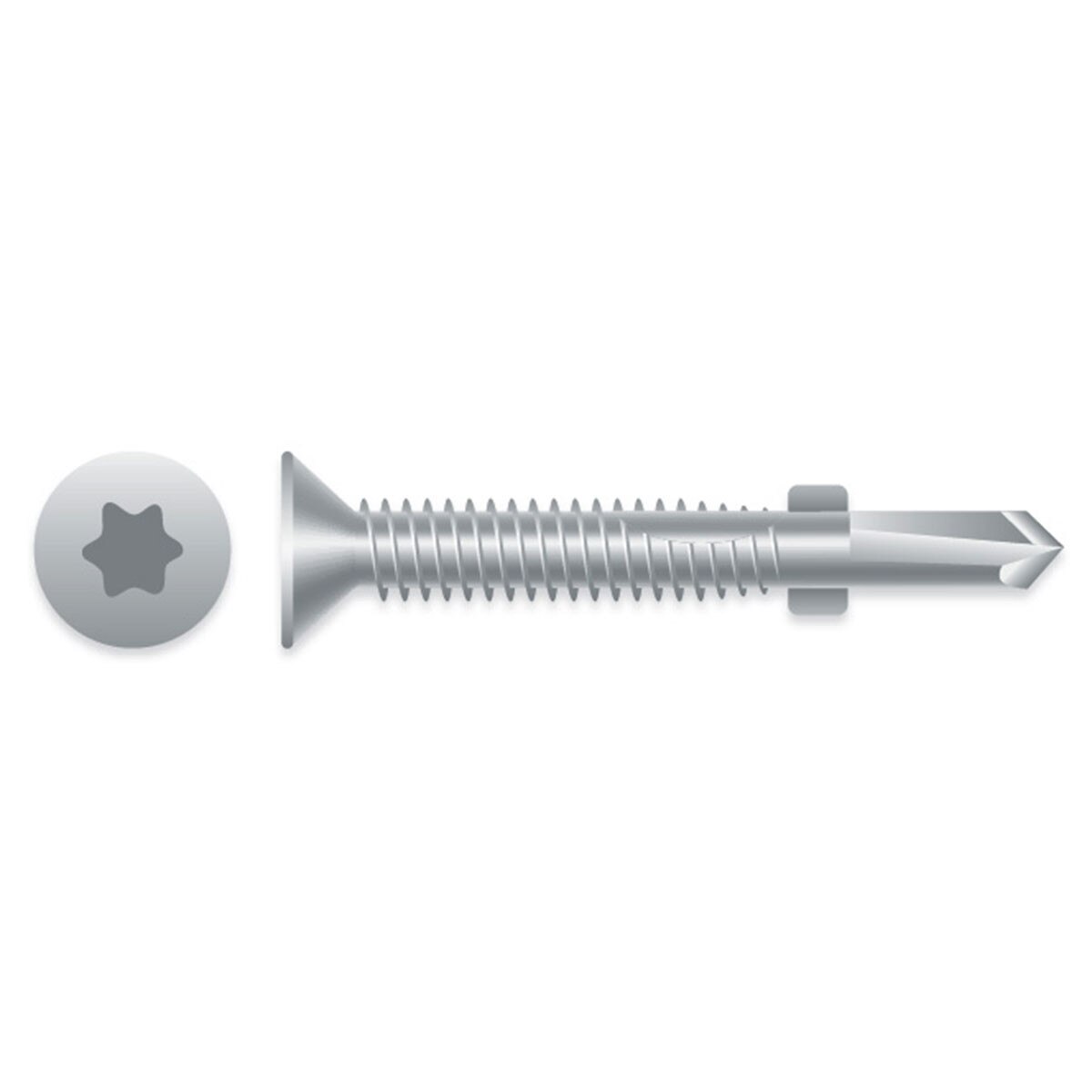

Strong-Point 1/4-20 x 3-1/4" Star Drive Flat Head Self-Drilling Reamer Screws w/Wings Strong‑Shield® Coated 410 Stainless Steel



Strong-Point 1/4-20 x 3-1/4" Star Drive Flat Head Self-Drilling Reamer Screws w/Wings are designed for attaching wood to metal. The reamer wings enlarge the hole in the wood component and break away upon contact with the metal substrate, allowing the threads to engage properly. Manufactured from 410 stainless steel for strength and durability, then enhanced with a Strong‑Shield® coating system to provide superior corrosion protection, acid rain resistance, and ACQ compatibility. This combination delivers significantly greater corrosion resistance than uncoated 410 stainless steel alone, making it ideal for demanding exterior applications.



Features:
  • 410 stainless steel for strength and durability
  • Strong‑Shield® coating enhances corrosion resistance beyond standard 410 stainless steel
  • Designed for attaching wood to metal
  • Reamer wings clear the wood component before drilling into metal
  • Star drive provides excellent bit engagement and reduced cam-out
  • Flat head provides a flush finished appearance
  • ACQ, pressure-treated, and fire-treated lumber compatible
  • Rust and acid rain protection
  • Exceeds 1,000-hour salt spray resistance


Details:
  • Head Type: Flat
  • Drive Size: T25 Star
  • Thread Diameter: 1/4"
  • Threads Per Inch: 20
  • Total Length: 3-1/4"
  • Thread Length: 2-1/4"
  • Point: #4 Self-Drilling
  • Wood Range: 3/4" - 2-1/4"
  • Quantity: 500 pcs
  • Weight: 17 pounds


Material Application:
  • Attaches wood to metal


Specifications:
  • Strong‑Shield® Coated 410 Stainless Steel
  • Meets ASTM C1513 for cold-formed steel framing connections
  • Meets F.I.P.-1000.7 for torsional strength and drill speed
  • Meets SAE J78 for performance and dimensional specifications
  • Drill Capacity: .110 - .375"
  • Wood Range: 3/4" - 2-1/4"
  • Recommended Drill Speed: 1500 RPM
  • Exceeds 1,000-hour salt spray resistance


410 Stainless Steel is a low-carbon hardenable stainless steel with good corrosion resistance. Surface rust may appear. Strong‑Shield® further enhances corrosion resistance with a four-layer coating system engineered for harsh outdoor environments.

Coating Details:
  • Finish: Strong‑Shield® Coated 410 Stainless Steel
  • Application: Outdoor High Corrosive Environments
  • Salt Spray Resistance: 1,000 Hours
  • Kesternich Resistance: 15 Cycles
  • ACQ Compatible: Yes
  • Acid Rain Protection: Yes
  • Four-layer system consisting of a metallic zinc layer, passivation, functional nano sealer coating, and anti-corrosion chemical conversion film.
