#12 x 2" PHILLIPS FLAT HEAD ZINC PLATED S/D REAMER #3 PT WINGS 2,000ct | R200
Details

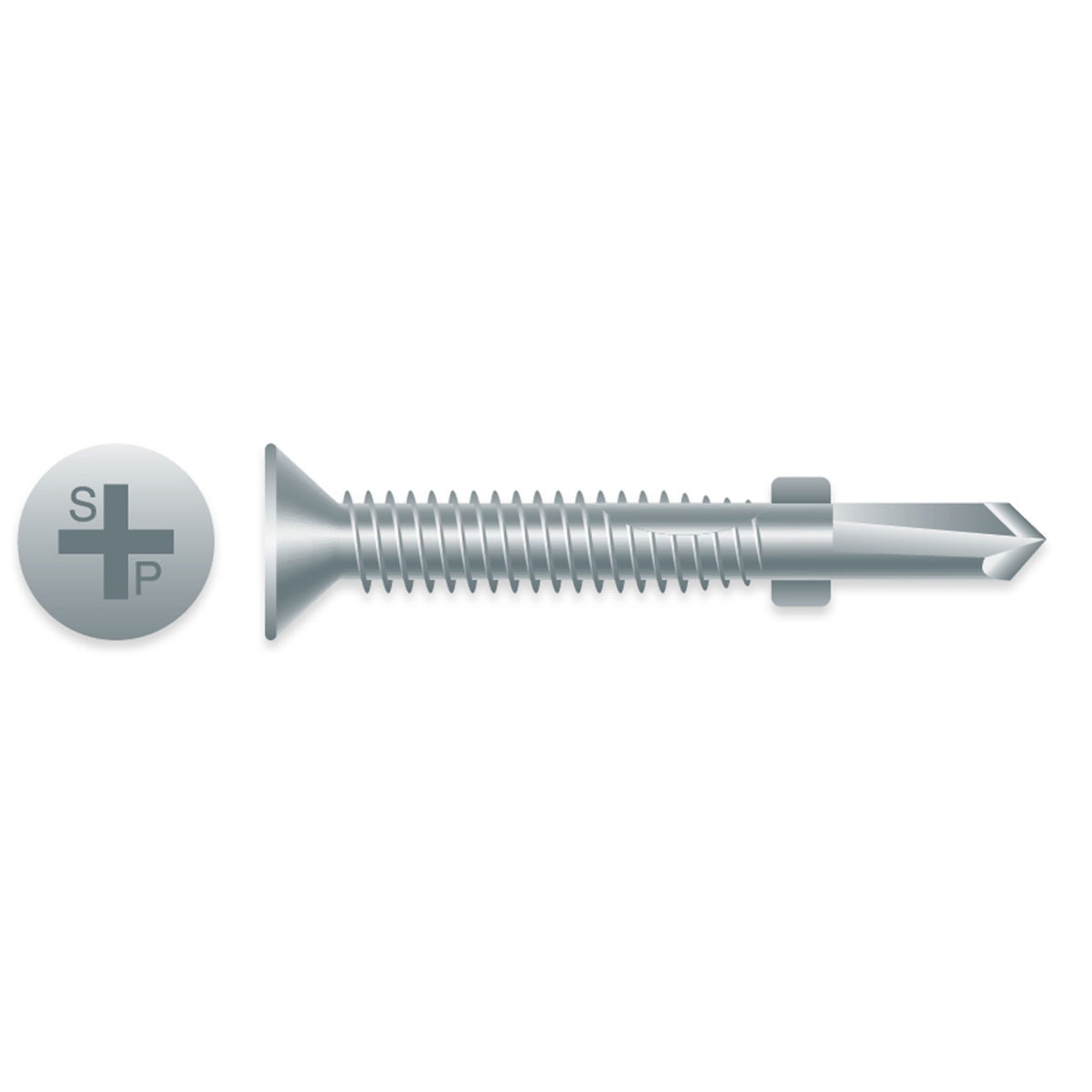

#12-24 x 2" Phillips Flat Head Tek Reamer with Wings, Zinc Plated, TEK 3
Features:
- Self-Drilling for wood to metal applications
- Used for attaching lumber or headers to steel
- Wings ream hole in wood preventing “jacking action”
- Low corrosion resistance
Details:
- Head Type: Flat
- Drive Size: #2 Phillips
- Thread Diameter: #12
- Threads Per Inch: 24
- Length: 2"
- Point: #3 Self-Drilling
- Quantity: 2,000 pcs
- Weight: 32 pounds [approx.]
Material Application:
- Attaches plywood to metal
- Wood Range: 1/2” - 1-1/8”
- Drill Capacity: .110 - .210
- Drill Speed: 2000 RPM
Specifications:
- Meets ASTM C 1513 for cold-formed steel framing connections
- Meets F.I.P.-1000.7 for torsional strength & drill speed
- Meets SAE J78 for performance & dimensional specifications
- Meets ASTM A 510 for carbon steel manufacturing
- Zinc Plated
Zinc plated is a plating that is applied electrically to fasteners that prevents oxidation of steel by forming a protective barrier. Not recommended for ACQ Treated Lumber.
