#12-14 x 1-1/2" Phillips Flat Head Self-Drilling Tek Screws Zinc CR3+ Plated 3,000ct | F212
Details

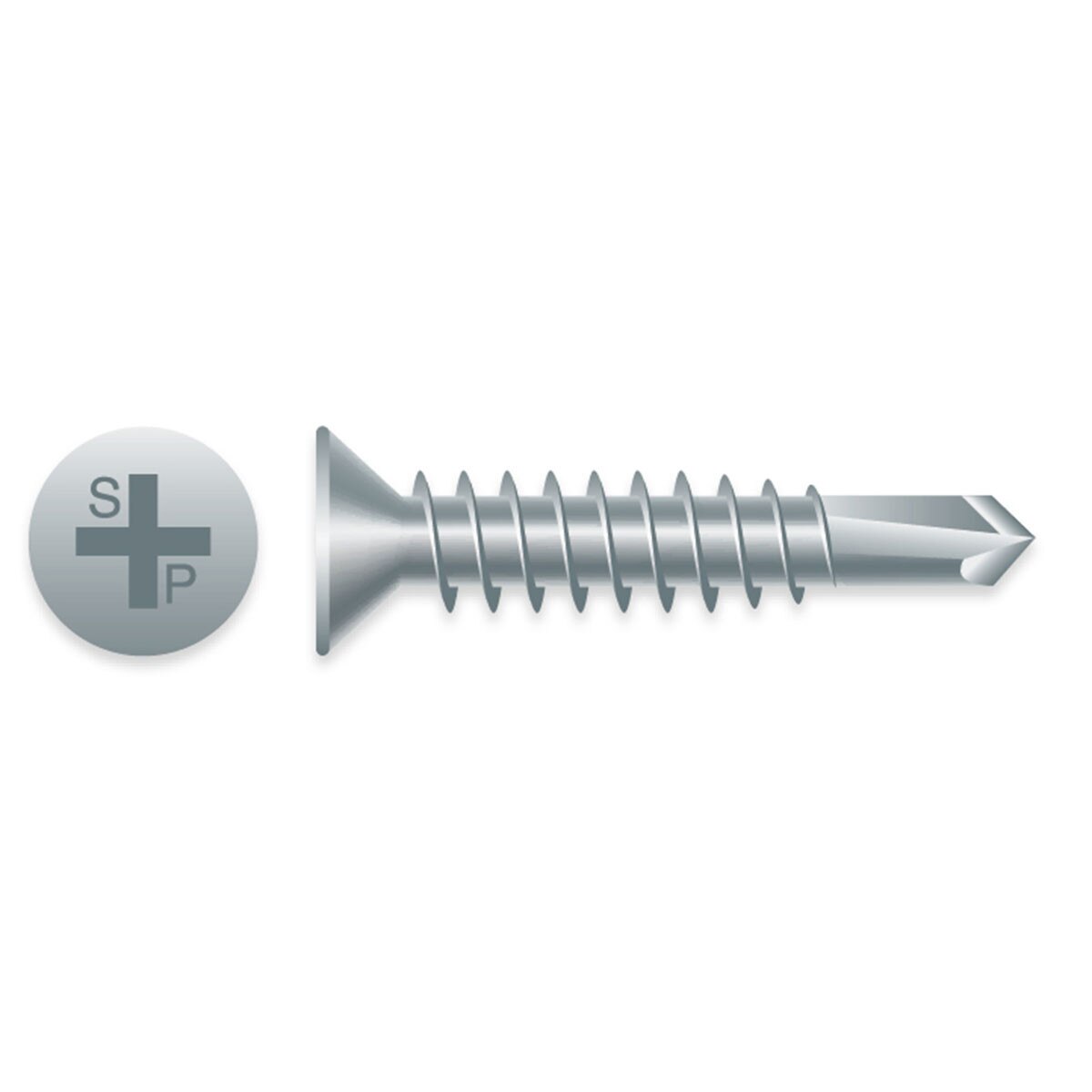

Strong-Point #12-14 x 1-1/2" Phillips Flat Head Self-Drilling Tek Screws Zinc CR3+ Plated
Strong-Point #12-14 x 1-1/2" Phillips Flat Head Self-Drilling Tek Screws are designed for fastening wood or metal to metal where a flush, countersunk finish is required. The #3 self-drilling point delivers fast, consistent drilling through steel thicknesses from .035" to .210". Zinc CR3+ plating provides corrosion protection by forming a protective barrier that helps prevent oxidation.
Features:
- #3 self-drilling point for heavier gauge steel applications
- Phillips flat head for flush mounting in countersunk holes
- Zinc CR3+ plated for corrosion resistance
- Engineered for dependable drilling and fastening performance
- Suitable for wood-to-metal and metal-to-metal fastening
- Precision formed threads for secure holding power
Details:
- Head Type: Flat Head
- Drive Type: Phillips
- Thread Diameter: #12
- Threads Per Inch: 14
- Length: 1-1/2"
- Point: #3 Self-Drilling
- Quantity: 3,000 pcs
- Weight: 35lb
Material Application:
- Attaches wood or metal to metal
- Drill Capacity: .035" – .210"
- Recommended Drill Speed: 2000 RPM
Specifications:
- Meets ASTM C1513 for cold-formed steel framing connections
- Meets F.I.P.-1000.7 for torsional strength & drill speed
- Meets SAE J78 for performance & dimensional specifications
- Meets ASTM A510 for carbon steel manufacturing
- Meets ASTM F1941 for corrosion resistance
- Zinc CR3+ Plated
- For countersunk holes
Zinc CR3+ plating provides a thin protective barrier that helps reduce oxidation of carbon steel. Corrosion resistance is limited and not suitable for ACQ Treated Lumber.
Coating Details:
- Coating: Clear Zinc
- Salt Spray: 24 hrs.
- Kesternich: N/A
- Application: Used indoors for dry, non-corrosive environments
- Clear Zinc is an electrically applied plating that forms a protective barrier to prevent oxidation of the steel.
