#10 x 6" PHILLIPS BUGLE HEAD ZINC PLATED S/D SCREWS 500ct | D1060Z
Details
#10-16 x 6" Phillips Bugle Head, Zinc Plated Screws
Features:
- Attaches gypsum, insulation, wood to metal
- Zinc Plated
Details:
- Drive: #2 Phillips
- Thread Diameter: #10
- Threads per inch: 16
- Length: 6”
- Drill Point: #2 Tek
- Drill Capacity: .035"-.110"
- Drill Speed: 2500 RPM
- Bulk Quantity: 500
- Weight: 17 pounds
Specifications:
- ICC-ES Evaluation Report: ESR-3528
- Meets ASTM C 1513 for cold-formed steel framing connections
- Meets F.I.P.-1000.7 for torsional strength & drill speed
- Meets SAE J78 for performance & dimensional specifications
- Meets ASTM C 954 for attaching gypsum board to steel studs
- Zinc Plated
Zinc plated is a plating that is applied electrically to fasteners that prevents oxidation of steel by forming a protective barrier.

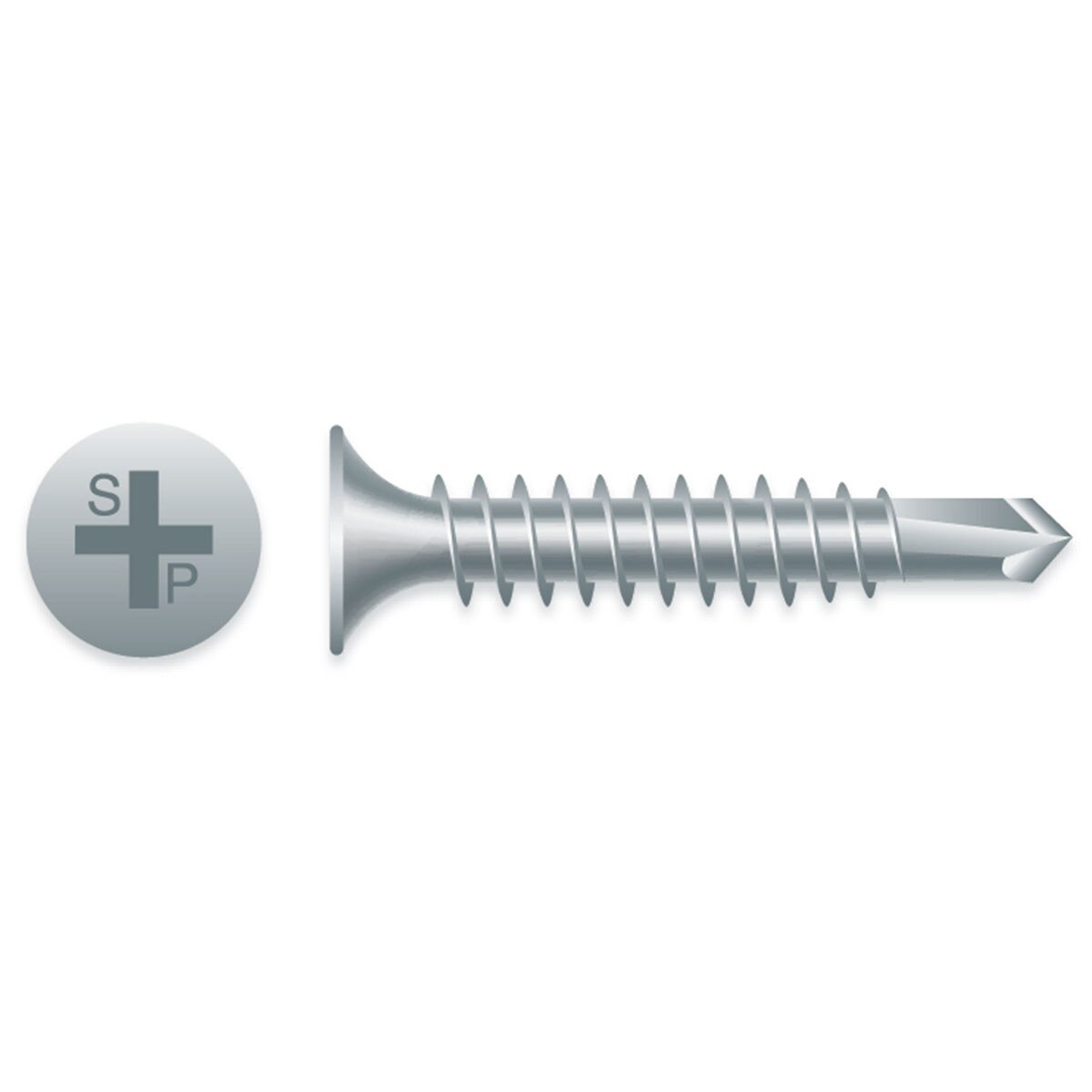

Product image is a likeness. Actual screw is not shown. Some screw lengths beyond 1-5/8" may follow the industry standard 2/3 partial thread length rule. Contact us if Full Thread is required for lengths beyond 1-5/8".
