#10-16 x 5/8" Phillips Pancake Head Self-Drilling Screws Zinc CR3+ Plated 8,000ct | PC5
Details

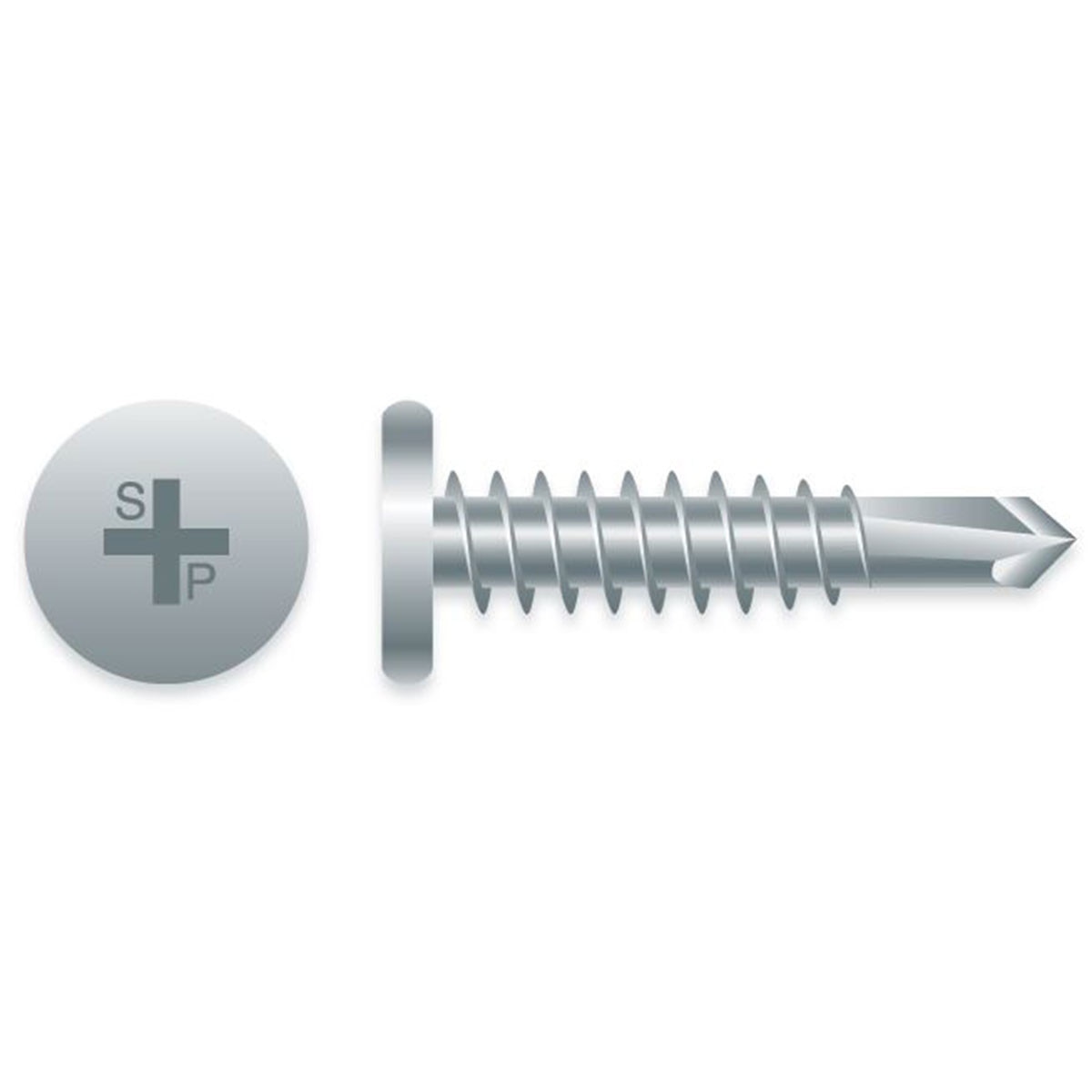

Strong-Point #10-16 x 5/8" Phillips Pancake Head Self-Drilling Screws Zinc CR3+ Plated
Strong-Point #10-16 x 5/8" Phillips Pancake Head Self-Drilling Screws are designed for attaching panel clips to metal studs. The low-profile pancake head provides a large bearing surface while minimizing protrusion, making it ideal for clip attachment applications. The #3 self-drilling point delivers fast, consistent drilling through steel thicknesses from .035" to .176". Zinc CR3+ plating provides corrosion protection by forming a protective barrier that helps prevent oxidation.
Features:
- #3 self-drilling point for steel applications
- Pancake head provides a low-profile bearing surface
- Designed for attaching panel clips to metal studs
- Zinc CR3+ plated for corrosion resistance
- Ideal for panel clip attachment applications
- Engineered for dependable drilling and fastening performance
Details:
- Head Type: Pancake Head
- Drive Type: Phillips
- Thread Diameter: #10
- Threads Per Inch: 16
- Length: 5/8"
- Point: #3 Self-Drilling
- Quantity: 8,000 pcs
- Weight: 41lb
Material Application:
- Attaches panel clips to metal studs
- Drill Capacity: .035" – .176"
- Recommended Drill Speed: 2500 RPM
Specifications:
- ICC-ES Evaluation Report: ESR-3528
- Meets ASTM C1513 for cold-formed steel framing connections
- Meets F.I.P.-1000.7 for torsional strength & drill speed
- Meets SAE J78 for performance & dimensional specifications
- Meets ASTM F1941 for corrosion resistance
- Zinc CR3+ Plated
Zinc CR3+ plating provides a thin protective barrier that helps reduce oxidation of carbon steel. Corrosion resistance is limited and not suitable for ACQ Treated Lumber.
Coating Details:
- Coating: Clear Zinc
- Salt Spray: 24 hrs.
- Kesternich: N/A
- Application: Used indoors for dry, non-corrosive environments
- Clear Zinc is an electrically applied plating that forms a protective barrier to prevent oxidation of the steel.
