#10-16 x 3/4" Phillips Modified Truss (R/W) Head Self-Drilling Screws Zinc CR3+ Plated 7,000ct | M106Z
Details

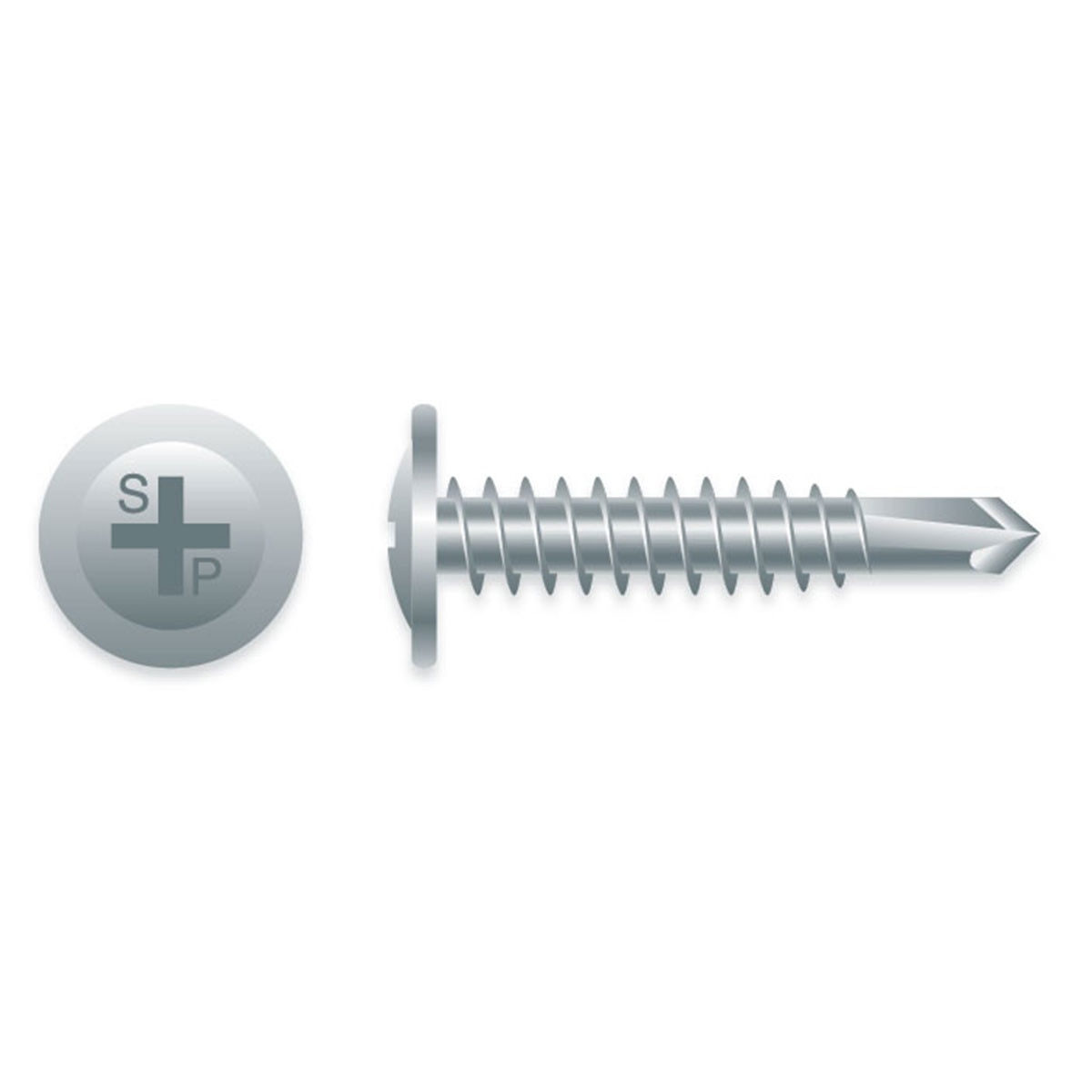

Strong-Point #10-16 x 3/4" Phillips Modified Truss (R/W) Head Self-Drilling Screws Zinc CR3+ Plated
Strong-Point #10-16 x 3/4" Phillips Modified Truss (R/W) Head Self-Drilling Screws are designed for attaching wire lath to metal studs or metal to metal. The modified truss head provides a wide bearing surface for improved holding power and reduced pull-through in lath and light-gauge steel applications. The #3 self-drilling point delivers fast, consistent drilling through steel thicknesses from .035" to .176". Zinc CR3+ plating provides corrosion protection by forming a protective barrier that helps prevent oxidation.
Features:
- #3 self-drilling point for steel applications
- Modified Truss (R/W) head provides a wide bearing surface
- Designed for attaching wire lath to metal studs
- Suitable for metal-to-metal fastening applications
- Zinc CR3+ plated for corrosion resistance
- Engineered for dependable drilling and fastening performance
Details:
- Head Type: Modified Truss (R/W) Head
- Head Size: 0.42" Diameter
- Drive Type: Phillips
- Thread Diameter: #10
- Threads Per Inch: 16
- Length: 3/4"
- Point: #3 Self-Drilling
- Quantity: 7,000 pcs
- Weight: 38lb
Material Application:
- Attaches wire lath to metal studs or metal to metal
- Drill Capacity: .035" – .176"
- Recommended Drill Speed: 2500 RPM
Specifications:
- ICC-ES Evaluation Report: ESR-3528
- Meets ASTM C1513 for cold-formed steel framing connections
- Meets F.I.P.-1000.7 for torsional strength & drill speed
- Meets SAE J78 for performance & dimensional specifications
- Meets ASTM F1941 for corrosion resistance
- Zinc CR3+ Plated
Zinc CR3+ plating provides a thin protective barrier that helps reduce oxidation of carbon steel. Corrosion resistance is limited and not suitable for ACQ Treated Lumber.
Coating Details:
- Coating: Clear Zinc
- Salt Spray: 24 hrs.
- Kesternich: N/A
- Application: Used indoors for dry, non-corrosive environments
- Clear Zinc is an electrically applied plating that forms a protective barrier to prevent oxidation of the steel.
