#10‑16 x 3/4" Hi‑Hex Head Self‑Drilling Tek Screws Zinc CR3+ Plated 6,000ct | H1012H
Details

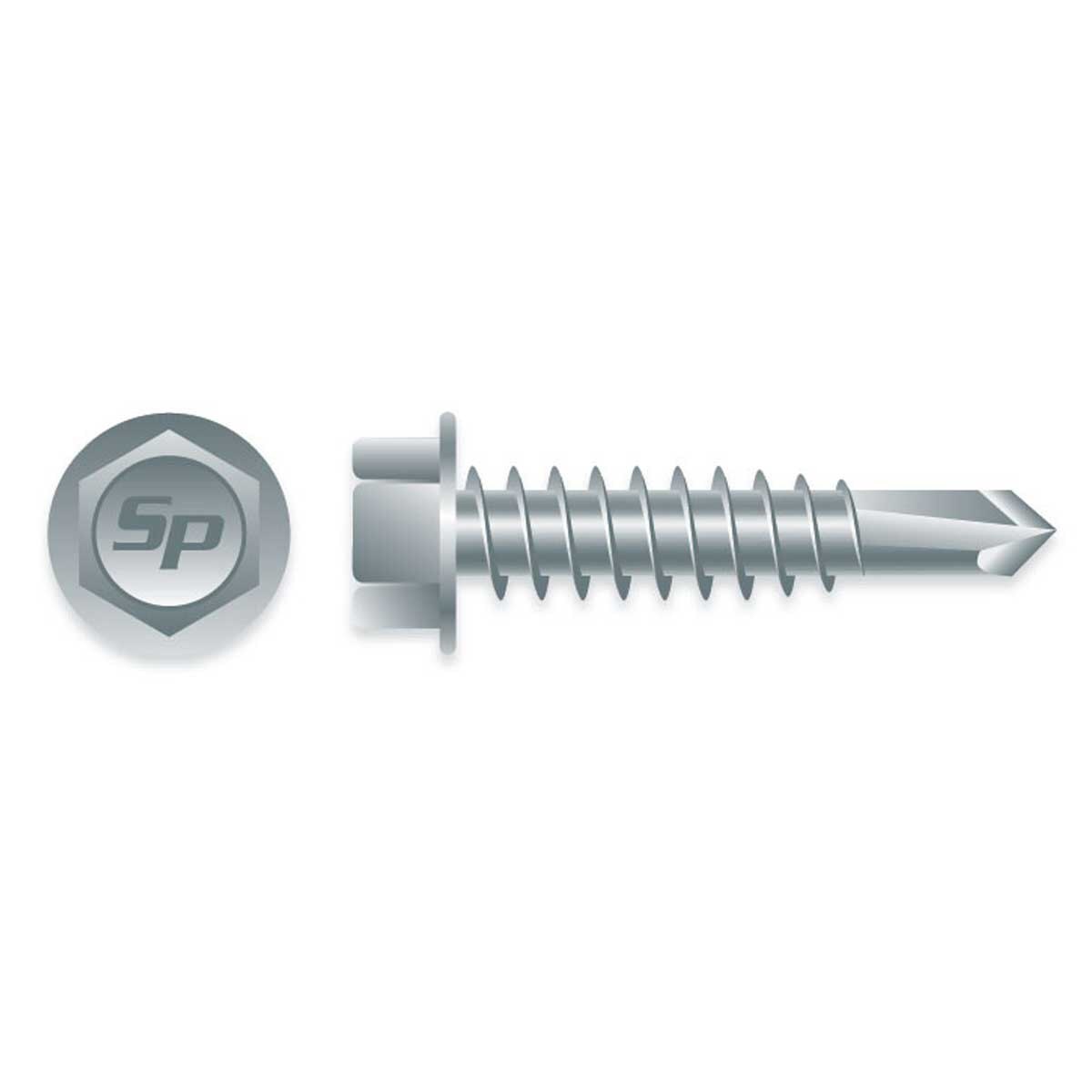

Strong‑Point #10‑16 x 3/4" Hi‑Hex Head Self‑Drilling Tek Screws Zinc CR3+ Plated
Strong‑Point #10‑16 x 3/4" Hi‑Hex Head Self‑Drilling Tek screws are manufactured for dependable metal‑to‑metal fastening in light‑gauge steel. The taller Hi‑Hex head with reverse serrations provides improved driving stability and controlled seating. The #3 drill point cuts smoothly through steel thicknesses from .035" to .176", ensuring consistent performance and reduced wandering. Zinc CR3+ plating offers basic corrosion resistance suitable for interior applications.
Features:
- Hi‑Hex Head with reverse serrations for enhanced grip
- Head Height: .160" – .178"
- #3 self‑drilling point for consistent penetration
- Precision‑formed drill point improves start speed and reduces wandering
- Zinc CR3+ plating provides low corrosion resistance
Details:
- Head Type: Hi‑Hex Head
- Drive Size: 5/16"
- Thread Diameter: #10
- Threads Per Inch: 16
- Length: 3/4"
- Point: #3 Self‑Drilling
- Quantity: 6,000ct
- Weight: 42lb
Material Application:
- Metal‑to‑metal fastening
- Drill Capacity: .035" – .176"
- Recommended Drill Speed: 2500 RPM
Specifications:
- ICC‑ES ESR‑3528
- ASTM C1513
- F.I.P.‑1000.7
- SAE J78
- ASTM A510
- ASTM F1941 Zinc CR3+
Zinc CR3+ plating provides a thin protective barrier that helps reduce oxidation of carbon steel. Corrosion resistance is limited and not suitable for ACQ Treated Lumber.
Coating Details:
- Coating: Clear Zinc
- Salt Spray: 24 hrs.
- Kesternich: N/A
- Application: Used indoors for dry, non‑corrosive environments
- Clear Zinc is an electrically applied plating that forms a protective barrier to prevent oxidation of the steel.
