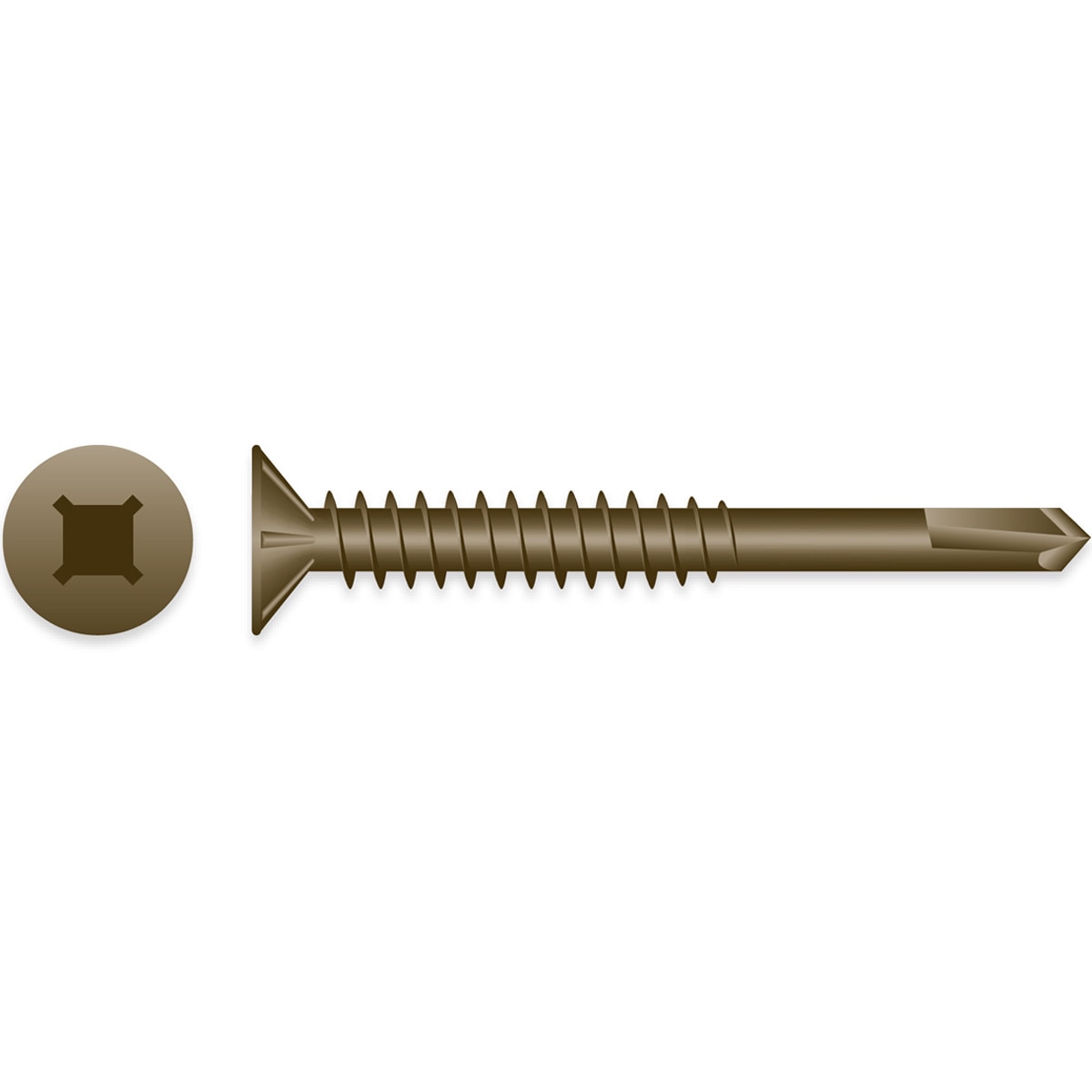

#10 x 2-1/2" PHILLIPS/SQUARE DRIVE FLAT HEAD WAR COATED PILOT POINT 1,500ct Box | FP212W
Details
WAR Coated #10-16 x 2-1/2" Phillips/Square Drive Flat Head Pilot Point, TEK 3
Features:
- Self-Drilling Pilot-Point for metal to wood applications
- For use in pressure treated lumber
- High corrosion resistance
Details:
- Head Type: Flat
- Drive Size: #2 Phillips & #2 Square
- Thread Diameter: #10
- Threads Per Inch: 16
- Length: 2-1/2"
- Point: #3 Self-Drilling
- Quantity: 1,500 pcs
- Weight: 21 pounds [approx.]
Material Application:
- Attaches wood to metal
- Drill Capacity: .035 - .176
- Drill Speed: 2500 RPM
Specifications:
- Meets ASTM C 1513 for cold-formed steel framing connections
- Meets F.I.P.-1000.7 for torsional strength & drill speed
- Meets SAE J78 for performance & dimensional specifications
- Meets ASTM A 510 for carbon steel manufacturing
- Exceeds 1,000/hr. salt spray resistance
- WAR Coated
WAR Coating is a high-grade metal surface processing technology that prevents corrosion. The coating system consists of three layers: a metallic zinc layer, a passivation, and a high-grade anti-corrosion chemical conversion film.
