#10-16 x 1" Star Drive Wafer Head Self-Drilling Tek Screws Zinc CR3+ Plated 5,000ct | W104T

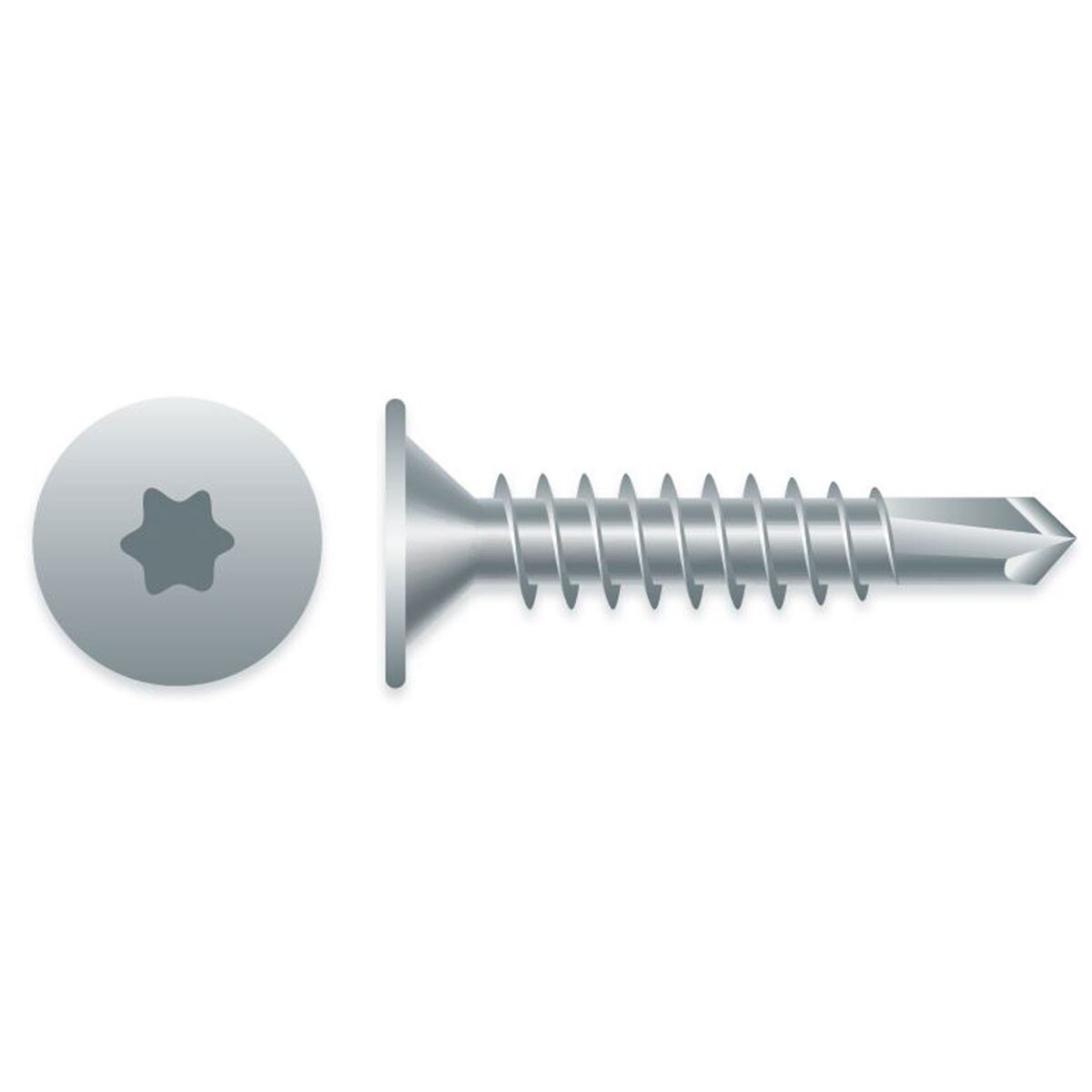

Strong-Point #10-16 x 1" Star Drive Wafer Head Self-Drilling Tek Screws Zinc CR3+ Plated

Strong-Point #10-16 x 1" Star Drive Wafer Head Self-Drilling Tek Screws are designed for attaching plywood to metal. The low-profile wafer head provides a large bearing surface to help prevent pull-through while delivering a clean finished appearance. The #3 self-drilling point delivers fast, consistent drilling through steel thicknesses from .035" to .176". The Star Drive recess provides superior bit engagement and reduced cam-out during installation. Zinc CR3+ plating provides corrosion protection by forming a protective barrier that helps prevent oxidation.

• #3 self-drilling point for steel applications
• Star Drive recess helps reduce cam-out
• Wafer head design provides a large bearing surface
• Designed for attaching plywood to metal
• Zinc CR3+ plated for corrosion resistance
• Engineered for dependable drilling and fastening performance

• Head Type: Wafer Head
• Drive Type: Star Drive
• Thread Diameter: #10
• Threads Per Inch: 16
• Length: 1"
• Point: #3 Self-Drilling
• Quantity: 5,000 pcs
• Weight: 35lb

• Attaches plywood to metal
• Wood Range: 1/4" – 1/2"
• Drill Capacity: .035" – .176"
• Recommended Drill Speed: 2500 RPM

• Meets F.I.P.-1000.7 for torsional strength & drill speed
• Meets SAE J78 for performance & dimensional specifications
• Meets ASTM A510 for carbon steel manufacturing
• Meets ASTM F1941 for corrosion resistance
• Zinc CR3+ Plated

• Coating: Clear Zinc
• Salt Spray: 24 hrs.
• Kesternich: N/A
• Application: Used indoors for dry, non-corrosive environments
• Clear Zinc is an electrically applied plating that forms a protective barrier to prevent oxidation of the steel.
