#10 x 1" HWH 5/16" Drive Needle Point Sheet Metal Screws w/Bonded Washer Zinc CR3+ Plated 5lb 500/Box | NA10165V
Details

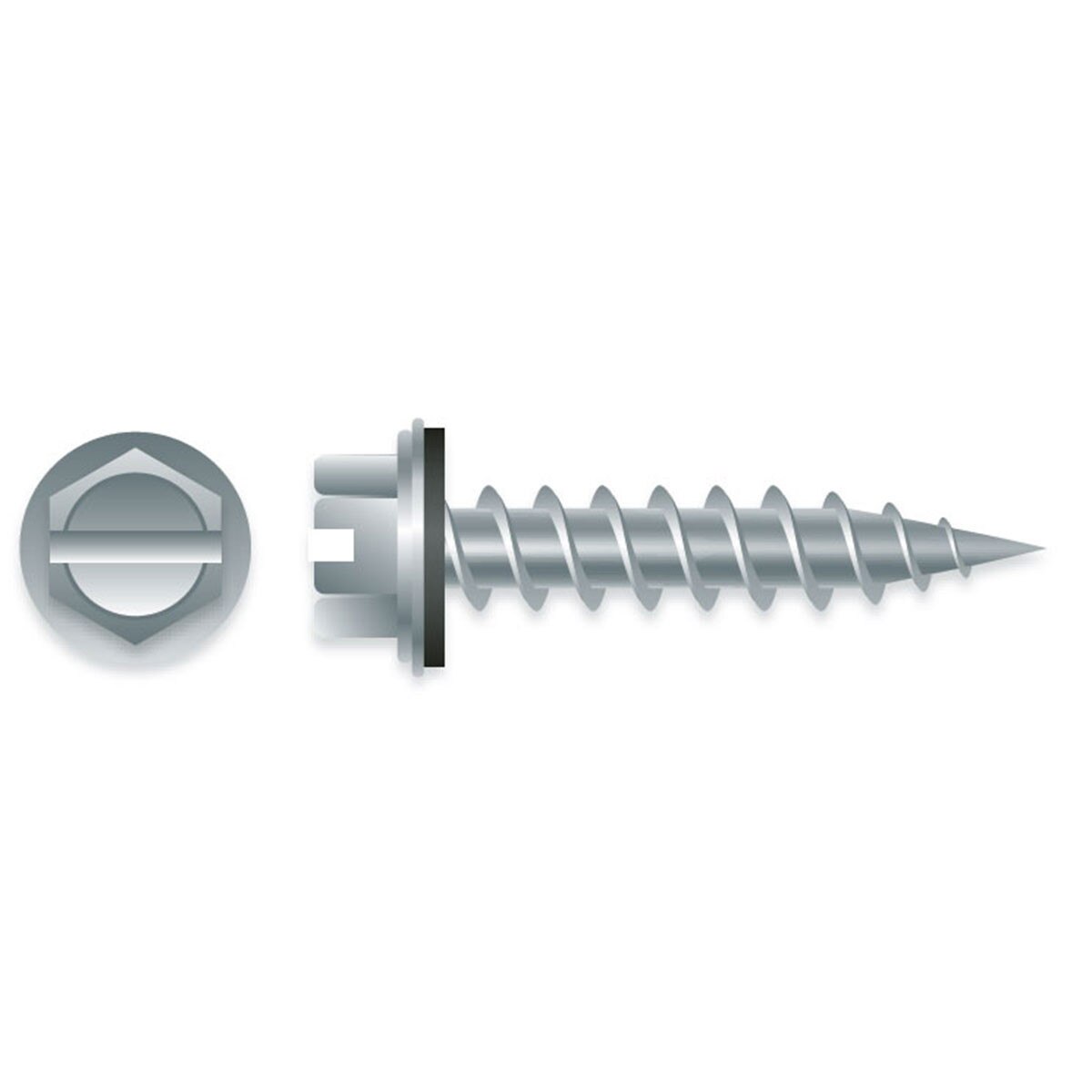

Strong-Point #10 x 1" Slotted Indented Hex Washer Head Sheet Metal Screws with Bonded Washer Zinc CR3+ Plated
Strong-Point #10 x 1" Slotted Indented Hex Washer Head Sheet Metal Screws with Bonded Washer are designed for attaching light gauge sheet metal to sheet metal. The bonded washer creates a leak-proof seal while the hex washer head provides a large bearing surface for secure fastening. The needle point allows for quick penetration into thin metal. Zinc CR3+ plating provides corrosion protection by forming a protective barrier against oxidation.
Features:
- Designed for attaching light gauge sheet metal to sheet metal
- Bonded washer helps create a leak-proof seal
- Hex washer head provides a secure bearing surface
- Slotted drive allows versatile installation
- Multipurpose sheet metal screw for light gauge applications
- Needle point for fast penetration into sheet metal
- Zinc CR3+ plated for corrosion resistance
Details:
- Drive Type: Slotted
- Head Type: Indented Hex Washer Head with Bonded Washer
- Drive Size: 5/16" A.F. (Across Flats) #10 Head
- Washer Size: 1/2" O.D.
- Thread Diameter: #10
- Length: 1"
- Point: Needle Point
- Quantity: 500 pcs
- Weight: 5 Pounds
Material Application:
- Attaches light gauge sheet metal to sheet metal
Specifications:
- Meets ASTM A510 for carbon steel manufacturing
- Multipurpose sheet metal screw for light gauge applications
- Bonded washer creates a leak-proof seal
- Zinc plating meets ASTM B633 for electrodeposited zinc coatings
- Zinc CR3+ Plated
Zinc plating is an electrically applied coating that prevents oxidation by forming a protective barrier. Corrosion resistance is intended for indoor dry, non-corrosive environments.
Coating Details:
- Coating: Clear Zinc CR3+
- Salt Spray: 24 hrs.
- Kesternich: N/A
- Application: Indoor dry, non-corrosive environments
- Electrically applied plating that prevents oxidation by forming a protective barrier.
