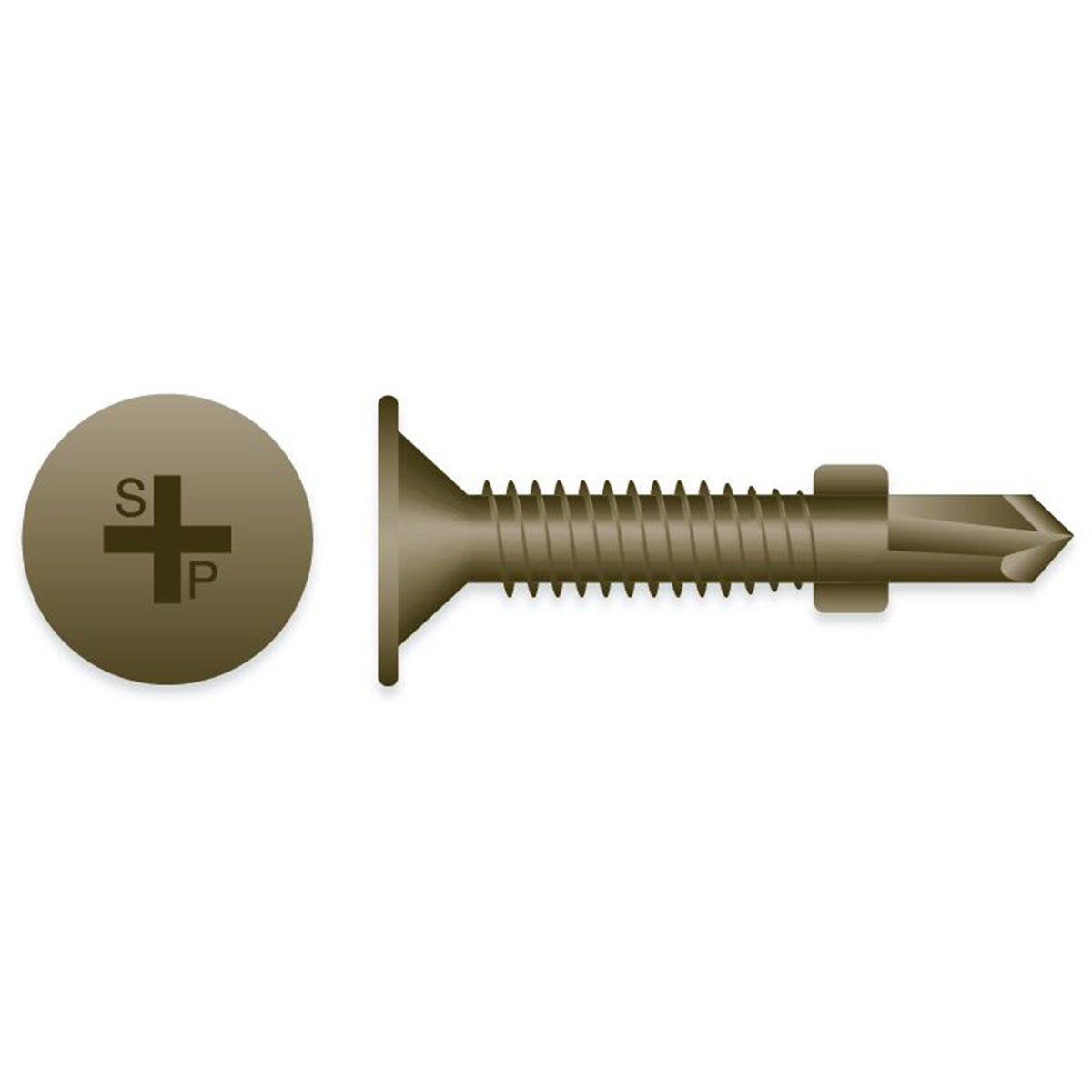

#10 x 1-7/16" PHILLIPS WAFER HEAD WAR COATED S/D REAMER w/WINGS 4,000ct | R107W

WAR Coated #10-24 x 1-7/16" Phillips Flat Head Tek Reamer with Wings, TEK 3

Features:

• Self-Drilling for wood to metal applications
• Used for attaching lumber or headers to steel
• Wings ream hole in wood preventing “jacking action”
• For use in pressure treated lumber
• High corrosion resistance

Details:

• Head Type: Flat
• Drive Size: #3 Phillips
• Thread Diameter: #10
• Threads Per Inch: 24
• Length: 1-7/16"
• Point: #3 Self-Drilling
• Quantity: 4,000 pcs
• Weight: 38 pounds [approx.]

Material Application:

• Attaches plywood to metal
  • Wood Range: 1/4” - 3/4”
• Drill Capacity: .035 - .176
• Drill Speed: 2500 RPM

Specifications:

• Meets ASTM C 1513 for cold-formed steel framing connections
• Meets F.I.P.-1000.7 for torsional strength & drill speed
• Exceeds 1,000/hr. salt spray resistance
• WAR Coated

WAR Coating is a high-grade metal surface processing technology that prevents corrosion. The coating system consists of three layers: a metallic zinc layer, a passivation, and a high-grade anti-corrosion chemical conversion film.
