#10 x 1-5/8" Bronze FHD Wood to Steel Self-Drilling Screw 4,000ct | FHD10158
Details

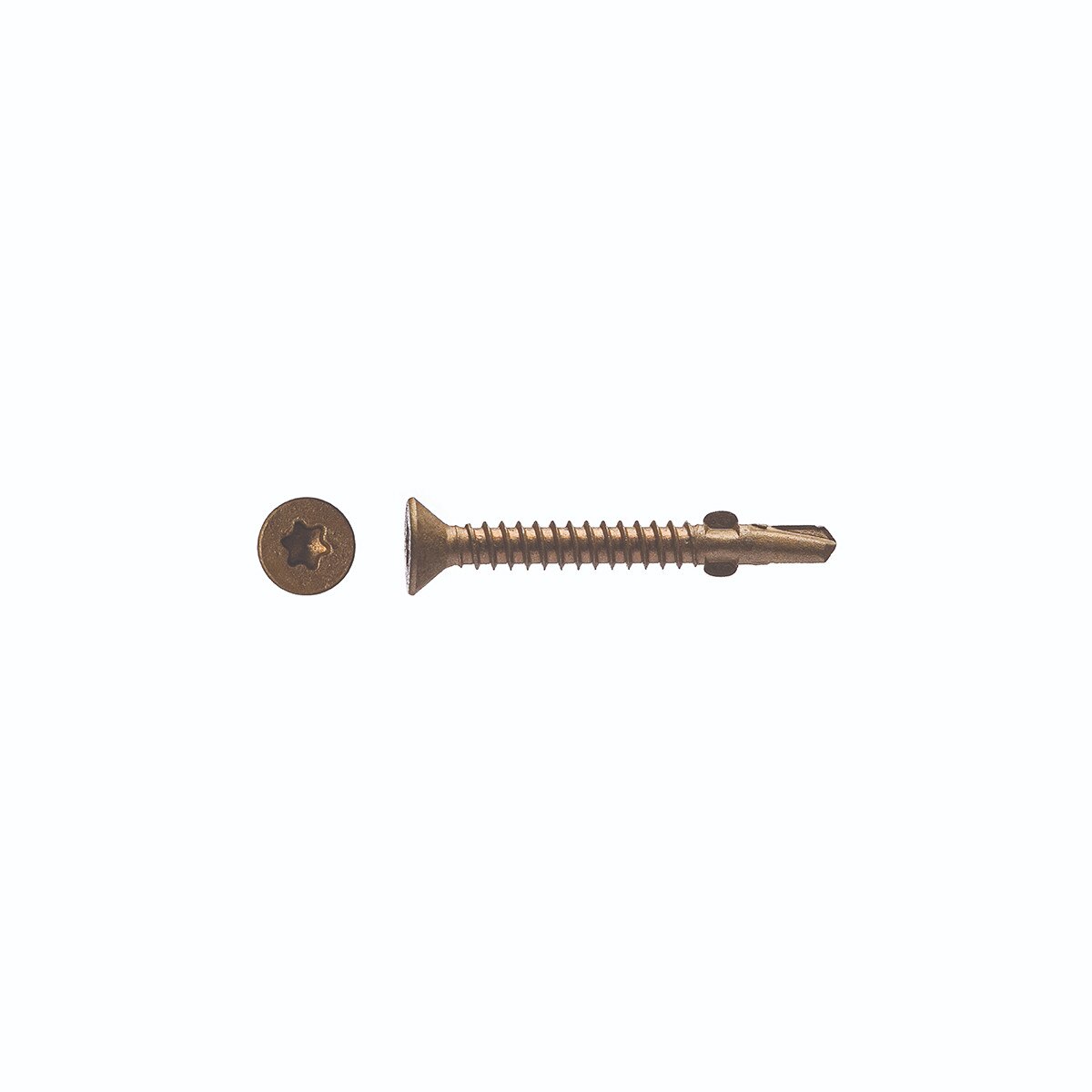

Big Timber FHD™ Wood-to-Steel Self-Drilling Screw #10 x 1-5/8" Bronze
Wood-to-steel self-drilling screws engineered for fastening wood sheathing or dimension lumber to steel or aluminum. Designed with a self-drilling tip rated for metal up to 1/4", metal wings that ream the wood and break off at the steel, and a deep chip cavity to clear metal shavings for efficient cutting performance. Flat head design seats flush for a smooth finished surface, while a triple-layer ACQ compatible bronze coating provides enhanced corrosion resistance.
Replacement for:
- Simpson STRONG-DRIVE® TB Wood-to-Steel Screw
Features:
- Engineered for fastening wood to steel or aluminum up to 1/4" thick
- Self-drilling tip provides fast starts and consistent drilling performance
- Metal wings ream wood and break off at the steel to prevent thread engagement in wood before metal
- Deep chip cavity collects and clears metal shavings to keep cutting threads working
- Flat head seats flush for a smooth finished surface
- Heat-treated steel for high tensile and superior shear strength
- Six-lobe T-25 star drive recess reduces cam-out and end load
- Handles higher torque than Phillips or square drive while extending bit life
- Triple-layer ACQ compatible bronze corrosion-resistant coating
SKU Specifications:
- Drive Size: T25
- Diameter: #10
- Screw Length: 1-5/8"
- Thread Length: 1-1/16"
- Drill Capacity (Metal): Up to 1/4"
- Head Type: Flat Head
- Material: Steel
- Product Color: Bronze
- Quantity: 4,000
- Weight: 36.1 lbs
- Approx. Screws per lb: 110
- Bit Included: No
Primary Applications:
- Truck beds
- Utility trailers
- Horse trailers
- ATV, motorcycle, and snowmobile trailers
- Flatbed trailers
- Docks
- Wall liners
- Fastening wood sheathing or dimension lumber to steel or aluminum framing
Material: Steel
Prop 65 Warning: This product contains a chemical known to the State of California to cause cancer, or birth defects or other reproductive harm
Compatible with treated lumber. For areas within one mile of saltwater, near swimming pools, exposure to corrosive chemicals, or other environments where corrosion is more likely to occur, using the proper size, grade, and type of Big Timber Stainless Steel Fasteners should be considered if available. FHD is not available in stainless.
