#10‑16 x 1/2" HWH Self‑Drilling Tek Screws Zinc CR3+ Plated 5lb 1,000/Box | H1008V
Details

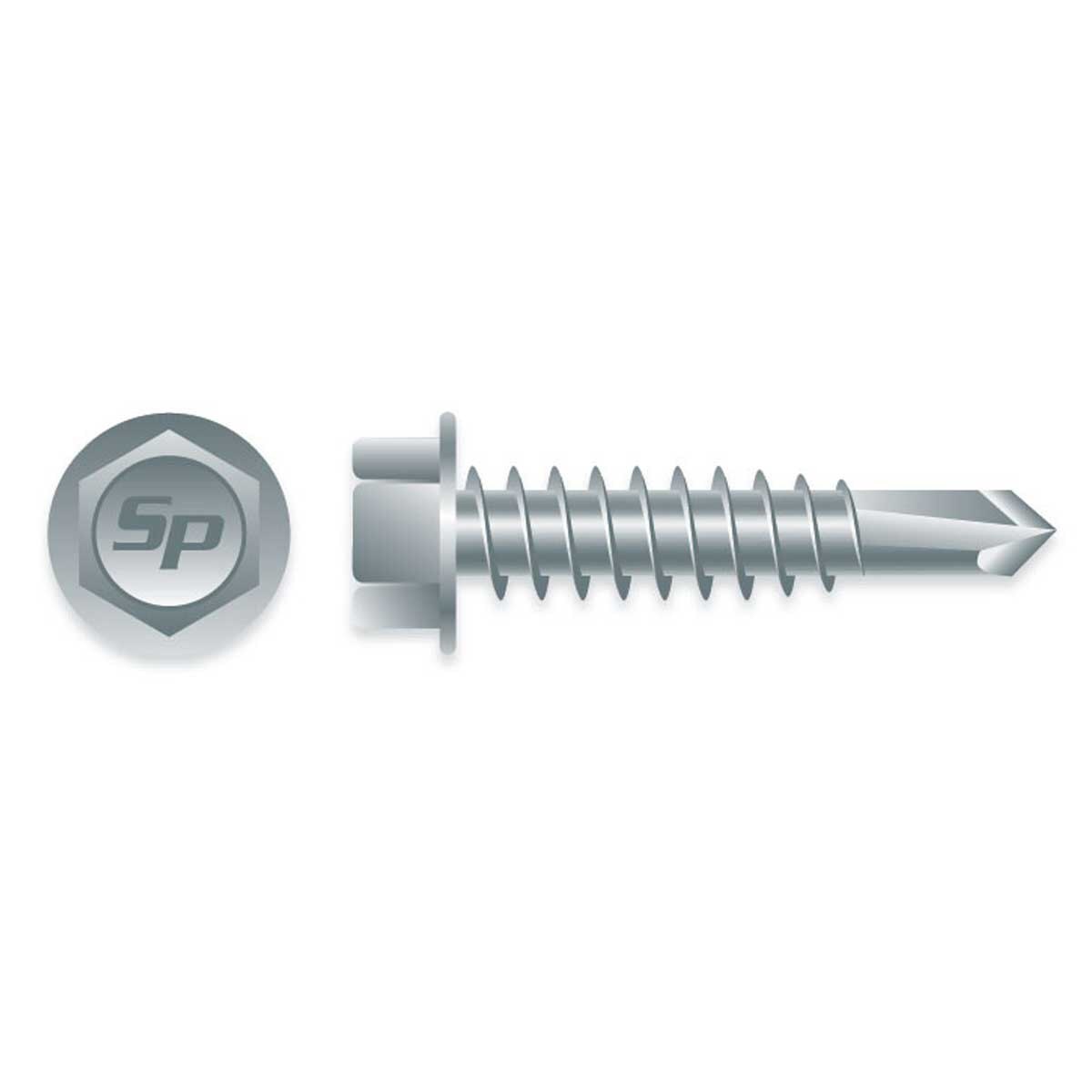

Strong‑Point #10‑16 x 1/2" Hex Washer Head Self‑Drilling Tek Screws Zinc CR3+ Plated
Strong‑Point #10‑16 x 1/2" Hex Washer Head Self‑Drilling Tek screws are engineered for reliable metal‑to‑metal fastening in light‑gauge steel. The #2 drill point cuts smoothly through steel thicknesses ranging from .035" to .110", delivering consistent performance and reduced walking. Zinc CR3+ plating provides basic corrosion resistance suitable for interior applications.
Features:
- #2 self‑drilling point for dependable penetration
- Hex Washer Head for stable driving and controlled seating
- Precision‑formed drill point improves start speed
- Zinc CR3+ plating provides low corrosion resistance
Details:
- Head Type: Hex Washer Head
- Drive Size: 5/16"
- Thread Diameter: #10
- Threads Per Inch: 16
- Length: 1/2"
- Point: #2 Self‑Drilling
- Quantity: 1,000 pcs
- Weight: 5lb
Material Application:
- Metal‑to‑metal fastening
- Drill Capacity: .035" – .110"
- Recommended Drill Speed: 2500 RPM
Specifications:
- ICC‑ES ESR‑3528
- ASTM C1513
- F.I.P.‑1000.7
- SAE J78
- ASTM A510
- ASTM F1941 Zinc CR3+
Zinc CR3+ plating provides a thin protective barrier that helps reduce oxidation of carbon steel. Corrosion resistance is limited and not suitable for ACQ Treated Lumber.
Coating Details:
- Coating: Clear Zinc
- Salt Spray: 24 hrs.
- Kesternich: N/A
- Application: Used indoors for dry, non‑corrosive environments
- Clear Zinc is an electrically applied plating that forms a protective barrier to prevent oxidation of the steel.
