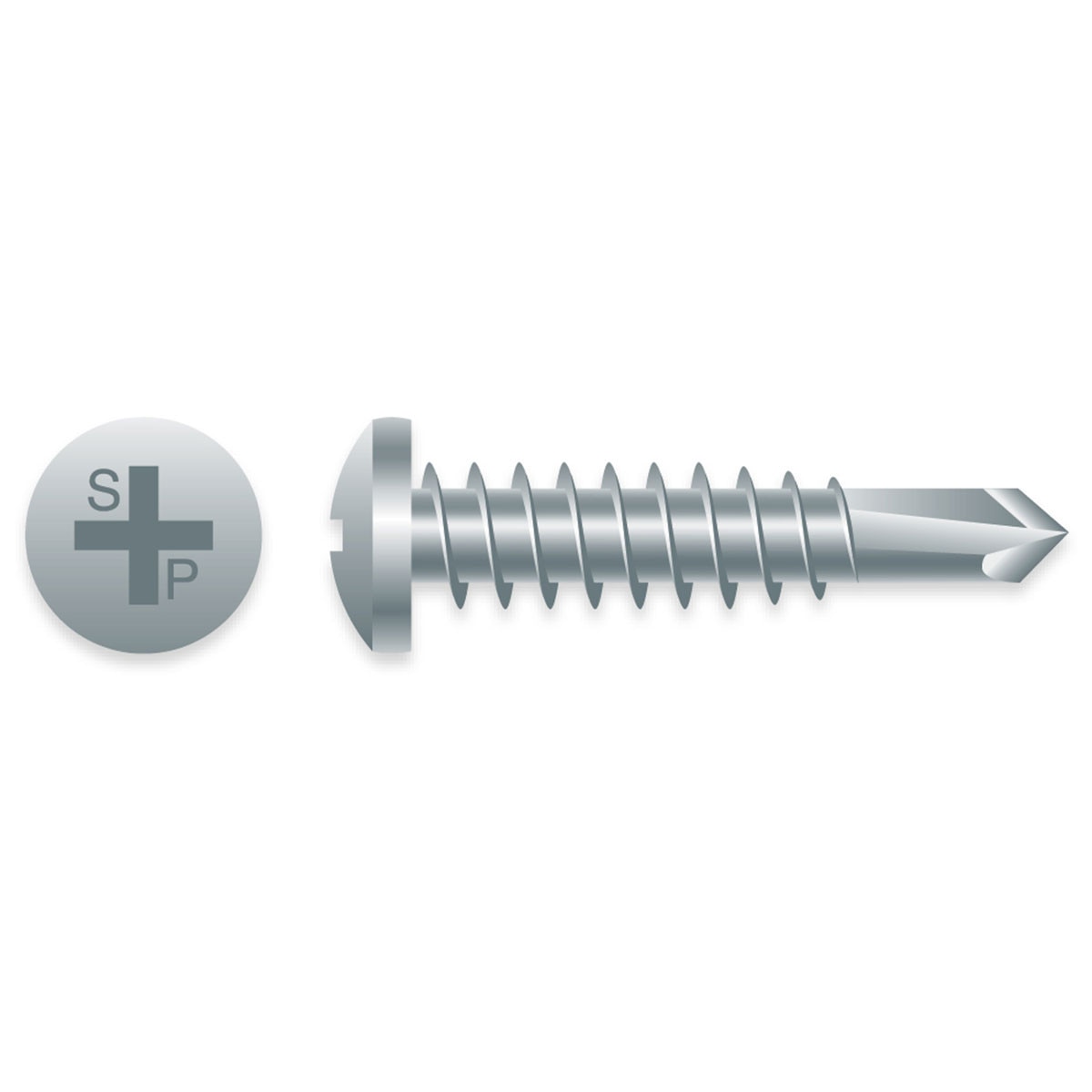

#10 x 1-1/4" PHILLIPS PAN HEAD ZINC PLATED S/D SCREWS 5,000ct | P109
Details
#10-16 x 1-1/4" Phillips Pan Head Tek screws, Zinc Plated
Features:
- Self-Drilling for metal to metal applications
- Low corrosion resistance
Details:
- Head Type: Pan
- Drive Size: #2 Phillips
- Thread Diameter: #10
- Threads Per Inch: 16
- Length: 1-1/4"
- Point: #3 Self-Drilling
- Quantity: 5,000 pcs
- Weight: 41 pounds [approx.]
Material Application:
- Attaches metal to metal
- Drill Capacity: .035 - .176
- Drill Speed: 2500 RPM
Specifications:
- Meets ASTM C 1513 for cold-formed steel framing connections
- Meets F.I.P.-1000.7 for torsional strength & drill speed
- Meets SAE J78 for performance & dimensional specifications
- Meets ASTM A 510 for carbon steel manufacturing
- Meets ASTM F1941 for corrosion resist
- Zinc Plated
Zinc plated is a plating that is applied electrically to fasteners that prevents oxidation of steel by forming a protective barrier. Not recommended for ACQ Treated Lumber.
