#10-24 x 1-1/2" Phillips Wafer Head Self-Drilling Tek Screws Zinc CR3+ Plated 2,000ct | W106
Details

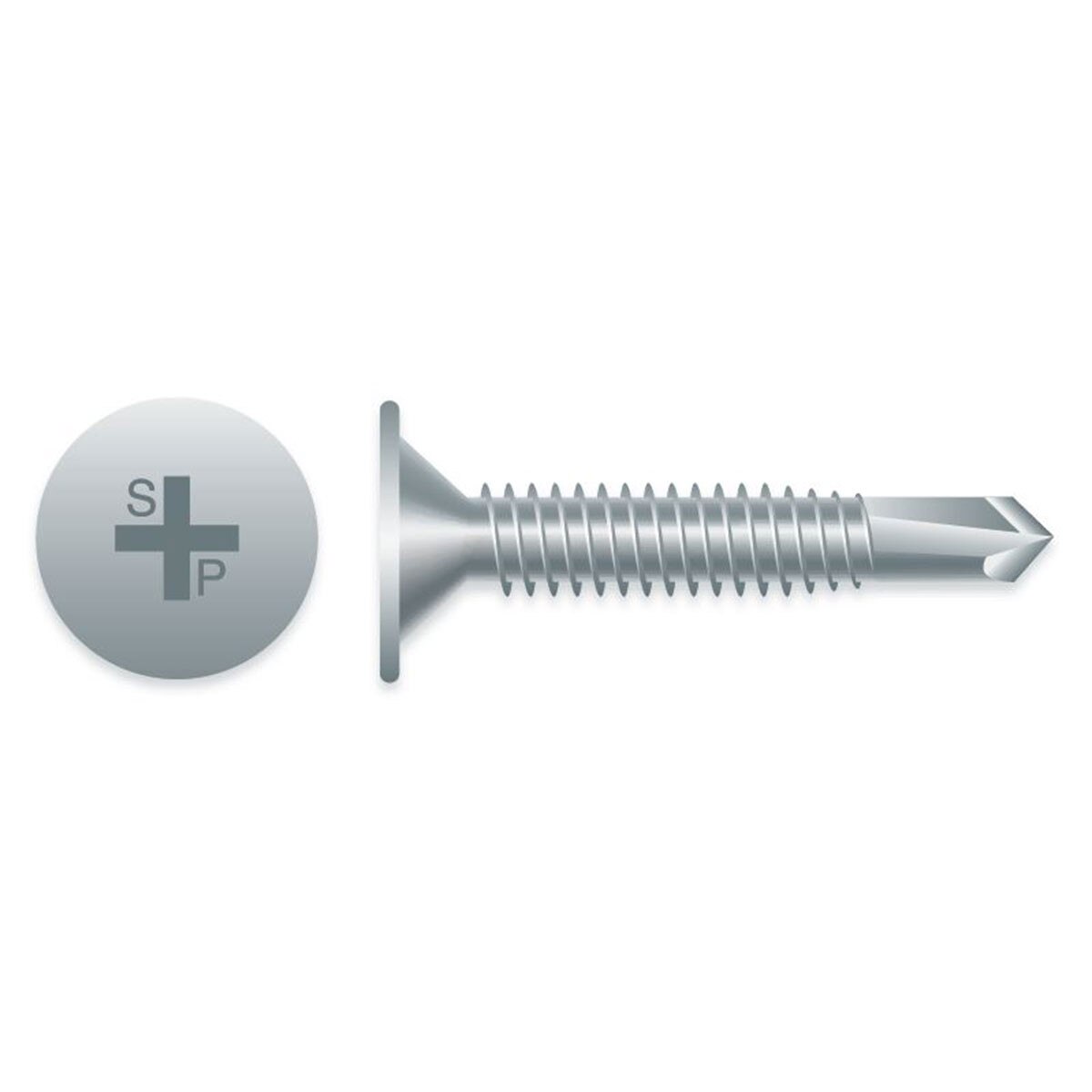

Strong-Point #10-24 x 1-1/2" Phillips Wafer Head Self-Drilling Tek Screws Zinc CR3+ Plated
Strong-Point #10-24 x 1-1/2" Phillips Wafer Head Self-Drilling Tek Screws are designed for attaching plywood to metal. The low-profile wafer head provides a large bearing surface to help prevent pull-through while delivering a clean finished appearance. The #3 self-drilling point delivers fast, consistent drilling through steel thicknesses from .035" to .176". Zinc CR3+ plating provides corrosion protection by forming a protective barrier that helps prevent oxidation.
Features:
- #3 self-drilling point for steel applications
- Wafer head design provides a large bearing surface
- Designed for attaching plywood to metal
- Zinc CR3+ plated for corrosion resistance
- Engineered for dependable drilling and fastening performance
- Precision formed threads for secure holding power
Details:
- Head Type: Wafer Head
- Drive Type: Phillips
- Thread Diameter: #10
- Threads Per Inch: 24
- Length: 1-1/2"
- Point: #3 Self-Drilling
- Quantity: 2,000 pcs
- Weight: 22lb
Material Application:
- Attaches plywood to metal
- Wood Range: 1/4" – 1"
- Drill Capacity: .035" – .176"
- Recommended Drill Speed: 2500 RPM
Specifications:
- Meets ASTM C1513 for cold-formed steel framing connections
- Meets F.I.P.-1000.7 for torsional strength & drill speed
- Meets SAE J78 for performance & dimensional specifications
- Meets ASTM A510 for carbon steel manufacturing
- Meets ASTM F1941 for corrosion resistance
- Zinc CR3+ Plated
Zinc CR3+ plating provides a thin protective barrier that helps reduce oxidation of carbon steel. Corrosion resistance is limited and not suitable for ACQ Treated Lumber.
Coating Details:
- Coating: Clear Zinc
- Salt Spray: 24 hrs.
- Kesternich: N/A
- Application: Used indoors for dry, non-corrosive environments
- Clear Zinc is an electrically applied plating that forms a protective barrier to prevent oxidation of the steel.
