#10-16 x 4" Phillips Bugle Head Self-Drilling Drywall Screws Phosphate Coated 5lb 250/Box | D1040V
Details
Strong-Point #10-16 x 4" Phillips Bugle Head Self-Drilling Drywall Screws Phosphate Coated
Strong-Point #10-16 x 4" Phillips Bugle Head Self-Drilling Drywall Screws are designed for attaching gypsum board, insulation, and wood to metal studs. The bugle head design helps prevent tearing of drywall paper while providing a clean, professional finish. The #2 self-drilling point delivers fast, consistent drilling through steel thicknesses from .035" to .110". Black phosphate coating provides mild corrosion resistance and lubricity to improve installation performance.

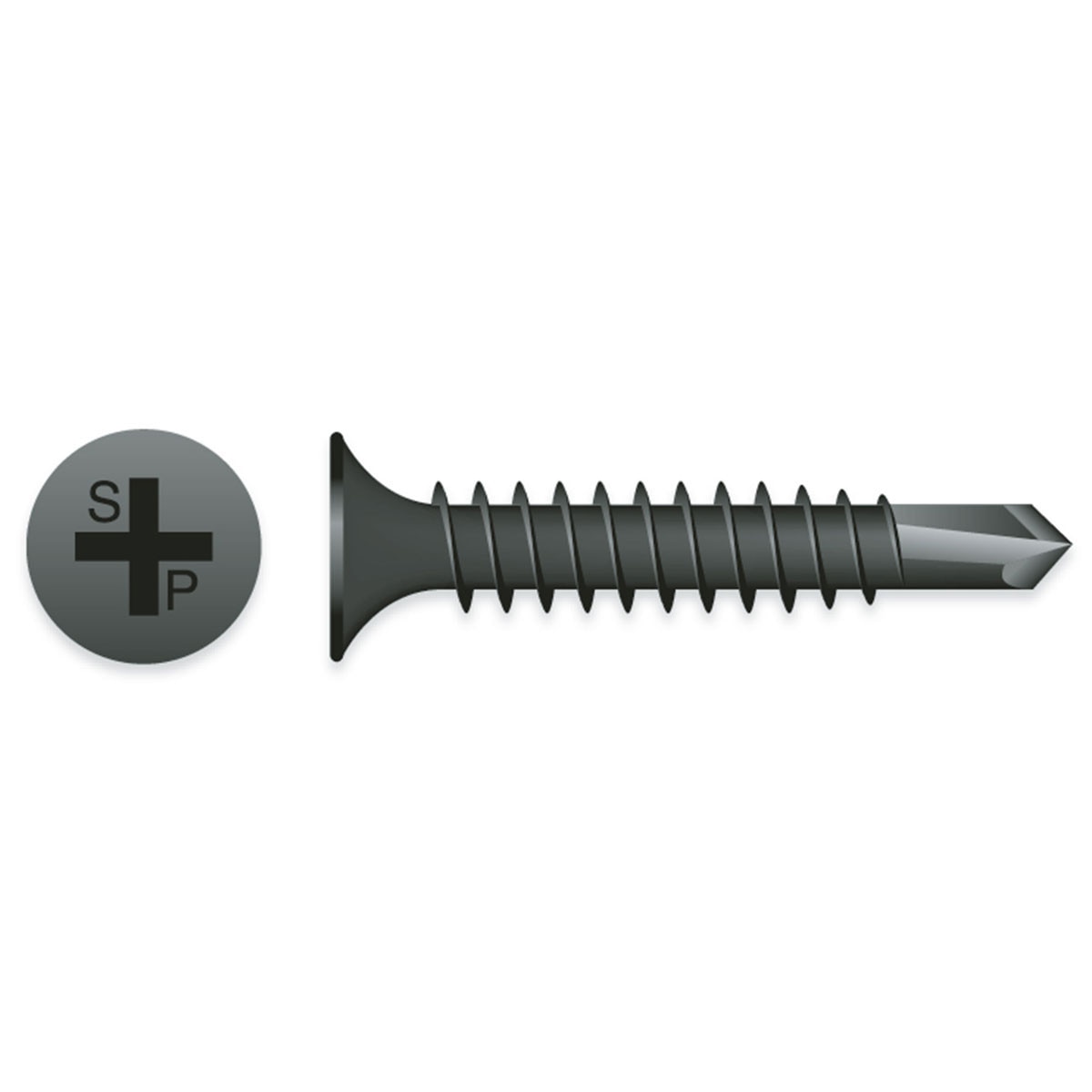

Product image is a likeness. Actual screw is not shown. Some screw lengths beyond 1-5/8" may follow the industry standard 2/3 partial thread length rule. Contact us if Full Thread is required for lengths beyond 1-5/8".
Features:
- #2 self-drilling point for light gauge steel applications
- Bugle head design reduces drywall paper tear-out
- Designed for attaching gypsum board to steel studs
- Suitable for gypsum, insulation, and wood-to-metal applications
- Black phosphate coated for mild corrosion resistance and lubricity
- Engineered for dependable drilling and fastening performance
Details:
- Head Type: Bugle Head
- Drive Type: Phillips
- Thread Diameter: #10
- Threads Per Inch: 16
- Length: 4"
- Point: #2 Self-Drilling
- Quantity: 250 pcs
- Weight: 5lb
Material Application:
- Attaches gypsum, insulation, and wood to metal
- Drill Capacity: .035" – .110"
- Recommended Drill Speed: 2500 RPM
Specifications:
- ICC-ES Evaluation Report: ESR-3528
- Meets ASTM C1513 for cold-formed steel framing connections
- Meets F.I.P.-1000.7 for torsional strength & drill speed
- Meets SAE J78 for performance & dimensional specifications
- Meets ASTM C954 for attaching gypsum board to steel studs
- Black Phosphate Coated
Black phosphate coating is a conversion coating used to add mild corrosion resistance and lubricity. Corrosion resistance is limited and not suitable for ACQ Treated Lumber.
Coating Details:
- Coating: Black Phosphate
- Salt Spray: 48 hrs.
- Kesternich: N/A
- Application: Used indoors for dry, non-corrosive environments
- Black phosphate is a conversion coating used to add mild corrosion resistance and lubricity.
