1/4" x 3" HWH STRONG SHIELD COATED #5 POINT SELF-DRILLING SCREWS w/BONDED WASHER 1M Box | HA543C
Details

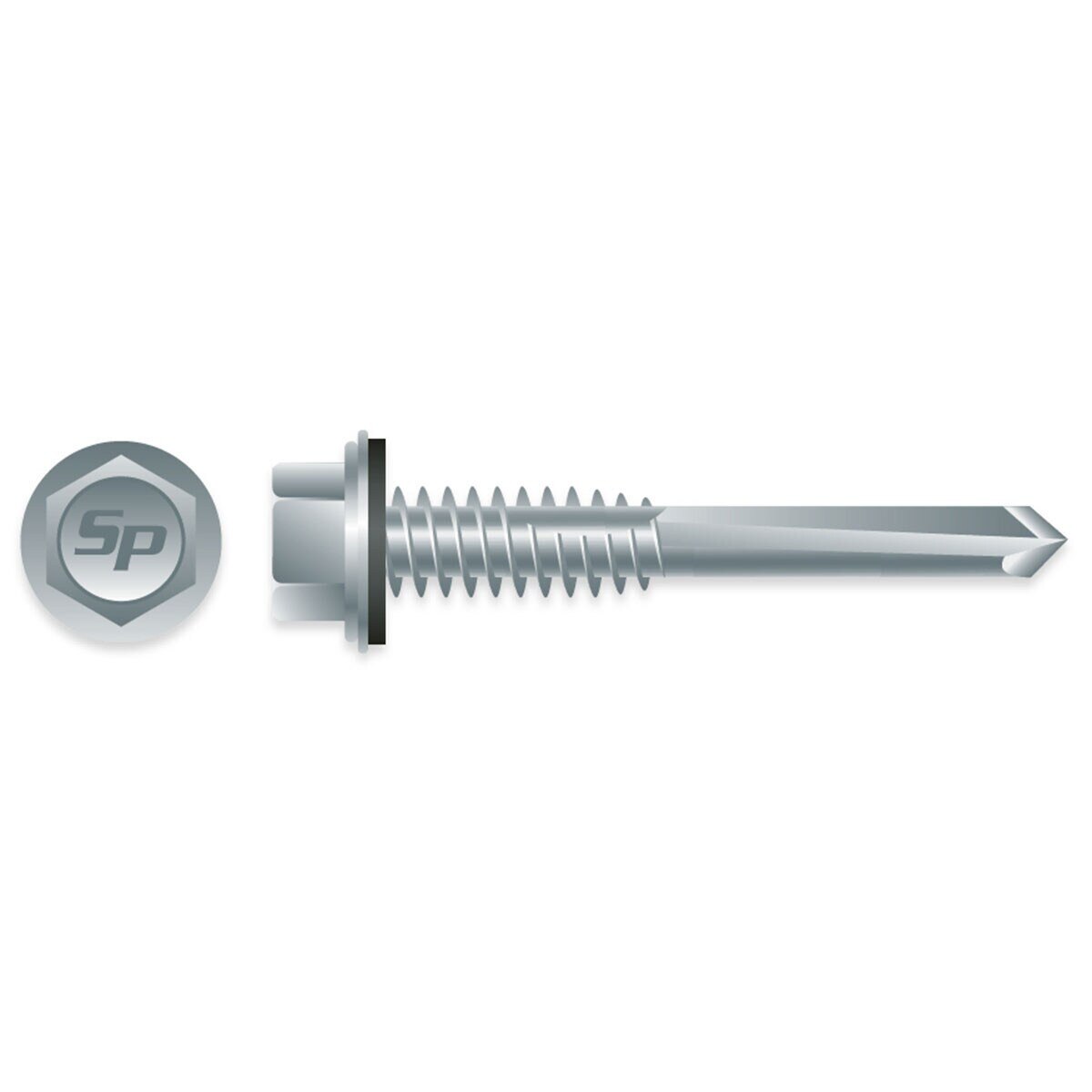

1/4-20 x 3" Unslotted Indented Hex Washer Head Tek 5 screws w/Bonded Washer, STRONG-SHIELD Coated
Features:
- Pre-assembled Bonded NEO-EPDM metal backed washer creates leak proof seal.
- Self-Drilling for metal to metal applications
- Hex washer head provides excellent driving stability
- Precision cutting drill point delivers high performance with less physical effort.
- Strong Shield Coating exceeds 1,000/hr. salt spray resistance
- Rust/Acid Rain Protection
- ACQ Compatible
Details:
- Bonded Washer: 9/16" O.D.
- Head Type: Unslotted Indented Hex Washer Head
- Drive Size: 3/8"
- Thread Diameter: 1/4
- Threads Per Inch: 20
- Length: 3"
- Point: #5 Self-Drilling
- Quantity: 1,000 pcs
- Weight: 30 pounds [approx.]
Specifications:
- Bonded washer creates leak proof seal
- Meets ASTM C 1513 for cold-formed steel framing connections
- Meets F.I.P.-1000.7 for torsional strength & drill speed
- Meets SAE J78 for performance & dimensional specifications
- Exceeds 1,000/hr. salt spray resistance
- Strong Shield Coated
Four Times the Protection! These Strong-Shield coated fasteners have a four-layer protective barrier that prevents fastener corrosion. A metallic zinc layer, a passivation layer, a functional nano-coating layer, that is used as a sealer, and a high-grade anticorrosion chemical conversion film. Rated at 1,000/hrs salt spray. Strong Shield Coating protects against Rust and Acid Rain and is compatible with ACQ treated lumber.
