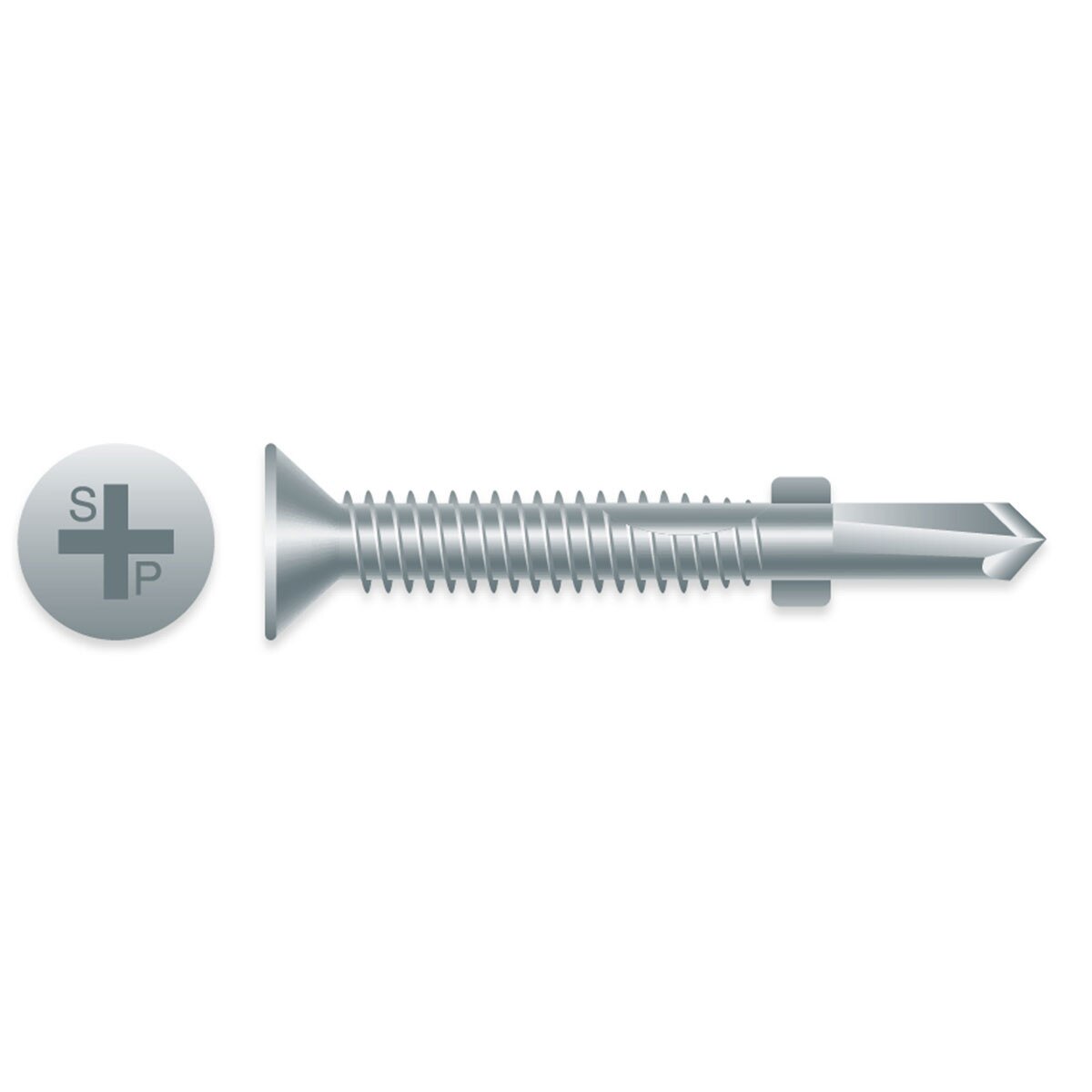

1/4" x 3-3/4" PHILLIPS FLAT HEAD ZINC PLATED S/D REAMER w/WINGS 500ct | R334
Details
1/4-20 x 3-3/4" Phillips Flat Head Tek Reamer with Wings, Zinc Plated, TEK 4
Features:
- Self-Drilling for wood to metal applications
- Used for attaching lumber or headers to steel
- Wings ream hole in wood preventing “jacking action”
- Low corrosion resistance
Details:
- Head Type: Flat
- Drive Size: #3 Phillips
- Thread Diameter: 1/4"
- Threads Per Inch: 20
- Length: 3-3/4"
- Point: #4 Self-Drilling
- Quantity: 500 pcs
- Weight: 20 pounds [approx.]
Material Application:
- Attaches plywood to metal
- Wood Range: 3/4” - 2-3/4”
- Drill Capacity: .110 - .375
- Drill Speed: 1750 RPM
Specifications:
- Meets ASTM C 1513 for cold-formed steel framing connections
- Meets F.I.P.-1000.7 for torsional strength & drill speed
- Meets SAE J78 for performance & dimensional specifications
- Meets ASTM A 510 for carbon steel manufacturing
- Zinc Plated
Zinc plated is a plating that is applied electrically to fasteners that prevents oxidation of steel by forming a protective barrier. Not recommended for ACQ Treated Lumber.
