1/4-20 x 3-1/4" Phillips Flat Head Reamer w/Wings Self-Drilling Tek Screws Zinc CR3+ Plated 5lb 150/Box | R314V
Details

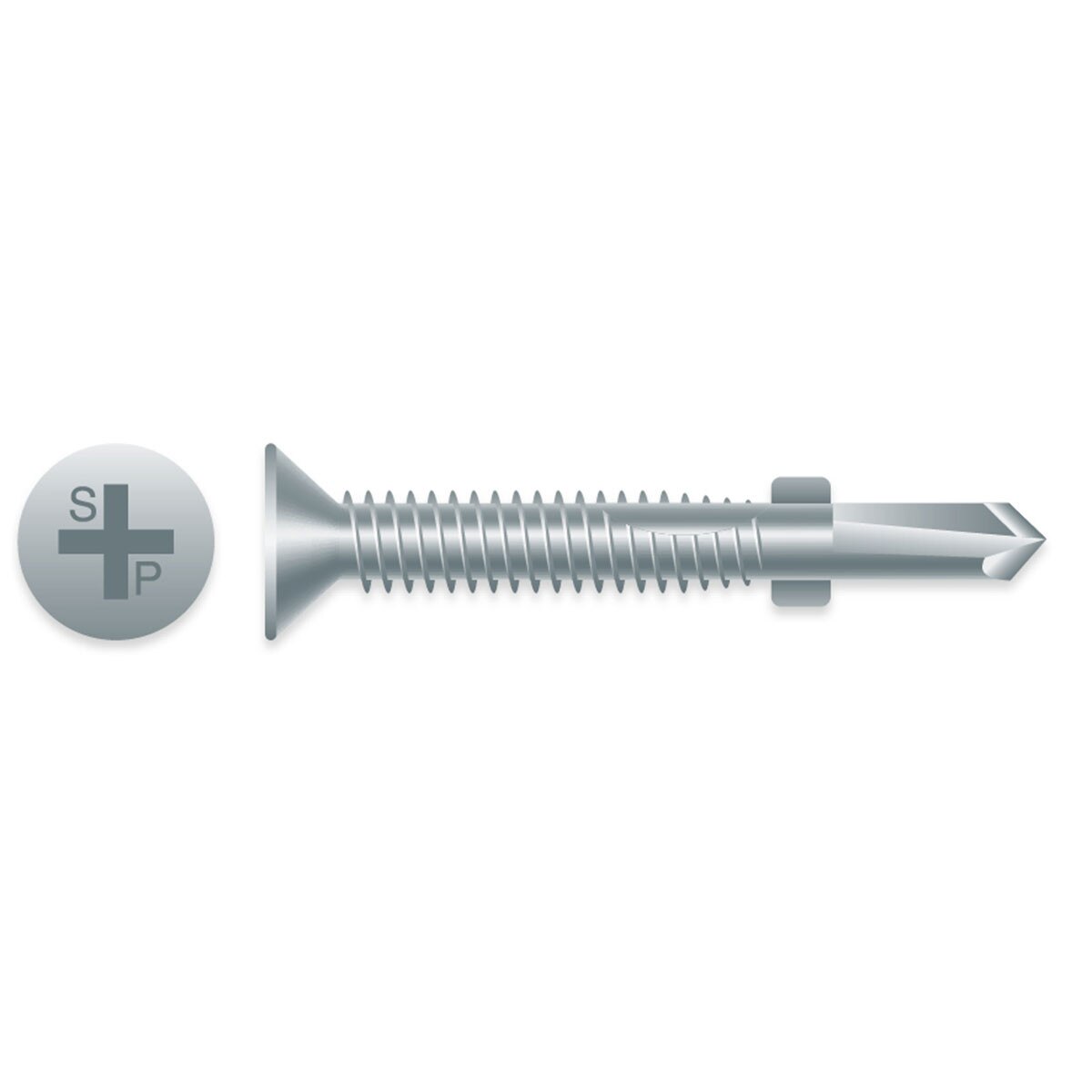

Strong-Point 1/4-20 x 3-1/4" Phillips Flat Head Reamer w/Wings Self-Drilling Tek Screws Zinc CR3+ Plated
Strong-Point 1/4-20 x 3-1/4" Phillips Flat Head Reamer w/Wings Self-Drilling Tek Screws are designed for attaching lumber or headers to steel. The reamer wings enlarge the hole in the wood before contacting the steel substrate, preventing jacking action and allowing the materials to pull together tightly during installation. The flat head design provides a flush finish in countersunk holes for a clean, professional appearance. The #4 self-drilling point delivers fast, consistent drilling through steel thicknesses from .110" to .375". Zinc CR3+ plating provides corrosion protection by forming a protective barrier that helps prevent oxidation.
Features:
- #4 self-drilling point for heavier steel applications
- Reamer wings enlarge the hole in wood to prevent jacking action
- Designed for attaching lumber or headers to steel
- Flat head design provides a flush finish in countersunk holes
- Suitable for wood thicknesses from 3/4" to 2-1/4"
- Zinc CR3+ plated for corrosion resistance
Details:
- Head Type: Flat Head Reamer w/Wings
- Drive Type: Phillips
- Thread Diameter: 1/4"
- Threads Per Inch: 20
- Length: 3-1/4"
- Point: #4 Self-Drilling
- Wood Range: 3/4" - 2-1/4"
- Quantity: 150 pcs
- Weight: 5lb
Material Application:
- Attaches wood to metal
- Used for attaching lumber or headers to steel
- Drill Capacity: .110" – .375"
- Recommended Drill Speed: 1500 RPM
Specifications:
- Meets ASTM C1513 for cold-formed steel framing connections
- Meets F.I.P.-1000.7 for torsional strength & drill speed
- Meets SAE J78 for performance & dimensional specifications
- Meets ASTM A510 for carbon steel manufacturing
- Wings ream hole in wood preventing jacking action
- Used for attaching lumber or headers to steel
- Zinc CR3+ Plated
Zinc CR3+ plating provides a thin protective barrier that helps reduce oxidation of carbon steel. Corrosion resistance is limited and not suitable for ACQ Treated Lumber.
Coating Details:
- Coating: Clear Zinc
- Salt Spray: 24 hrs.
- Kesternich: N/A
- Application: Used indoors for dry, non-corrosive environments
- Clear Zinc is an electrically applied plating that forms a protective barrier to prevent oxidation of the steel.
